DED7913
5902628791306

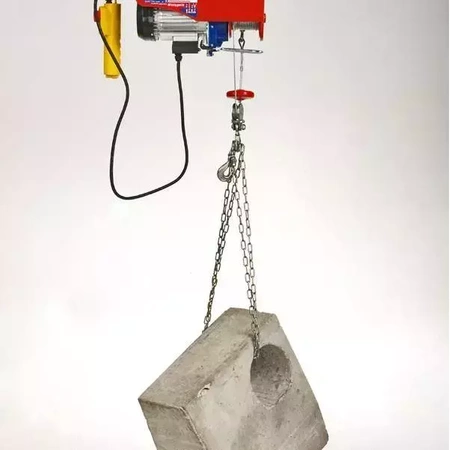

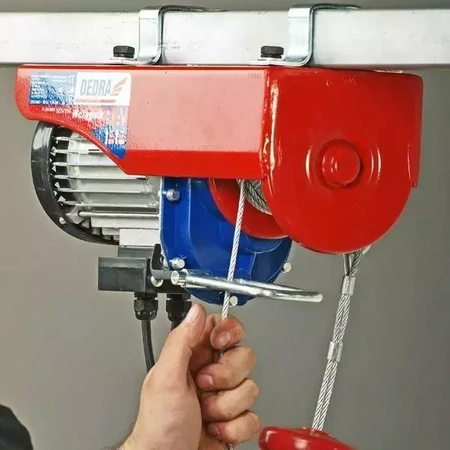

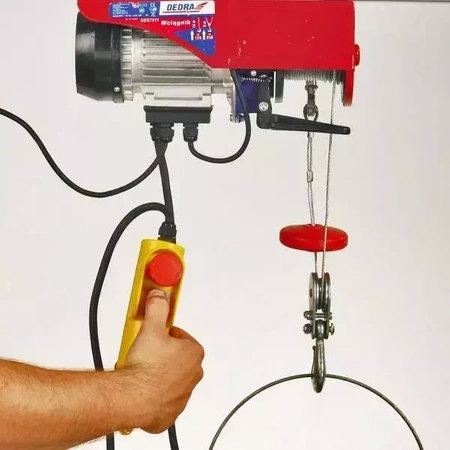

Electric cable winch 1000W,200 kg/cable 12m or 400kg/cable 6m
The DED7913 electric cable winch is designed to lift objects vertically. The objects are hoisted by a hook permanently attached to the rope. It is equipped with an automatic switch that prevents the rope from tearing after the load is pulled. The winch can lift up to 6m with a maximum load of 400 kg or 12m with a load of 200 kg. Designed to be mounted on an extension arm.
Features:
- Automatic cable tear protection switch
- Adapted for extension arm mounting
Technical data:
- Power: 1000 W
- Voltage: 220-240 V, 50 Hz
- Max. load: 200 kg
- Max. load with pulley block: 400 kg
- Lifting speed: 8 m/min
- Lifting speed with pulley block: 4 m/min
- Max. lifting height: 12 m
- Max. lifting height with pulley block: 6 m
- Diameter of winch cable: 3,5 mm
- Length of winch cable: 12, 5 m
- Weight: 17.5 kg
Included:
- Cable winch
- Pulley block with hook
- Mounting clamps
- Screws for clamp mounting
Brand
Symbol
DED7913
Producer code
5902628791306
Warranty
Symbol
DED7913
Length of winch cable [m]
12,5
Maximum lifting height [m].
12
Max. lifting height with pulley [m]
6
Maximum load [kg]
200
Maximum load with shear block [kg]
400
Power [W].
1000
Voltage [V].
230
Lifting speed [m/min]
8
Lifting speed with lifting block [m/min]
4
Type
Electric winch
Series
DEDRA
Weight [kg].
17,5
Power supply
Mains
Attachments
