DED7911
5902628791108

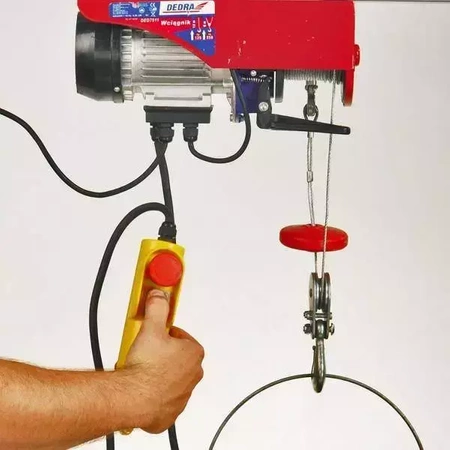

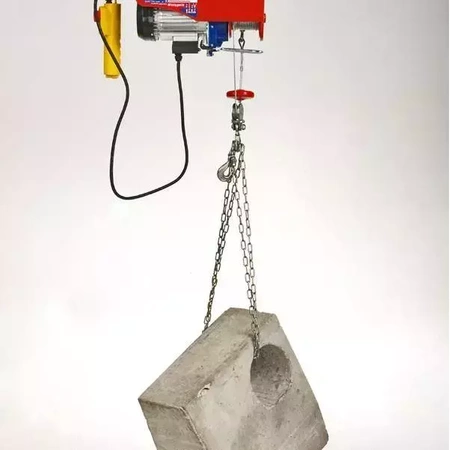

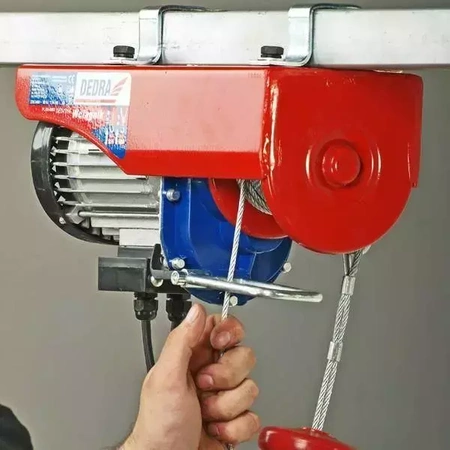

Electric cable winchCable winch DED7911 125/250kg, 550W
The DED7911 electric winch is designed to lift objects vertically. The objects are hoisted using a hook that is permanently attached to the rope. It is equipped with an automatic switch that prevents the rope from tearing after the load has been pulled. The winch can lift up to 6m above the ground with a maximum load of 250 kg or 12m with a load of 125 kg. Designed for extension arm mounting.
Features:
- Automatic cable brake protection switch
- Adapted for extension arm mounting
Technical data
- Power: 550 W
- Voltage: 220-240 V, 50 Hz
- Max. load: 125 kg
- Max. load with pulley block: 250 kg
- Lifting speed: 8 m/min
- Lifting speed with pulley block: 4m/min
- Max. lifting height: 12m
- Max. lifting height with pulley block: 6m
- Diameter of winch cable: 3mm
- Length of winch cable: 12,5m
- Weight: 11.5 kg
Included:
- Cable winch
- Pulley block with hook
- Mounting clamps
- Screws for mounting the clamps
Brand
Symbol
DED7911
Producer code
5902628791108
Warranty
Symbol
DED7911
Length of winch cable [m]
12,5
Maximum lifting height [m].
12
Max. lifting height with pulley [m]
6
Maximum load [kg]
125
Maximum load with shear block [kg]
250
Power [W].
550
Voltage [V].
230
Lifting speed [m/min]
8
Lifting speed with lifting block [m/min]
4
Type
Electric winch
Series
DEDRA
Weight [kg].
11,5
Power supply
Mains
