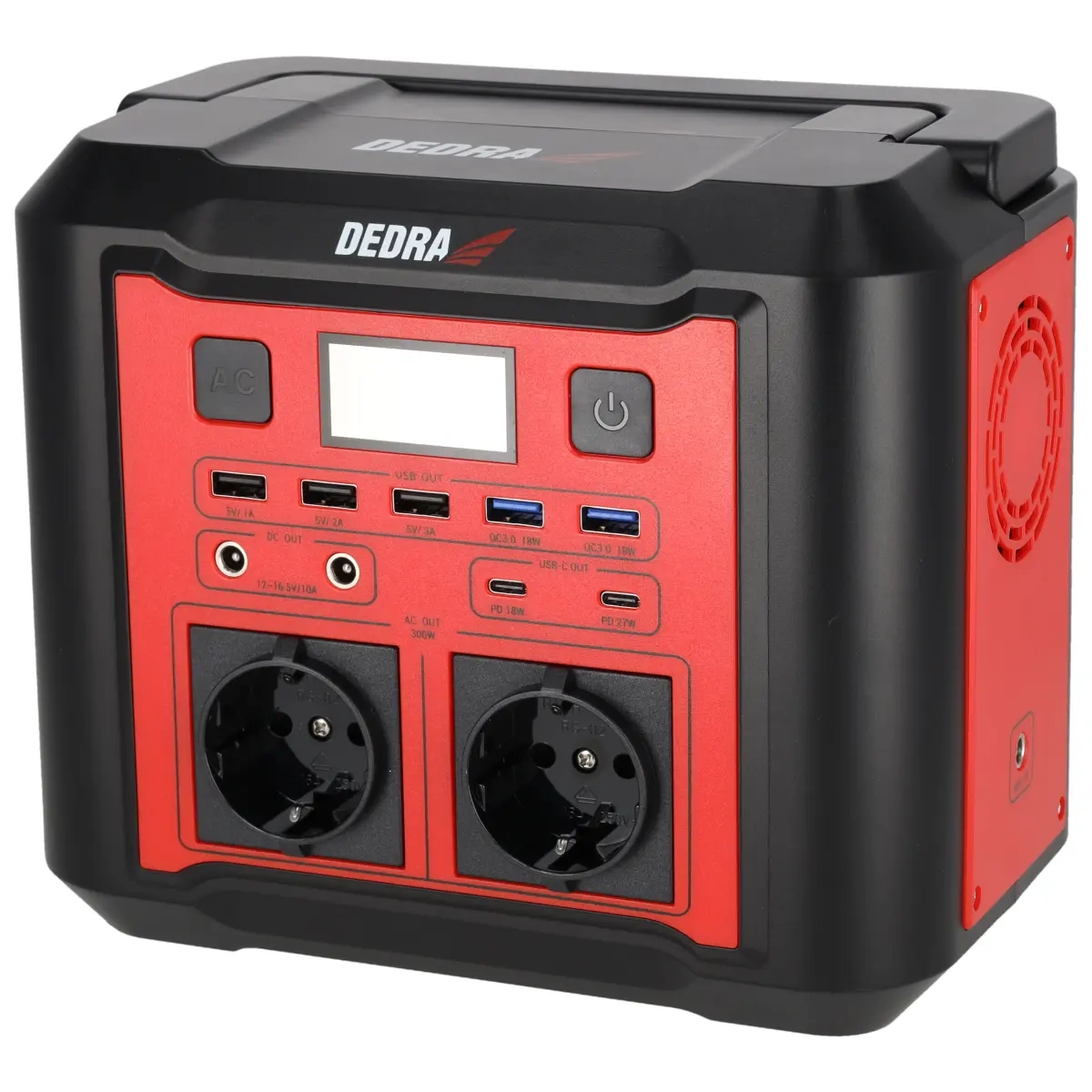

Power station 300/500W, DEDRA DEZS0300

The DEDRA DEZS0300 power station is a device that gives the user possibility to power various types of electrical devices.

Thanks to its large capacity, the user can power devices such as a smartphone, camera, laptop or TV. This kind of power station comes in handy during longer trips or on various types of excursions such as camping or outdoor expeditions.

Small size and compact design of the station, ensure ease of transport and storage, while a number of safety features (including fire protection) used in the product ensure maximum safety of use.

The DEDRA DEZS0300 power station is equipped with the ability to operate an external photovoltaic panel [to be bought separately], used to recharge the device in outdoor conditions, that is, without access to the mains. In addition, the set includes a car charger, so this form of charging is also possible, especially during a long trip.

Note: Power stations and generator sets are made in accordance with EU Directives and standards, which specify that the products are made as separated systems. Such execution of the product ensures adequate protection against electric shock of the user and is commonly used in devices for emergency power supply.

Some consumer devices, due to their design and protection of electronics (e.g., some gas boilers), require the use of a power supply system grounded in the same way as it is for "power from the socket", i.e., from the power grid. In this case, it will be necessary to make the power connection individually by an authorized installer.

Features of DEDRA DEZS0300 power station:

• Sinusoidal output voltage waveform
• Compatible with all mains devices up to 300W
• Series of security features:

  • overcharge protection

  • against voltage drop
  • anti-short-circuit
  • overload protection

  • thermal protection

• Compact design
• Lightweight device
• LED lighting [4W LED Continuous/Flashing/SOS]
• Included:
  • mains charger - 1 pc
  • car charger with 12V cigarette lighter socket

Technical data of DEDRA DEZS0300 power station:

• Power rating: 300W
• Peak power: 500W
• Built-in battery type: Li-Ion
• Battery capacity: 296Wh/20Ah/14.8V
• Battery charging parameters: DC19V/3A
• Parameters for charging by photovoltaic panel: MPPT, 18 V~22V/3 A Max
• Time to fully charge: DC:7~8 hours
• USB output ports:

  • 1xUSB 5V [1A]
  • 1xUSB 5V [2A]
  • 1xUSB 5V [3A]
  • 2xQC 3.0 (5-12V 3A 18W)
• DC output ports: 2x12 -16.5V / 10A
• USB-C output ports:

  • 1x18W [5-12V 3A]
  • 1x27W [5-12V 3A]
• Operating temperature: -10℃ -40℃
• Weight: 2.85kg

Included:

• Power station
• Mains charger (1 pc)
• Car charger with 12V cigarette lighter socket (1 pc)
