DED7827
5902628782700

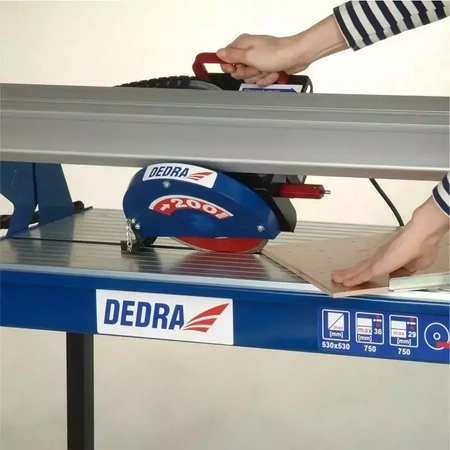

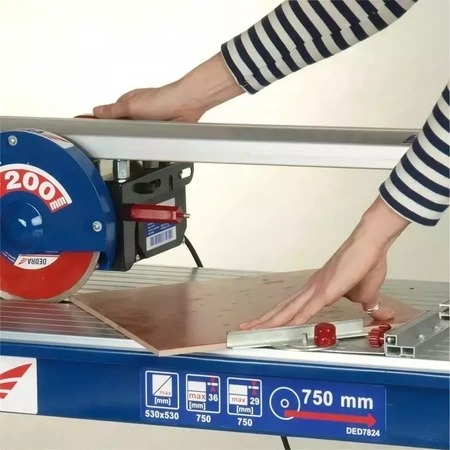

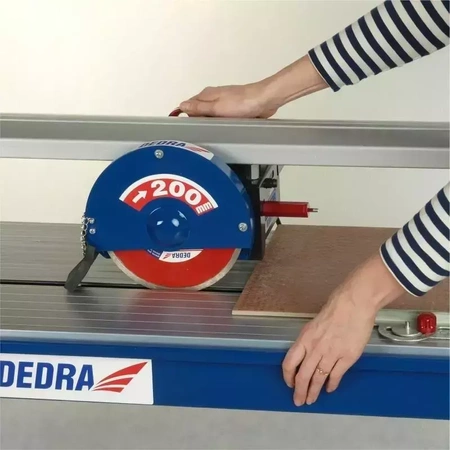

Tilecutting machine 800W
- Work surface 890 x394mm allowing a maximum cutting length of 650mm with a material thickness of 36mm
- Max. cutting length at 45 degrees angle 650mm at 29mm material thickness
Technical data:
- Motor power 800W
- Power supply 230v/50 Hz
- Disc diameter 200/25, 4 mm
- Rotational speed 2950 rpm
- Weight 30 kg
- Cutting machine with workbench
- Diamond blade 200mm
Brand
Symbol
DED7827
Producer code
5902628782700
Warranty
Symbol
DED7827
Water cooling
YES
Maximum cutting length at an angle of 45° [mm]
650
Maximum cutting length at an angle of 90° [mm]
650
Maximum cutting thickness [mm]
36
Maximum thickness of cutting at an angle of 45° [mm]
29
Maximum thickness of cutting at an angle of 90° [mm].
36
Maximum speed [rpm]
2950
Power [W].
800
Voltage [V].
230
Application
Tiling, stoneware
Type
Electric tile machine
Series
DEDRA
Disc bore diameter [mm]
25,4
Disc diameter [mm]
200
Tabletop dimensions [mm]
890x394
Power supply
Mains
Attachments
