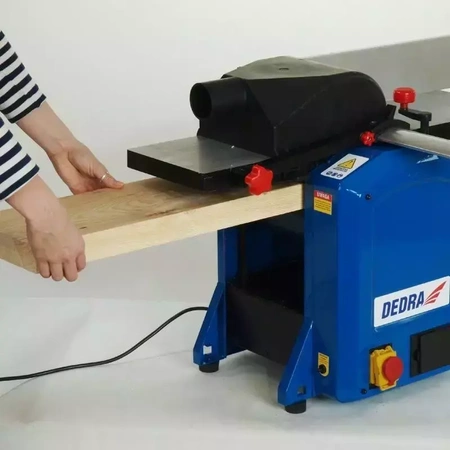

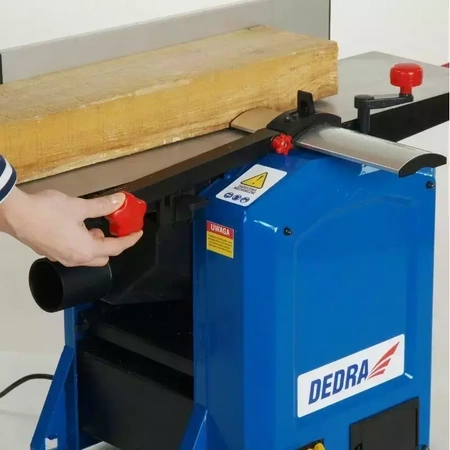

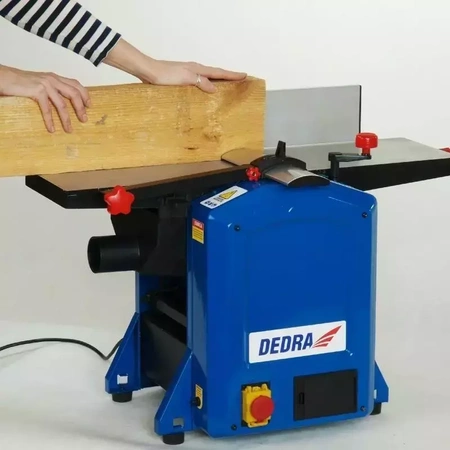

Jointer/planer 1400W

The DED7813 planer is a machine with which we can carry out planing and surface planning of flat workpieces. The machine is equipped with a chip extractor which ensures smooth operation without the possibility of blocking the machine blade with chips during work. The thickness of the collected material can be adjusted between 0.5 and 2 mm. In addition, the machine is equipped with an overload switch that automatically switch off the device in the event of an overload.

Features:

• Regulation of the thickness
• Chip extraction
• Overload switch
• Robust guide bar
• Adjustable guide bar

Technical data:

• Voltage: 230V
• Frequency: 50 Hz
• Motor power: 1400 W
• Rotational speed: 8500 rpm
• Number of blades: 2
• Weight: 32 kg

Technical data of the planer:

• Maximum planning width: 204 mm
• Maximum thickness of trim: 2mm
• Dimension of the planer: 540 x210 mm
• Range of tilt of the guide days: 90-130 degrees
• Table size: 745 x210 mm

Technical data of the thicknesser:

• Maximum planning width:204 mm
• Maximum material height: 210 mm
• Maximum thickness of trim: 2mm

Completion:

• Longitudinal guide
• Blade guard with chip extraction nozzle
