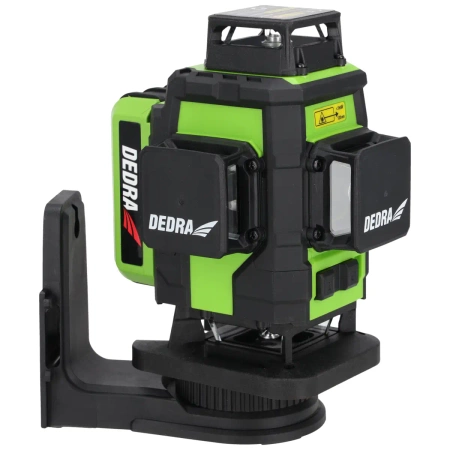

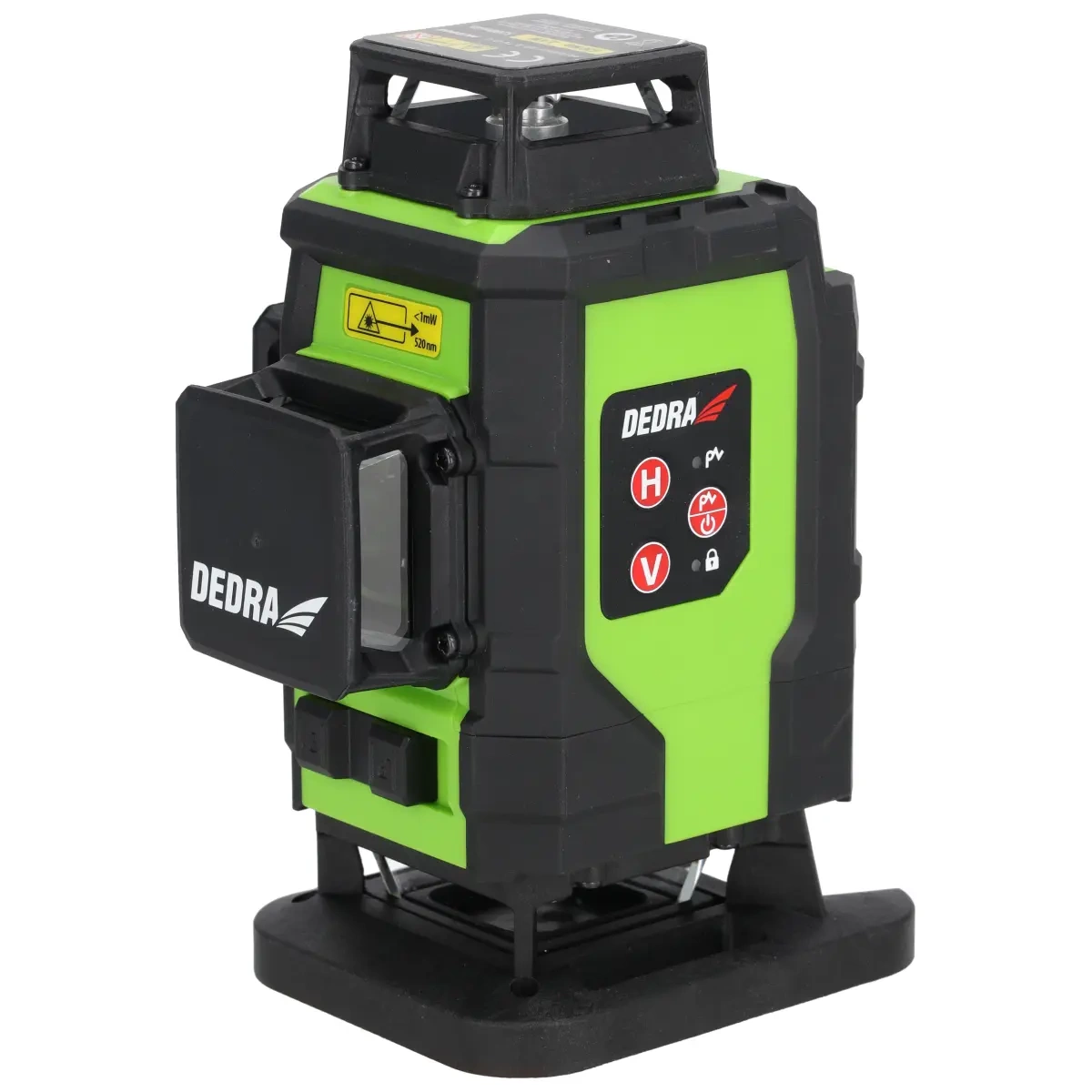

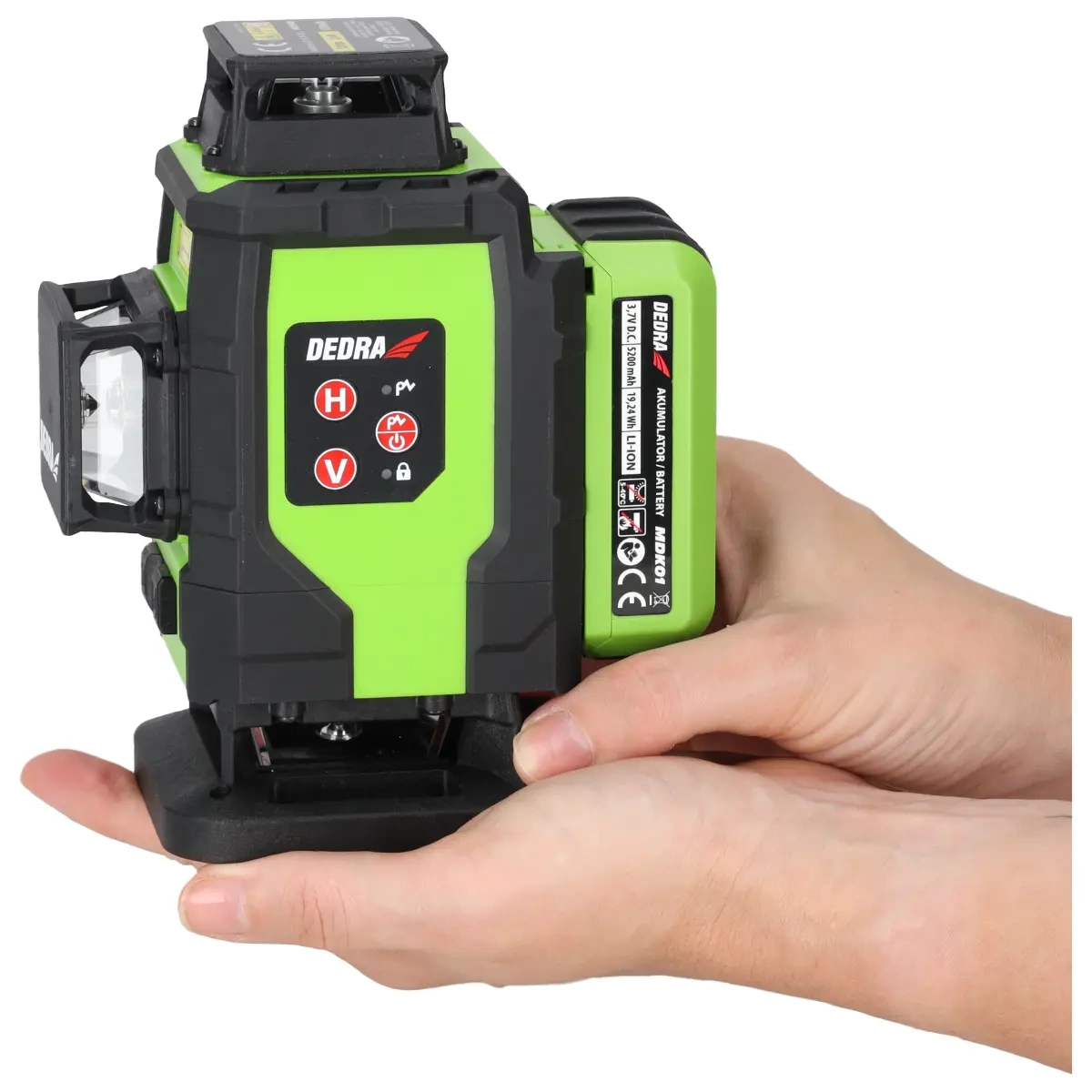

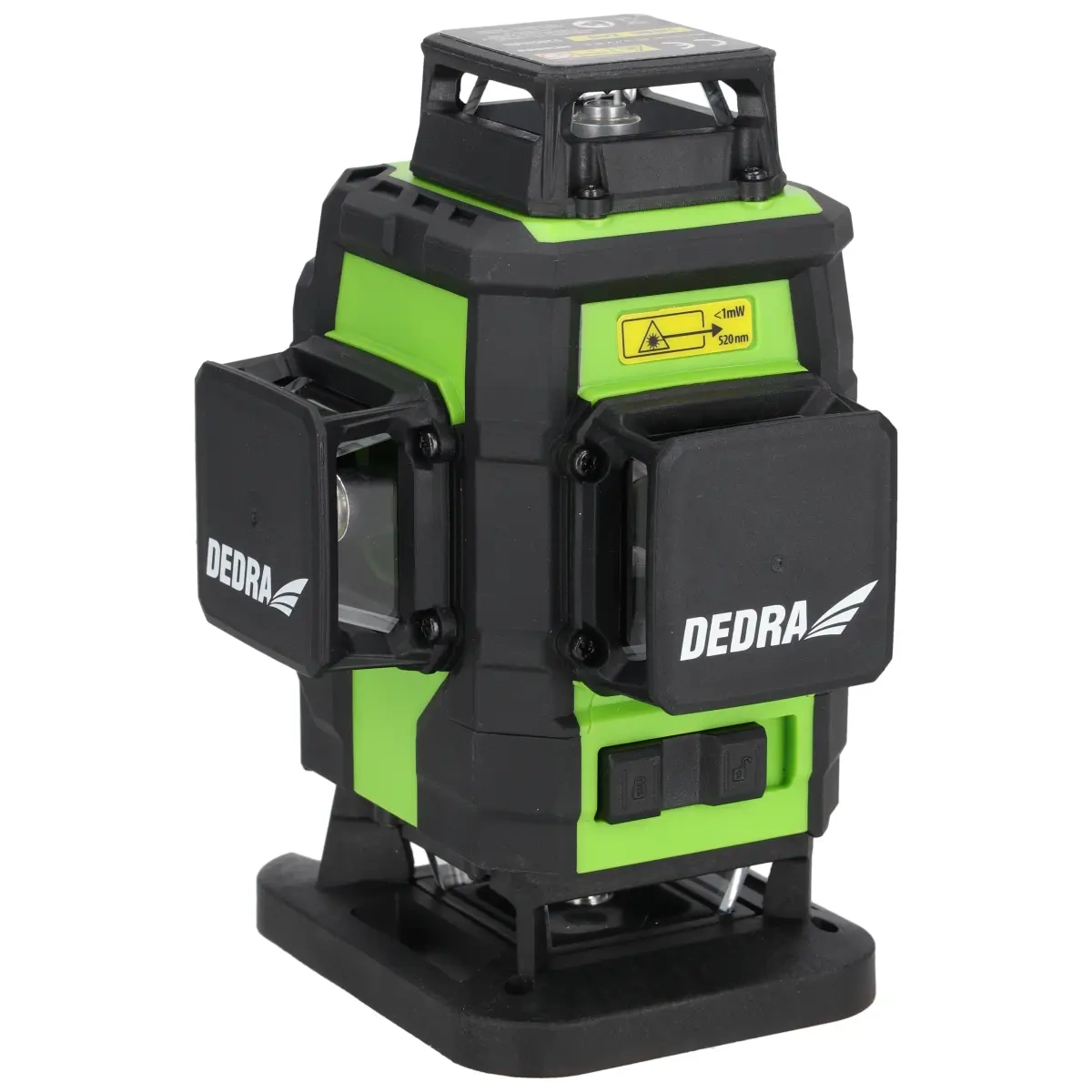

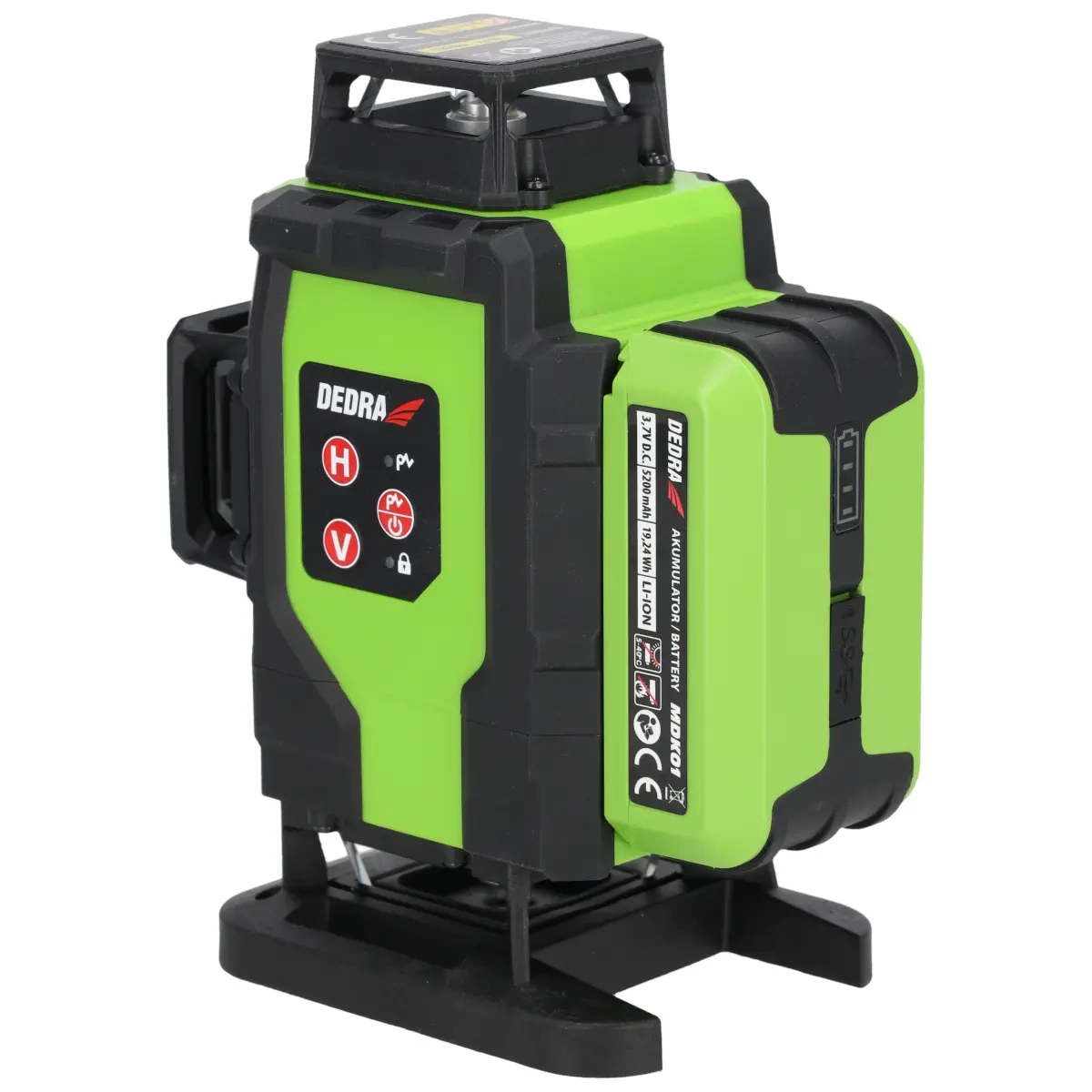

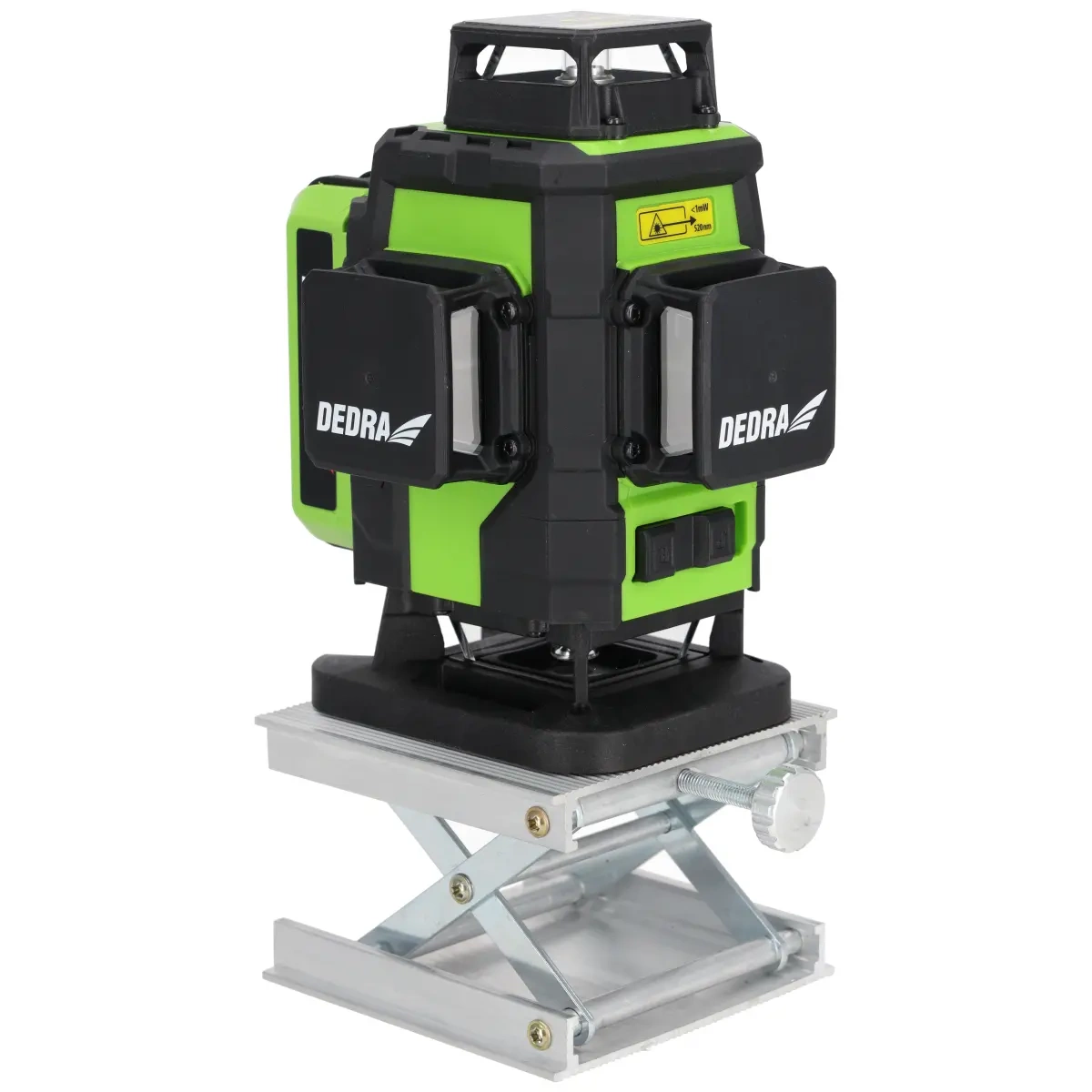

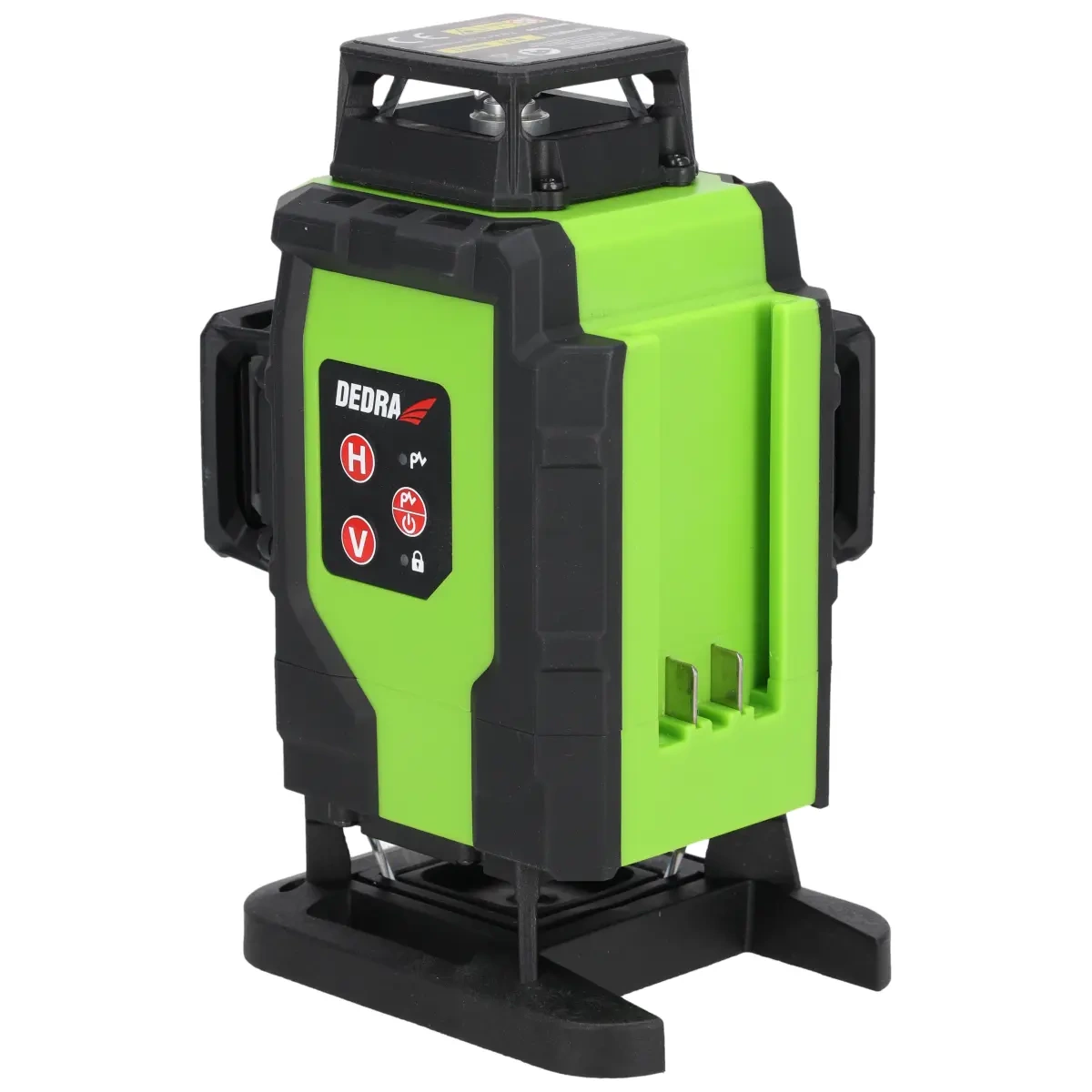

Laser, level 4D DEDRA MC0908, green beam, Sharp diodes

The Laser 4D DEDRA MC0908 is a versatile tool that can be used for both interior finishing work and outdoor projects.

It works great for structure assembly, tile laying, suspended ceiling installation, or setting furniture perfectly level. With the ability to generate multiple planes and laser crosses, it allows precise reference line marking in various planes simultaneously, significantly speeding up and easing the work.

The device is equipped with a clear green laser beam that is easily visible even in challenging lighting conditions. Robust construction and a high protection class make the tool resistant to dust and moisture, making it suitable for demanding construction environments. Wide-range self-leveling eliminates the need for manual adjustment, and precise Sharp-brand diodes ensure accurate line reproduction.

The package includes accessories that allow stable mounting of the device and convenient work in different positions. A magnetic holder, metal base, and target plate provide versatility in setup and adaptation to various measuring conditions. The high-capacity rechargeable battery allows long working times without frequent charging, and the practical carrying case facilitates storage and transport.

Features of the 3D Laser DEDRA MC0908:

• Green laser beam – clearly visible even in bright daylight
• High-quality Sharp diodes – ensure stable and clear lines
• Four full planes (4D) – enable simultaneous marking of multiple vertical and horizontal directions
• 360° full rotation image – lines visible around the entire work area
• Auto-level lock system – allows setting lines at a chosen angle, facilitating slope marking
• Automatic leveling – eliminates the need for manual adjustment
• High-capacity battery – allows long use without frequent charging
• Pulse function – enables the use of a detector, increasing working range
• Mounting capability on tripods – greater setup flexibility
• Carrying case included – protects the device and accessories during transport

Technical specifications of the 3D Laser DEDRA MC0908:

• Device power: 2.4W
• Laser range: 30 m (50 m with detector)
• Beam color: green
• Laser class: II
• Diodes: Japan Sharp [4 pcs]
• Planes: 2x horizontal H, 2x vertical V, 90° cross 4D
• Mounting thread: 1/4", 5/8" in PV9 holder
• Power supply type: 3.7 Li-on battery (5200mAh)
• Self-leveling range: ±4°
• Accuracy: ±3 mm/10 m
• Wavelength: 520 nm
• Operating time: 5.5 - 11 hours
• Temperature
• operation: -10°C to +50°C
• storage: -20°C to +70°C
• Protection class: IP54

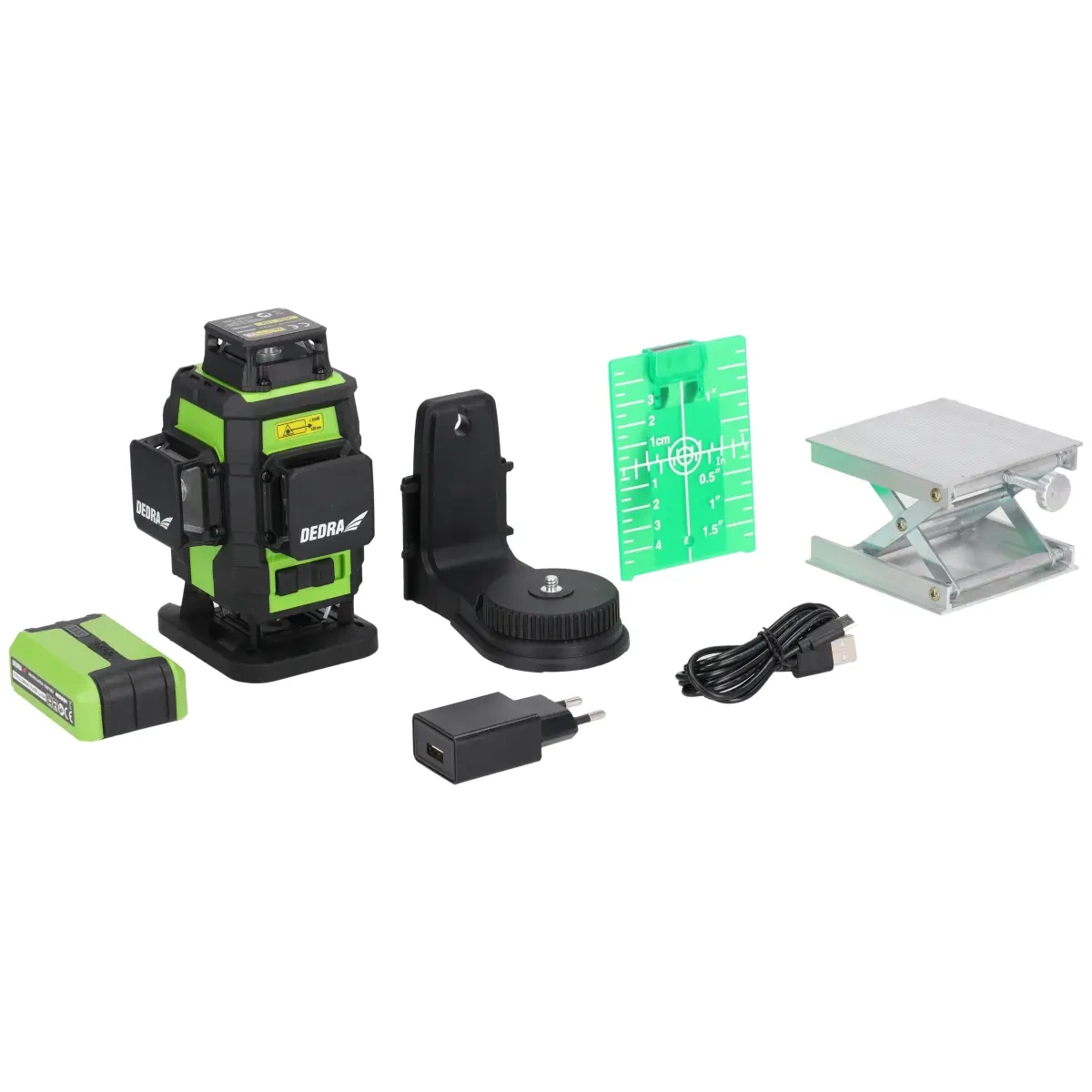

Package contents:

• 4D Laser [1 pc]

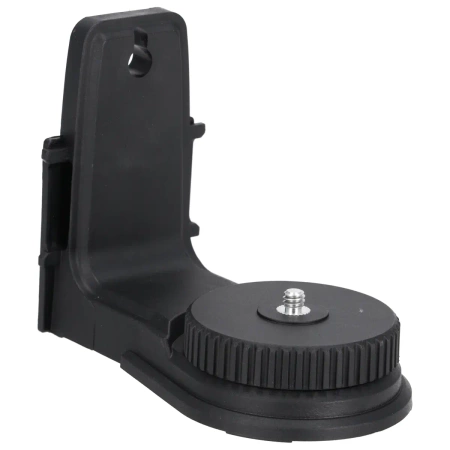

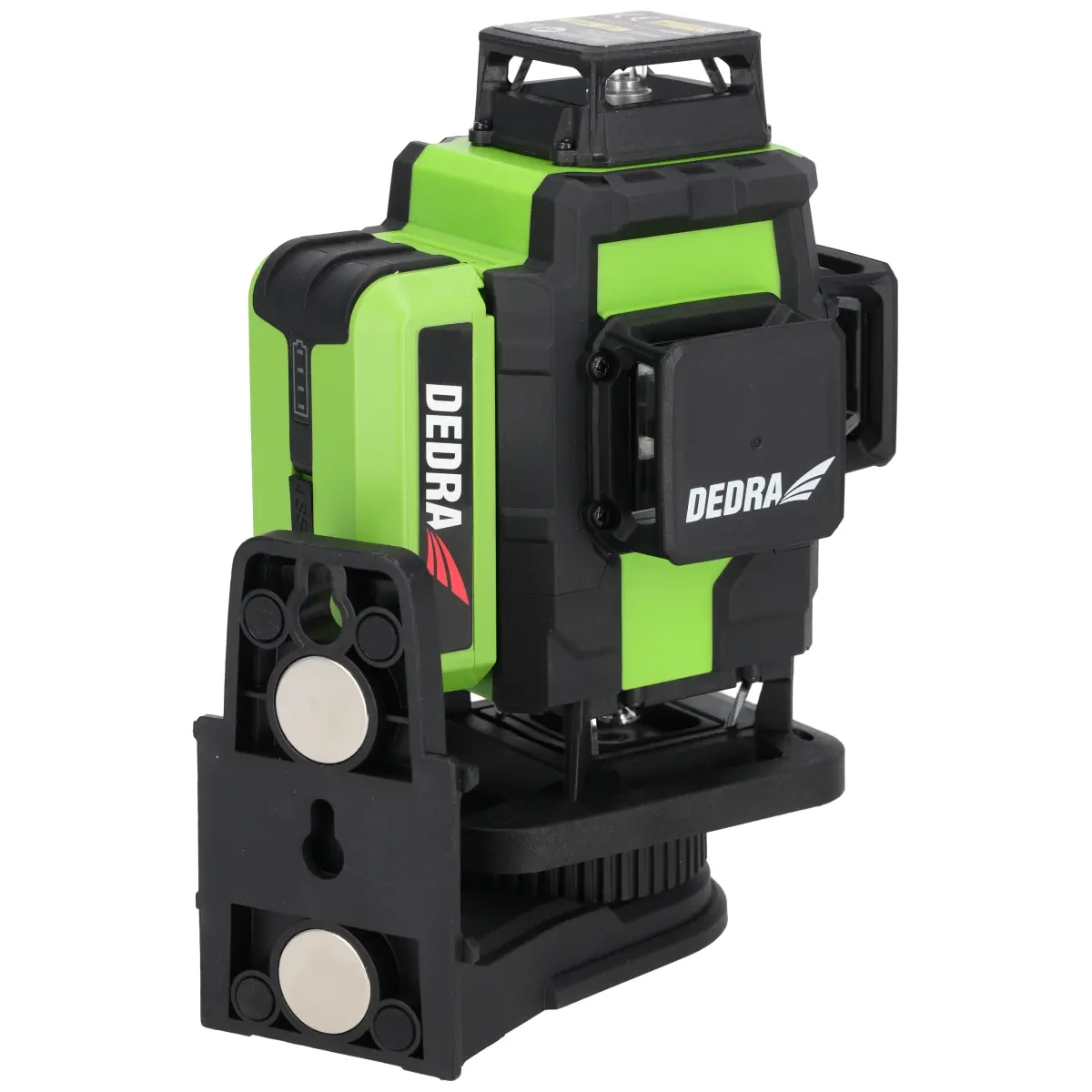

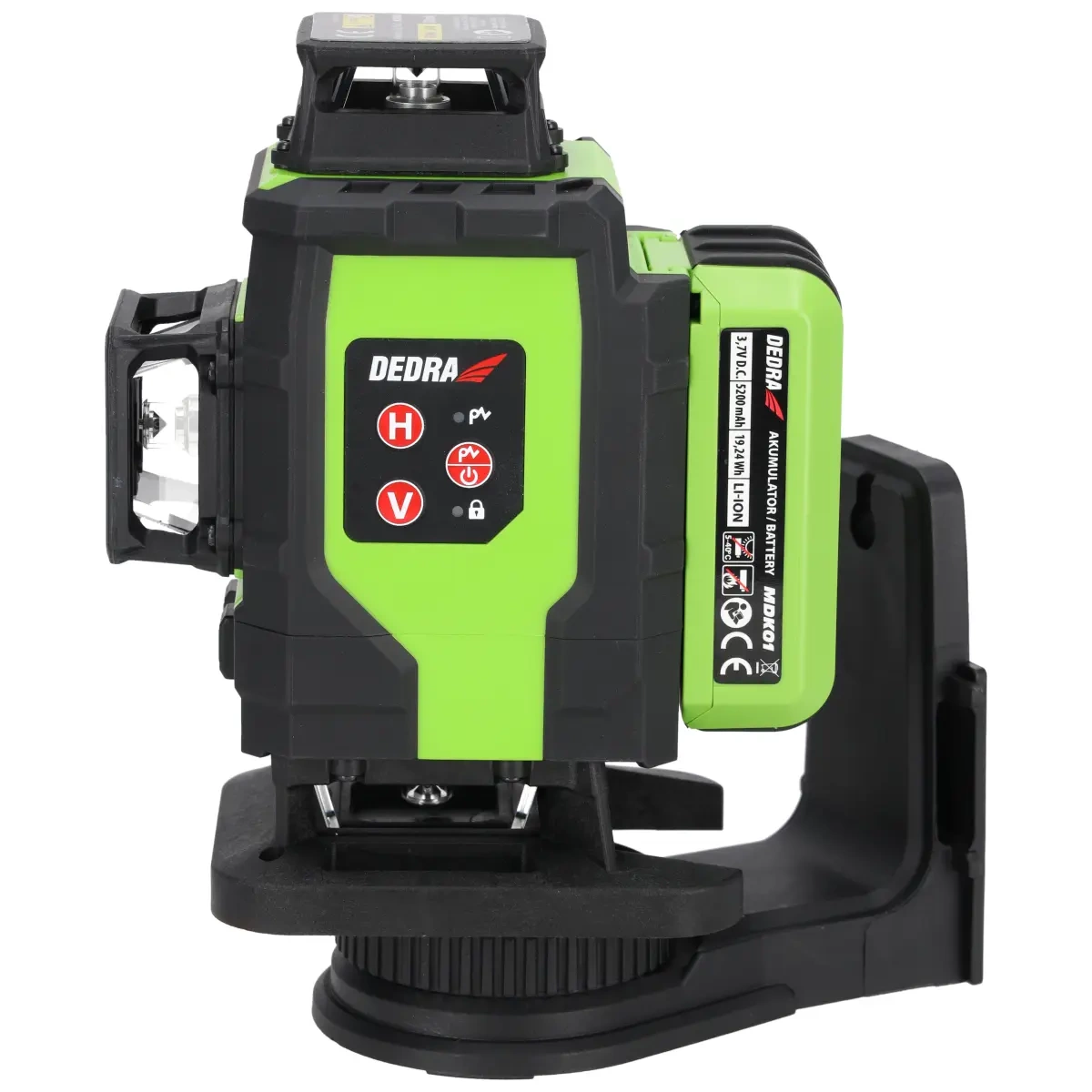

• Magnetic holder PV9 [1 pc]
• Micro-USB C cable [1 pc]

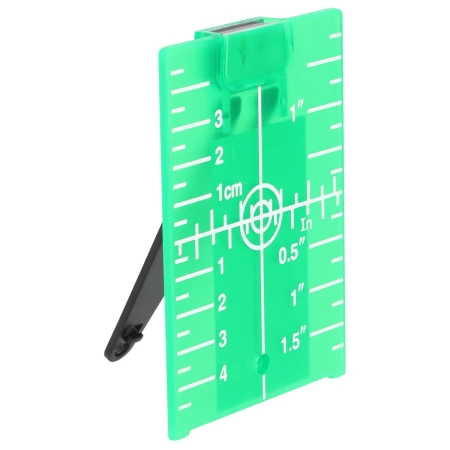

• Target plate [1 pc]
• Metal base [1 pc]

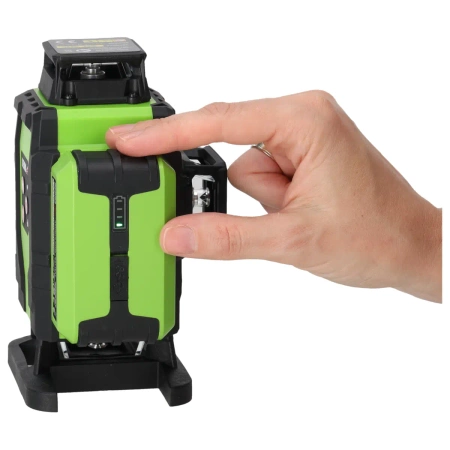

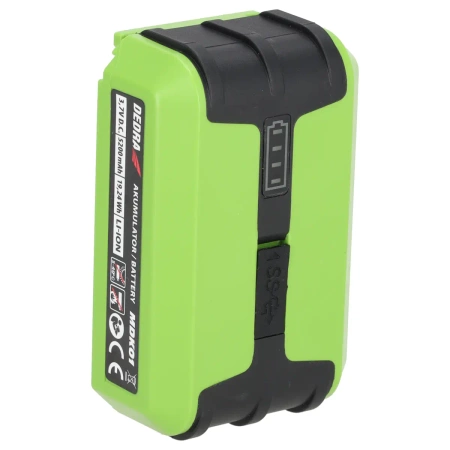

• Replaceable Li-ion battery 5200mAh [1 pc]

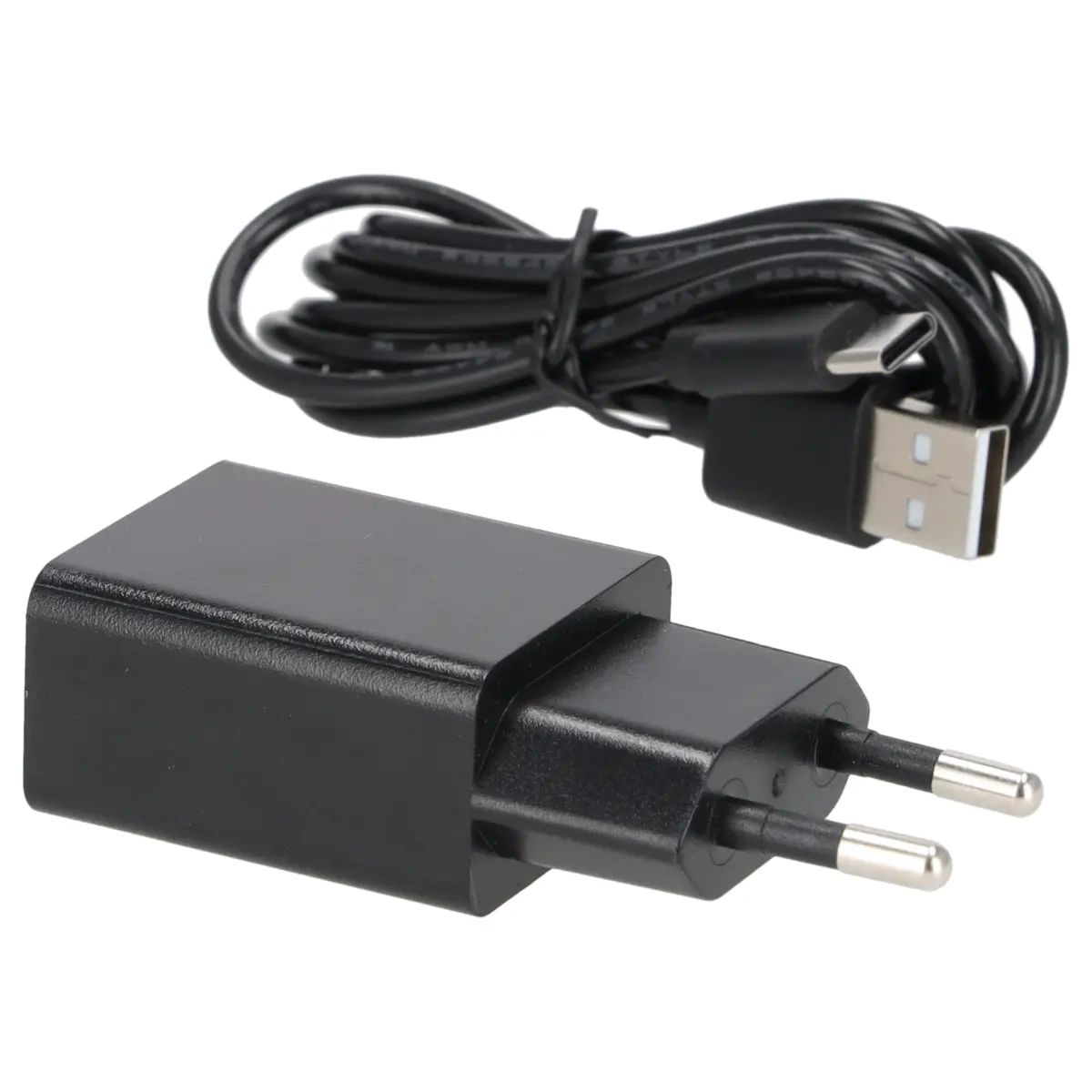

• Charger [1 pc]

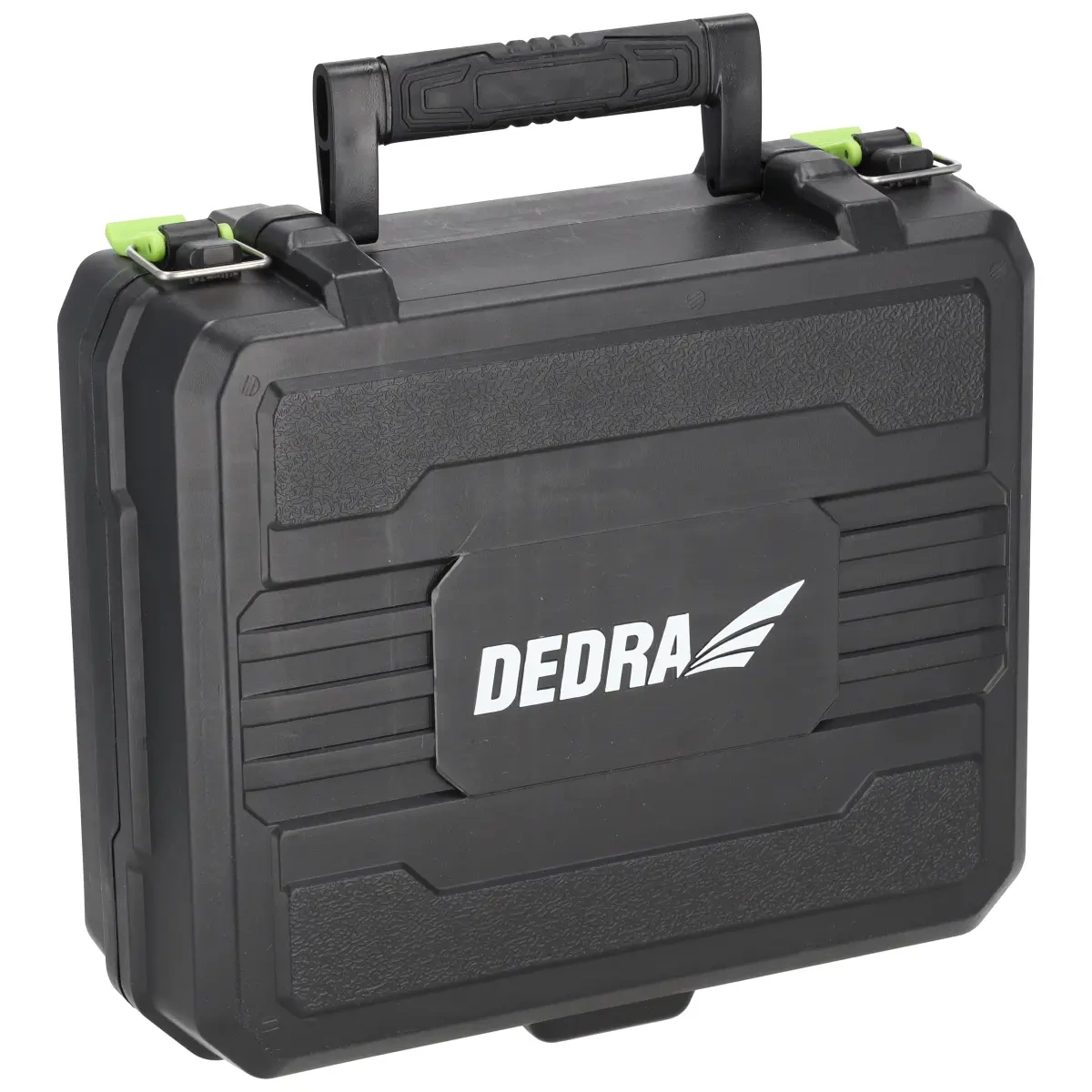

• Carrying case [1 pc]
