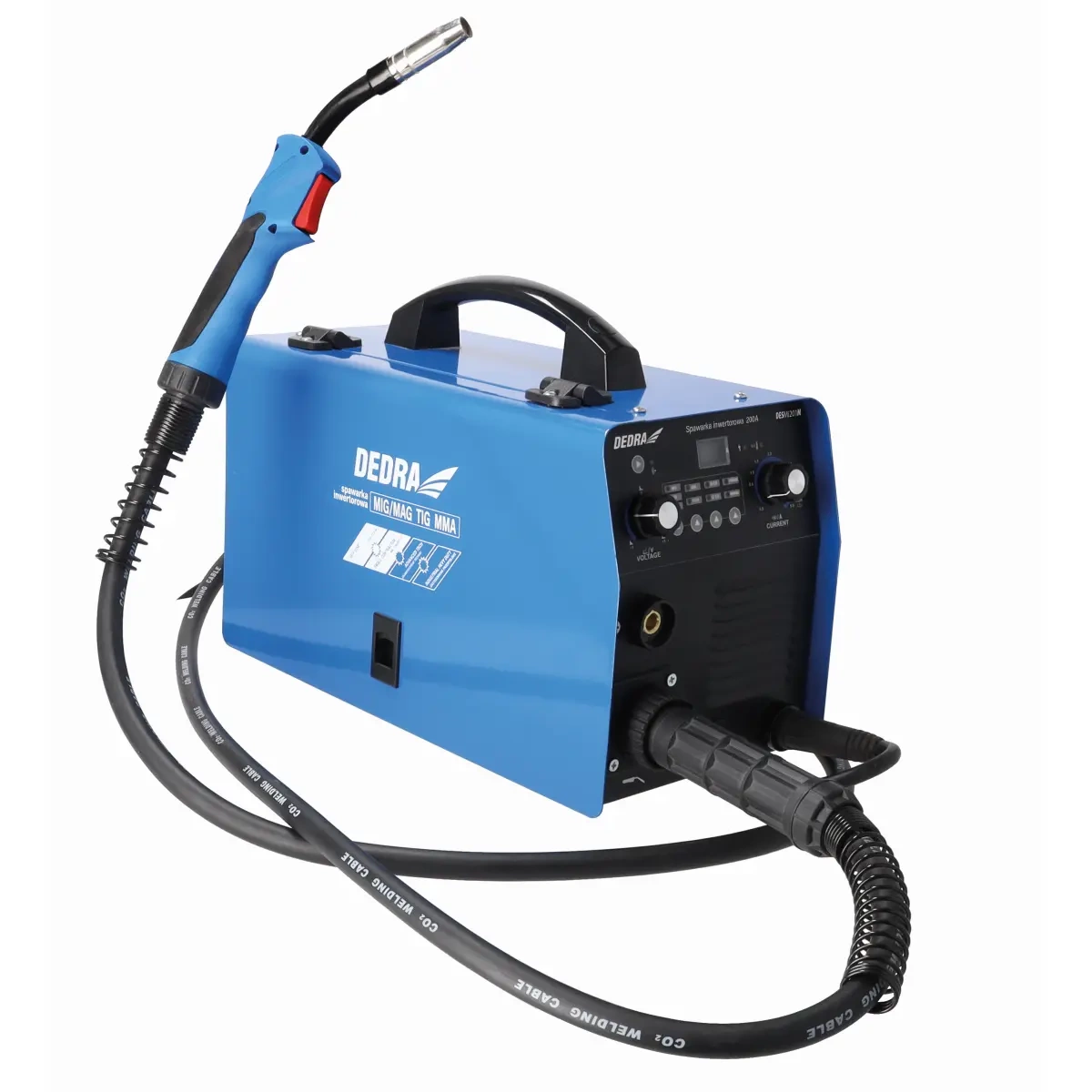

Inverter Welder 200A IGBT MIG/MAG, DEDRA DESMI201M, with TIG and MMA function

The DESMI201M inverter welding machine is a versatile device that will prove useful in various industries and for different types of work.

It offers various welding methods, making it an ideal solution for both professional workshops and outdoor work. Thanks to its versatility, it can be used for welding fences, steel structures, machines, pipes, metal parts, as well as for precise repairs in the automotive or construction industry.

The DESMI201M inverter welding machine is designed for welding:

• with an electric arc, MIG/MAG method with protective gas
• MMA method with a coated electrode with a diameter up to 3.2 mm
• TIG method with a non-melting electrode with a diameter from 1.6 to 3.2 mm

This model of the welding machine uses IGBT technology, which is the basis of modern inverter devices. Inverter welding machines use electronic circuits to generate the correct current values, ensuring high precision and stability of the weld. Thanks to this technology, the device is lightweight, compact, and energy-efficient.

The welding machine is equipped with a range of features that improve its performance and comfort during work:

• HOT START function – increases the current at the beginning of welding, speeding up electrode heating and making it easier to start, especially on thicker materials. This helps form better welds, and when the arc goes out, the current increases again to make continuing welding easier.
• ANTI STICK system – prevents the electrode from sticking to the welded material by automatically switching off or reducing the current and voltage to a minimum.
• ARC FORCE system – allows for control over the arc dynamics, ensuring arc stability, minimizing the risk of a short circuit, and reducing spatter. This makes welding more precise and removing spatter easier.

Additionally, the welding machine is equipped with an LCD display that gives the user full control over the working parameters in real time, improving comfort and precision during welding.

Note: The maximum spool weight suitable for the DESMi171M is 5 kg, and its diameter is 20 cm.

Features of the IGBT DESMI201M Inverter Welding Machine:

• HOT START – system that increases the current when starting the arc, making electrode heating faster and starting the process smoother
• ANTI STICK – prevents the electrode from sticking to the welded material
• ARC FORCE – controls the dynamics of the arc and stabilizes it, reducing the risk of short circuits and spatter
• Three welding methods (MIG/MAG, MMA, TIG) – provides flexibility depending on the material and technique required
• IGBT technology – modern technology ensuring high efficiency and reliability of the device
• LCD display – allows for easy control of the welding machine settings
• Adjustable welding current – enables customization of power depending on material and welding type
• Compact size and lightweight – makes it easy to transport and store
• Carrying handle – ensures comfortable transportation of the welding machine

Technical specifications of the IGBT DESMI201M Inverter Welding Machine:

• Power supply: 230V ~50Hz
• Protection class: IP21S
• Insulation class: F
• Required protective device: 16A, type C fuse
• Electrode diameter:
  • TIG: from 1.6 to 3.2 mm
  • MMA: up to 4 mm
  • MIG/MAG (wire): 0.8-1 mm
• Maximum welding current:
  • TIG: 180A
  • MMA: 180A
  • MIG/MAG: 200A
• Minimum welding current:
  • TIG: 20A
  • MMA: 20A
  • MIG/MAG: 20A
• Maximum spool weight: 5 kg
• Maximum spool diameter: 20 cm
• Welding current adjustment range: 40-200 A
• Cooling system: fan
• Weight: 12 kg

Package contents:

• Inverter welding machine [1 pc]
• MIG/MAG cable [1 pc]
• Electrode cable [1 pc]
• Ground cable [1 pc]
• Welding helmet [1 pc]
• Metal brush with hammer [1 pc]
• Flux wire spool 0.8 mm² [1 pc]
