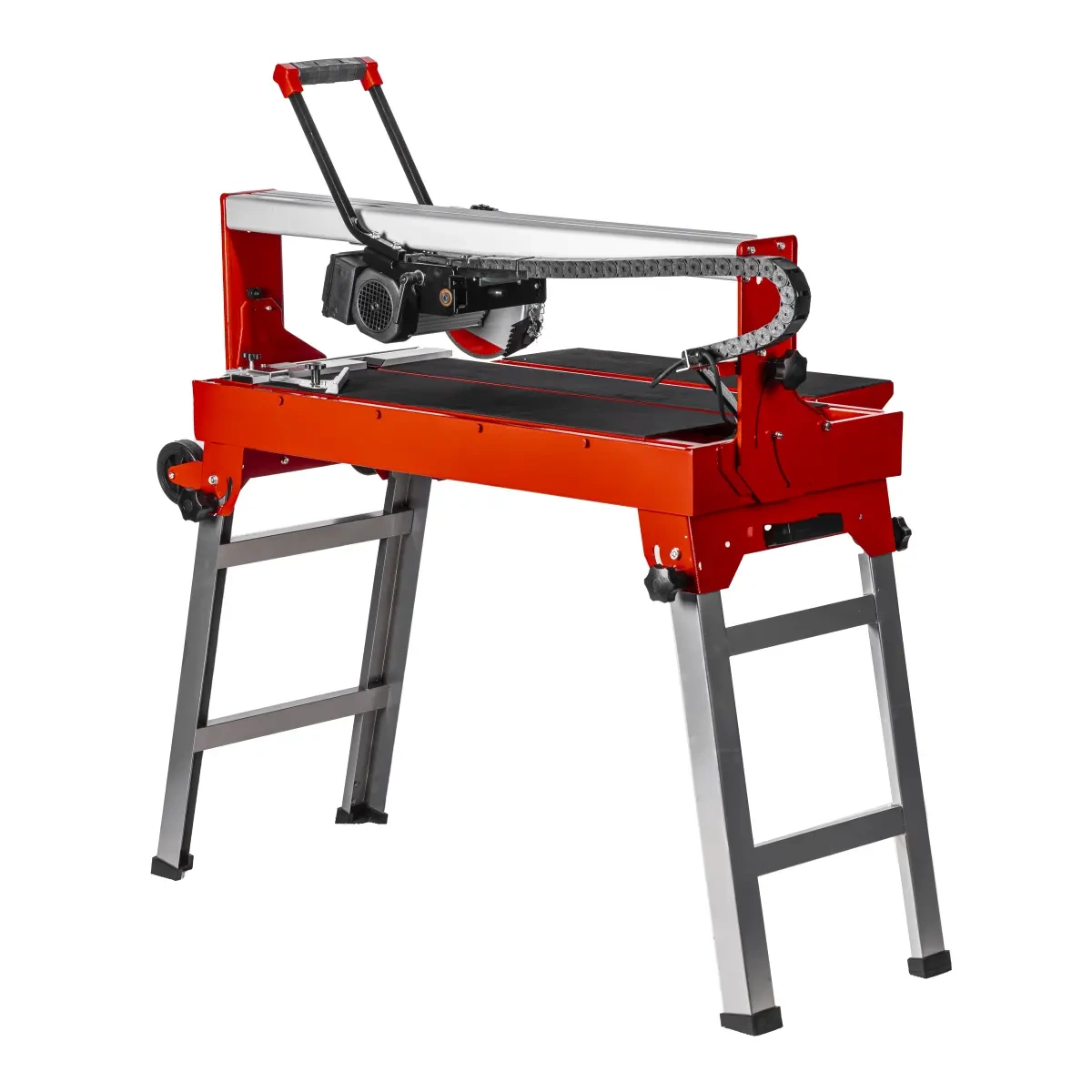

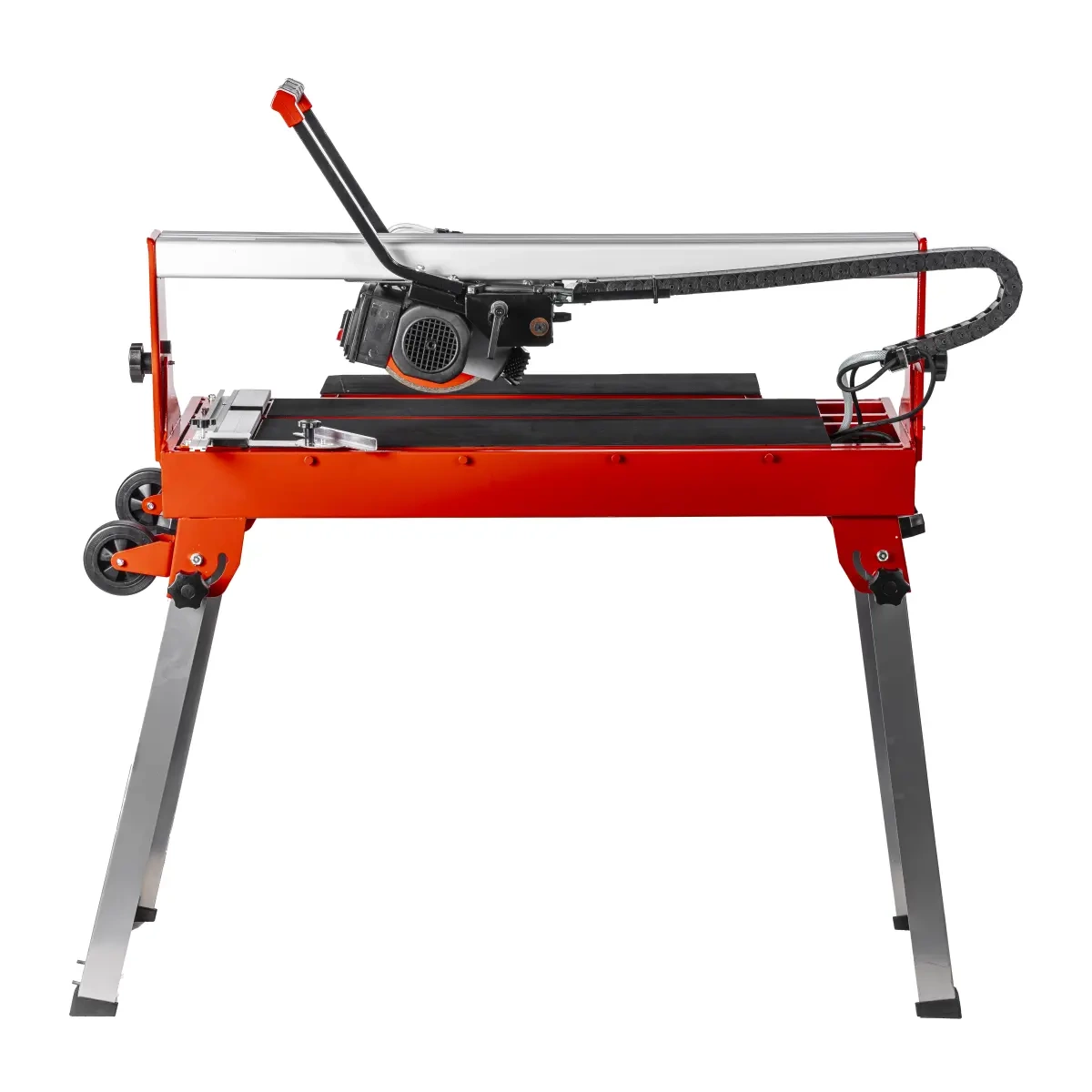

Tile cutter, cutting machine DEDRA DED7817, cutting length 720mm

DEDRA DED7817 tile cutter is a professional device designed for precise cutting and processing of ceramic materials.

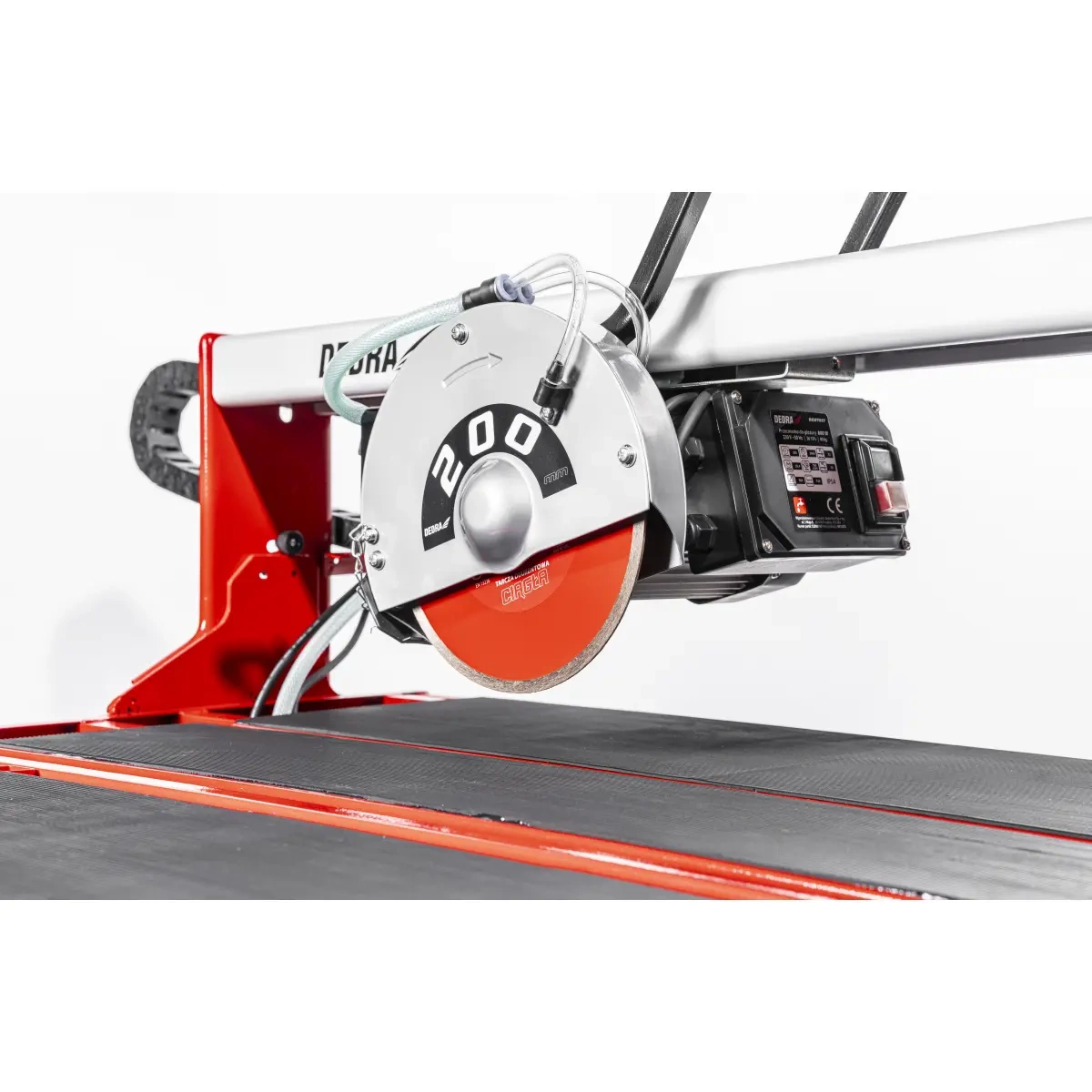

Equipped with a sliding head, it allows you to perform a variety of operations on tiles such as:

• longitudinal cutting of strips,
• cross-cutting,
• diagonal cutting,
• beveling edges.

It comes with a 780x390 mm steel worktop, whose working area can be further elongated by unfolding an additional side top - an important convenience, especially when working with large boards, when additional support is needed. Furthermore, the tabletop has been covered with a layer of rubber, ensuring high adhesion of the plate to the surface - so the material holds firmly, which facilitates precise cutting.

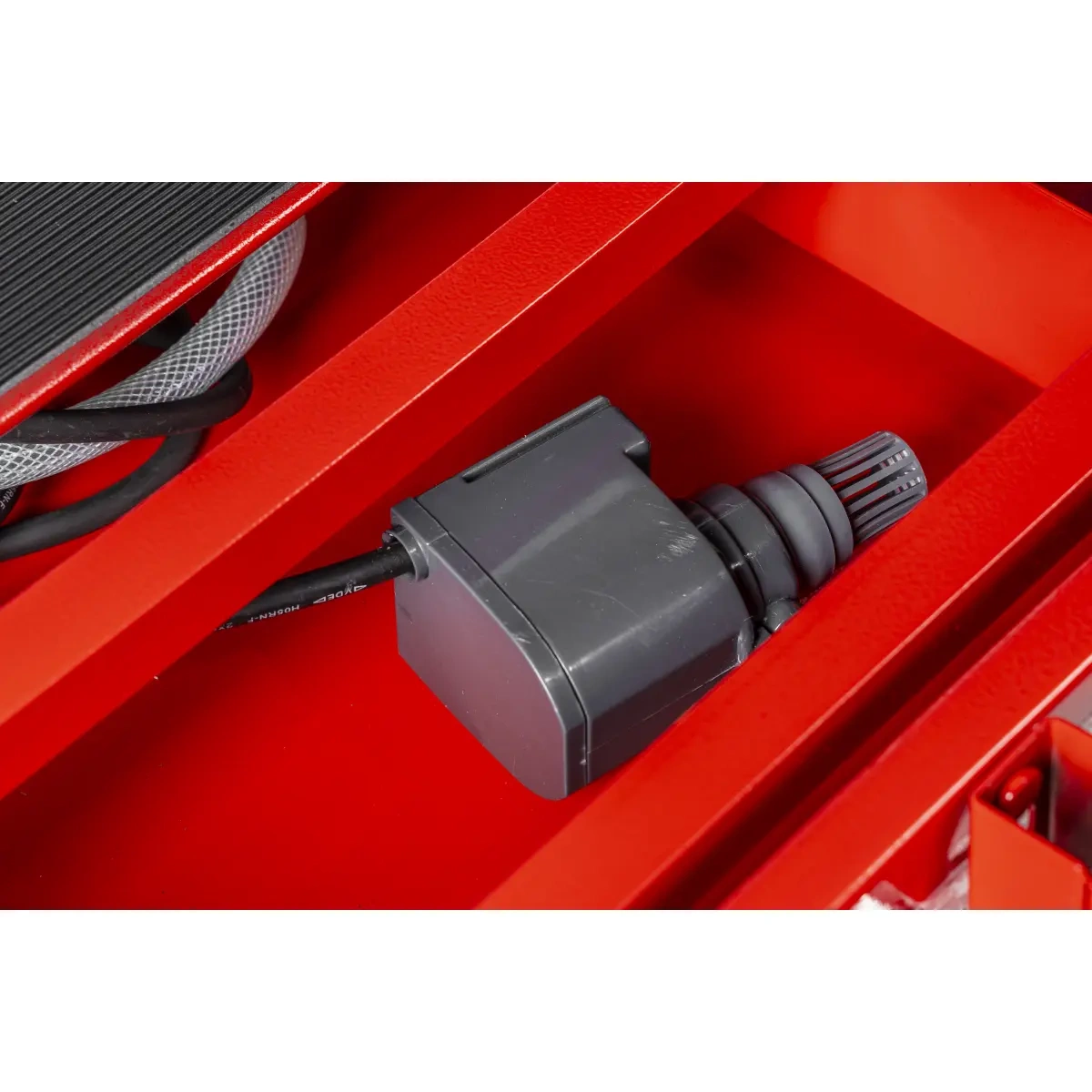

The cutter uses a dual system of cooling the blade with water, which acts as a coolant and dust suppressant, effectively reducing the spread of spoil during operation. Folding legs and additional transport wheels facilitate transport and storage of the device. The cutter is also equipped with an angle gauge for precise delineation, and the plunge function allows you to adjust the depth of cut to suit your current needs.

All of that creates a very versatile and practical device.


Features of the tile cutter DEDRA DED7817:

• Tabletop made of steel, additionally covered with rubber - high stability and adhesion of the tile to the tabletop

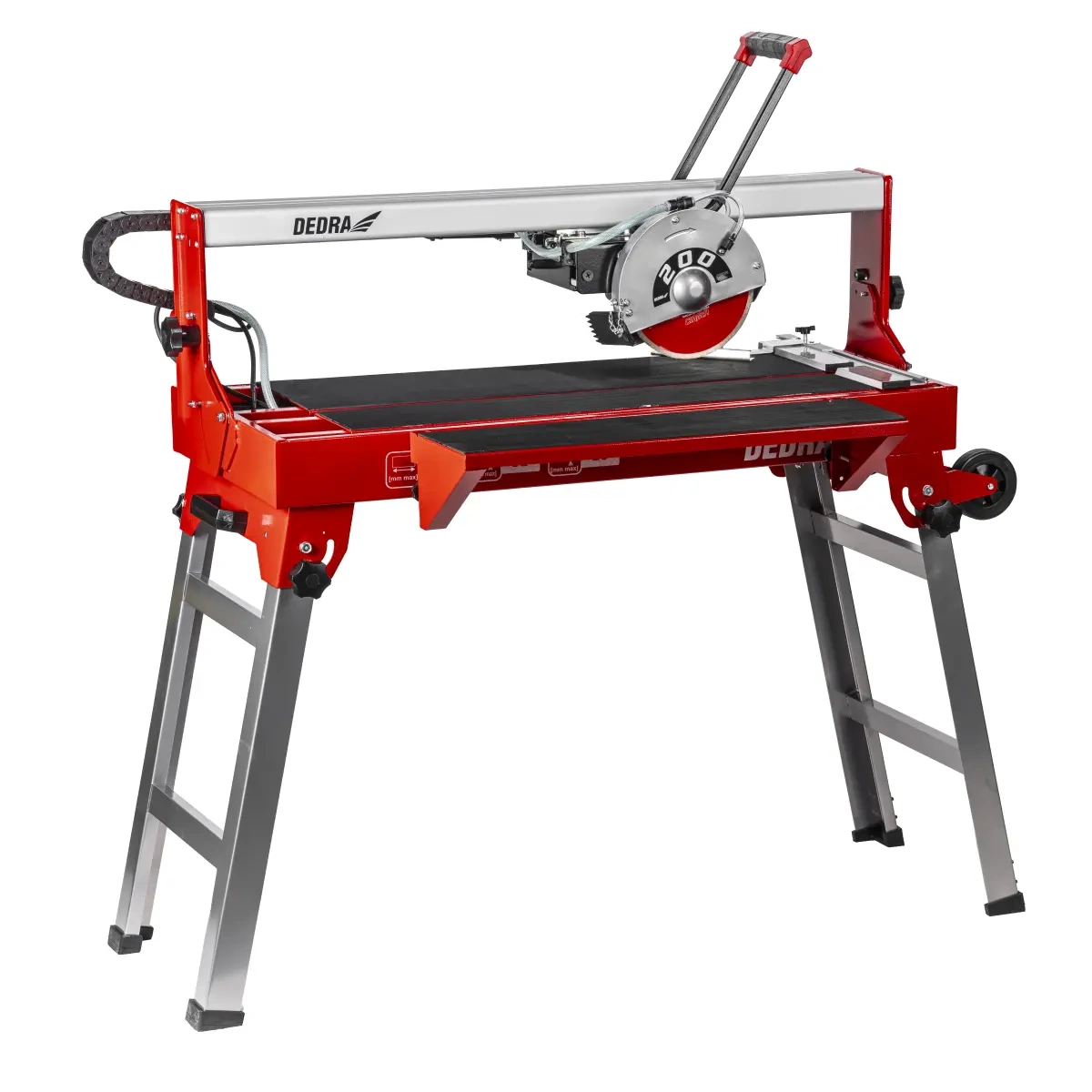

• Additional side top - possibility to increase the working surface, easier processing of large-size materials
• Hollowing function - possibility to adjust the depth of cut to individual needs

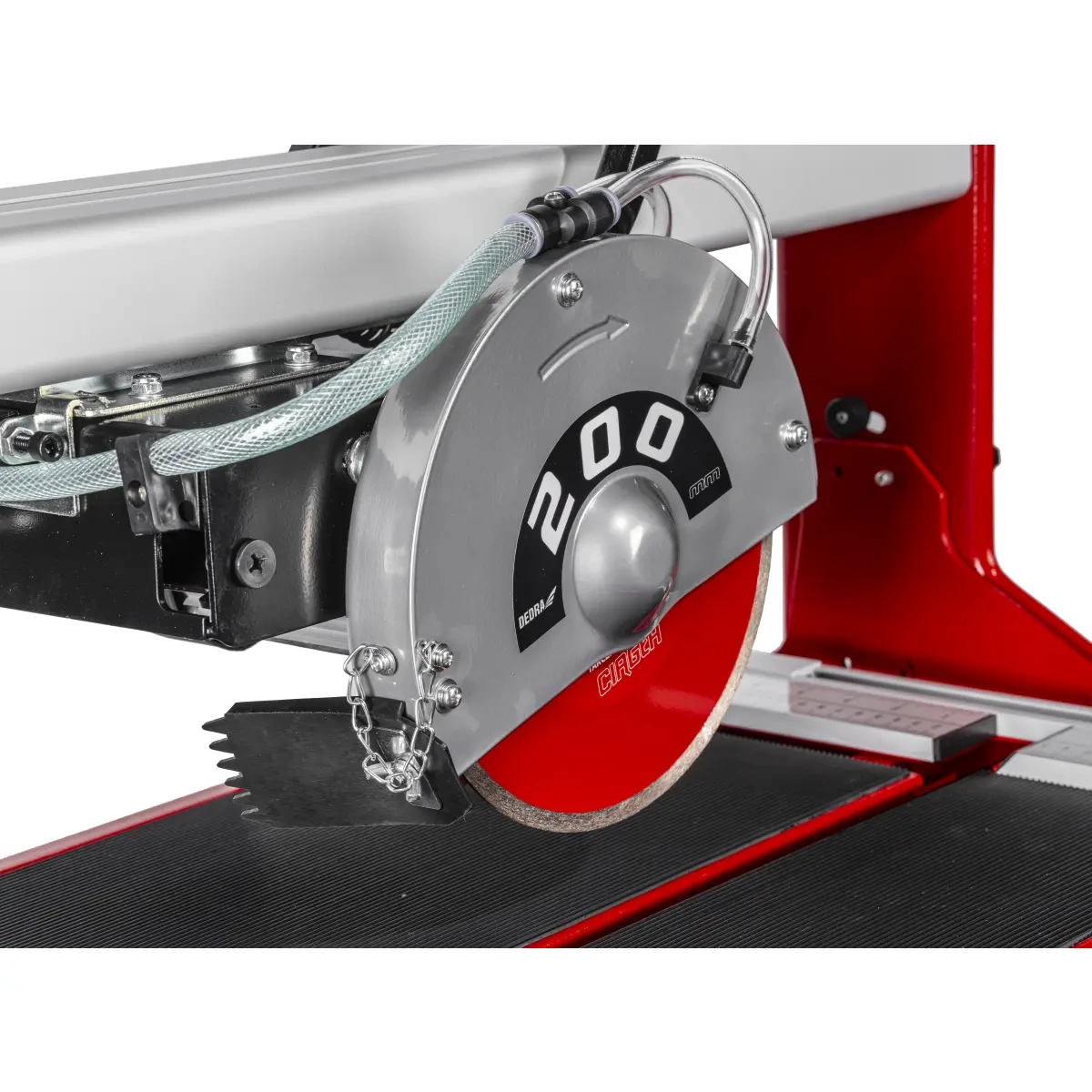

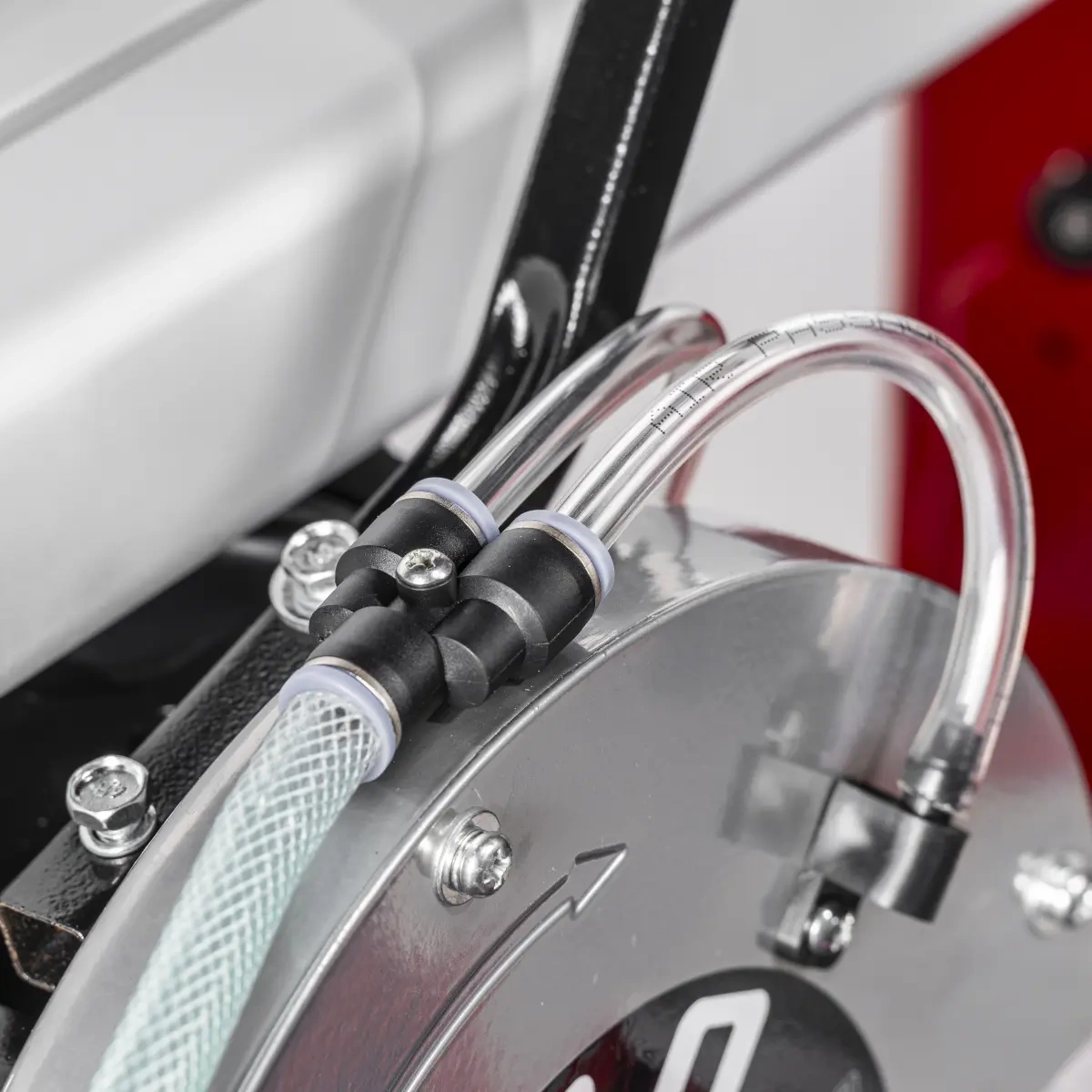

• Dual blade cooling system during operation - two tubes feeding water onto the blade
• Wet processing - significant reduction in the spread of dust during cutting

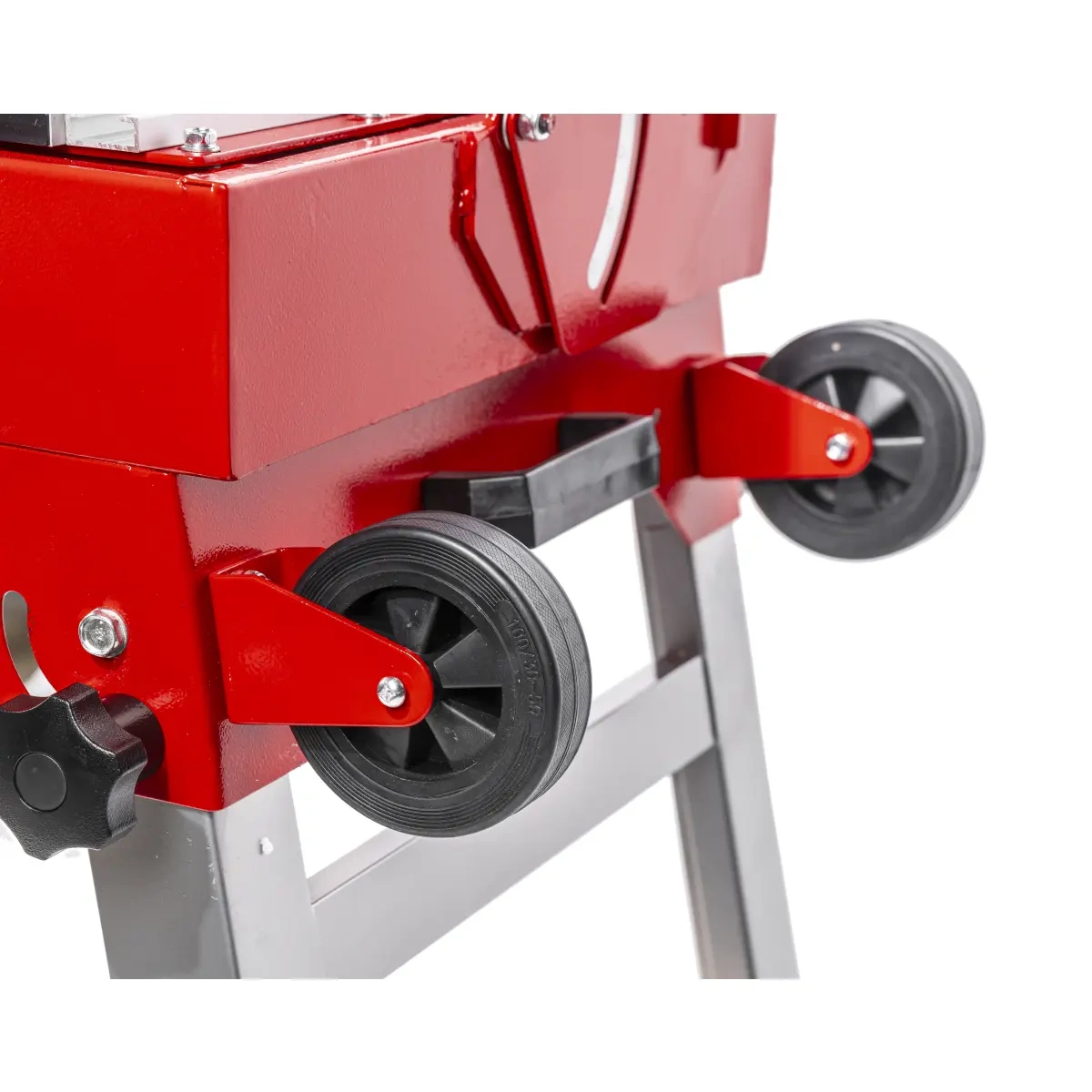

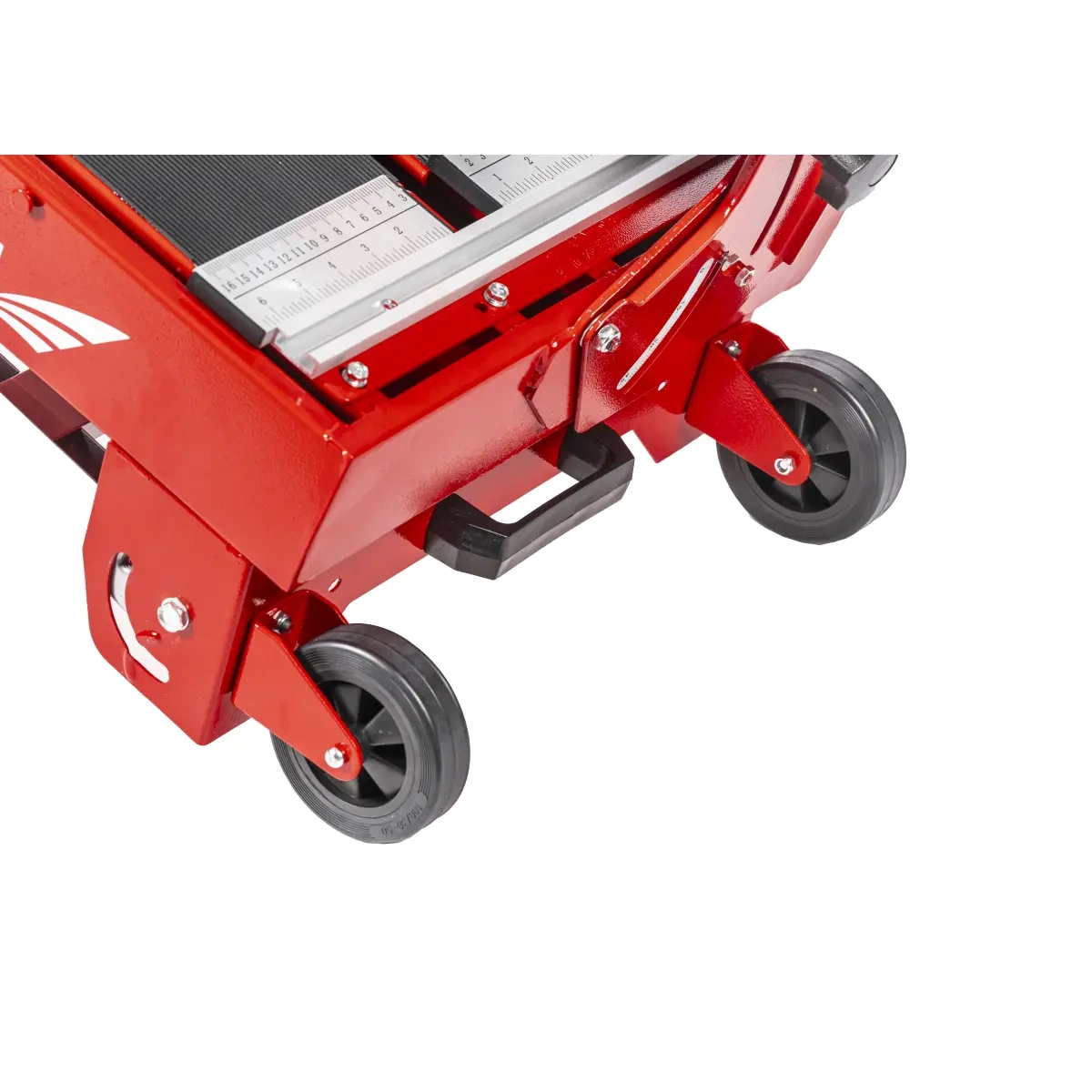

• Foldable work table legs + transport wheels - easy transport and storage

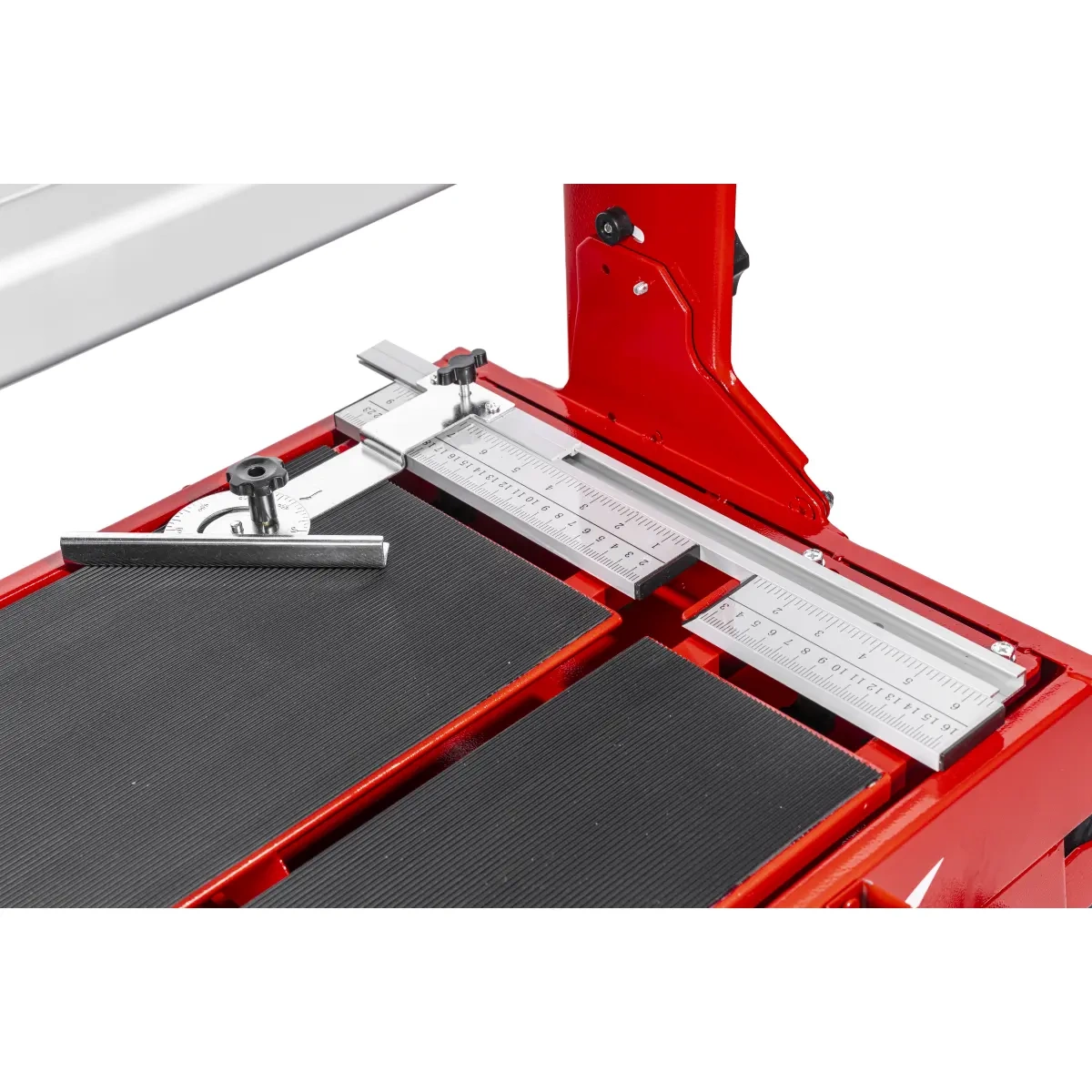

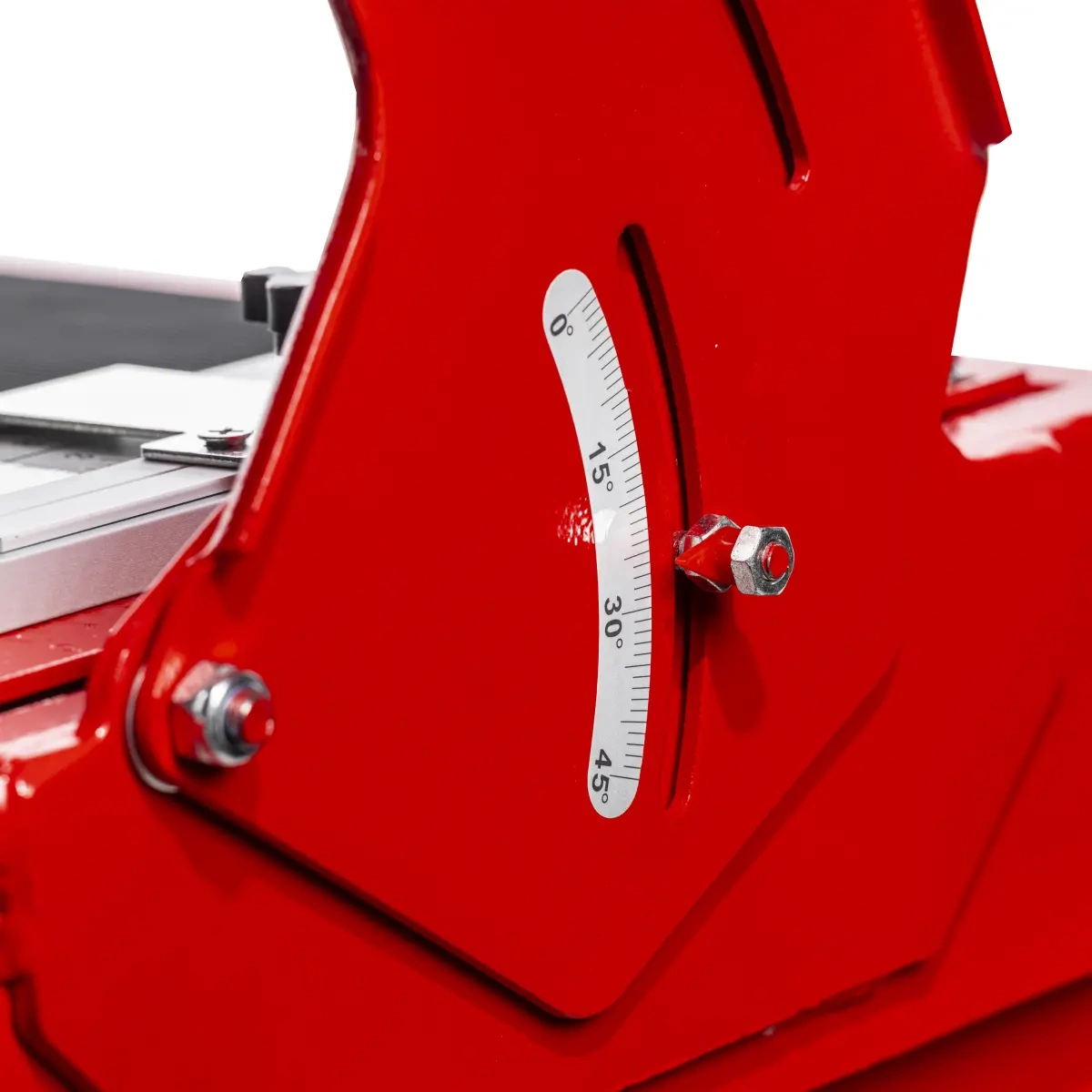

• Angle gauge - precise determination of angles

Technical data of the tile cutter DEDRA DED7817:

• Construction material: steel, rubber

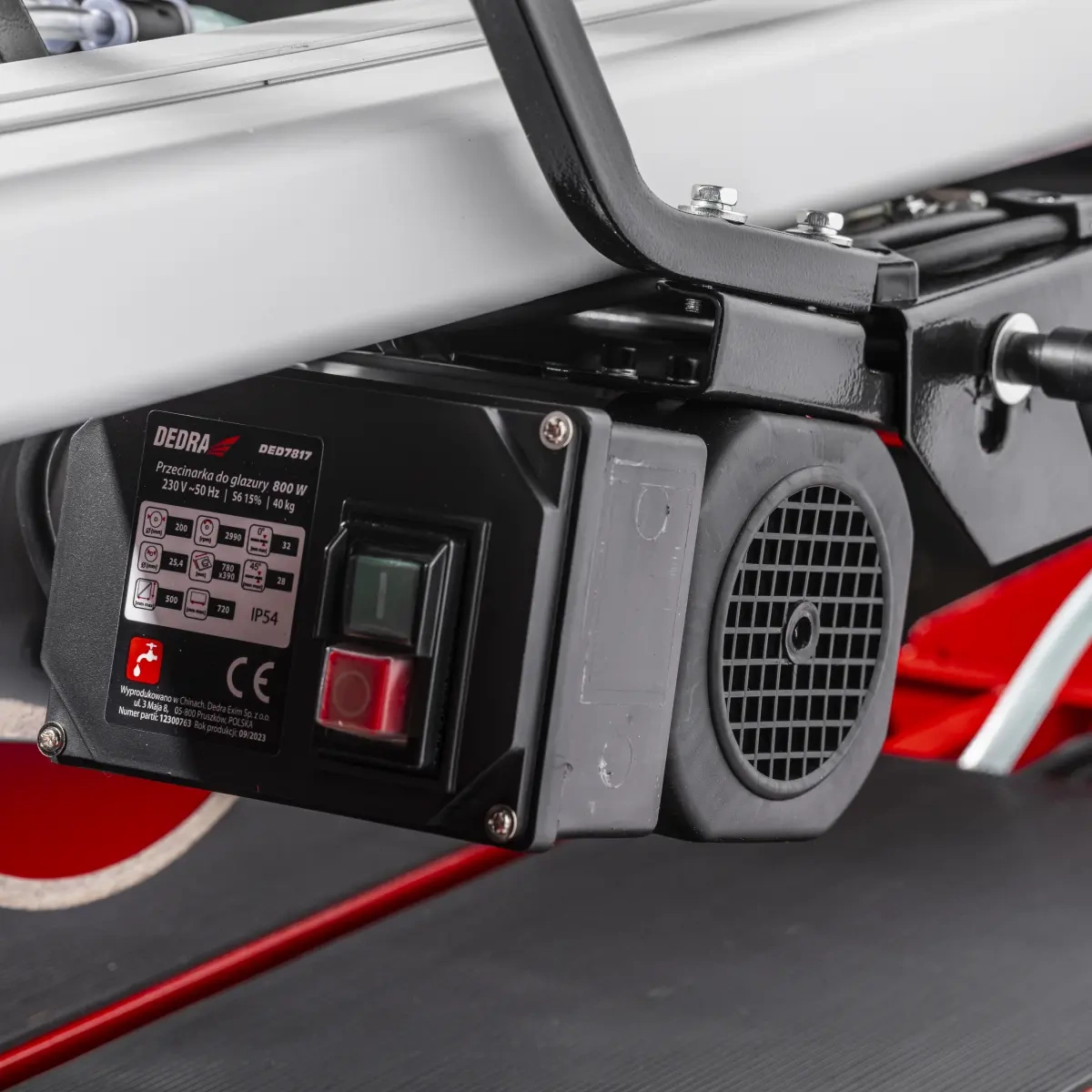

• Motor power: 800W
• Power supply: 230v~50 Hz
• Rotational speed: 2990RPM
• Disc diameter: 200/25.4mm
• Max. cutting length: 720mm [500mm when cutting in diamond-shape]
• Max. cutting thickness:

  • at a 90° angle: 32 mm

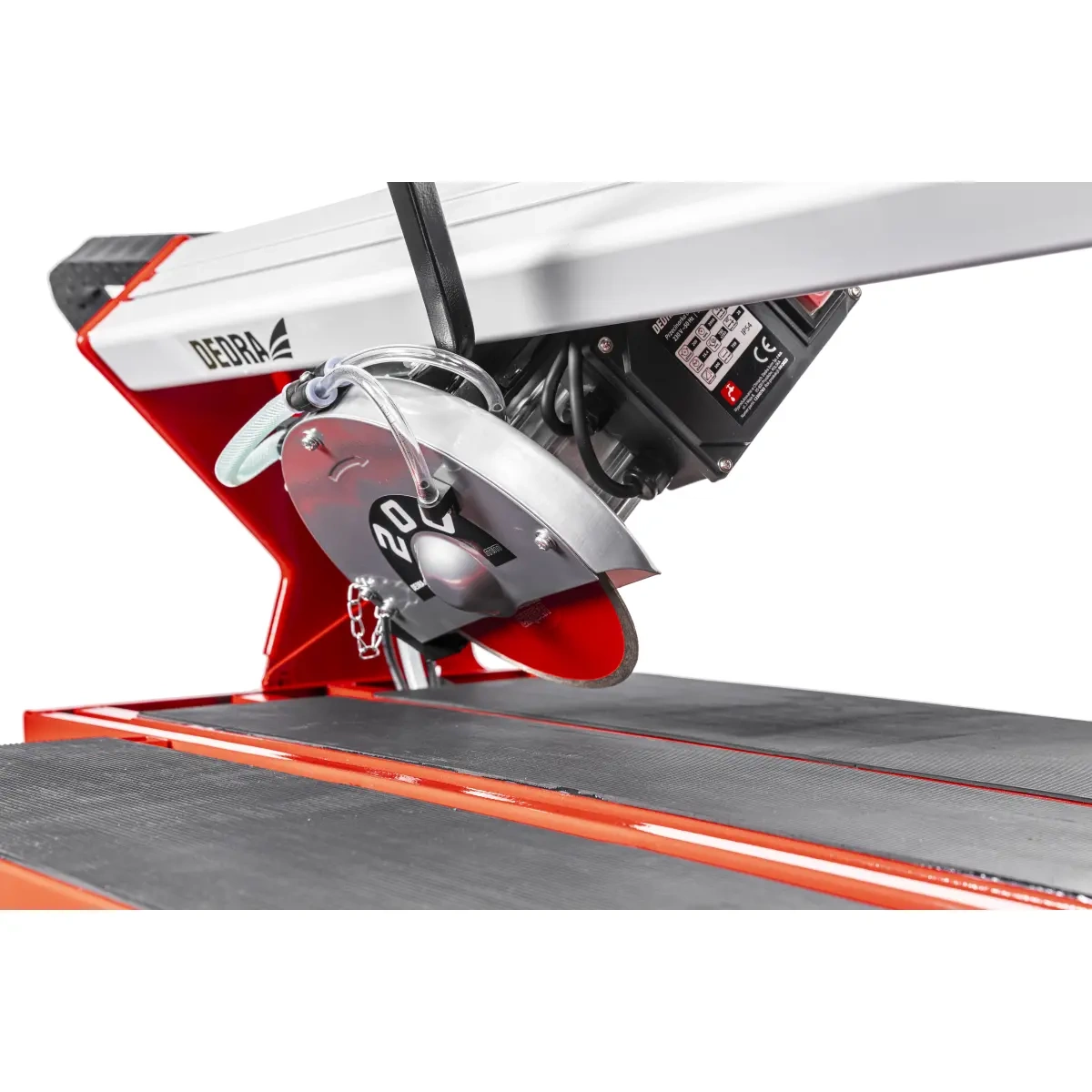

  • at a 45° angle: 28 mm
• Tabletop dimensions:

  • working (main): 780x390 mm
  • additional (side): 640x20mm
• Working height of the cutter: 790mm
• Weight: 44 kg

Included:

• Ceramic cutting machine
• Continuous diamond disc for tile cutting H1123E [1 pc]
