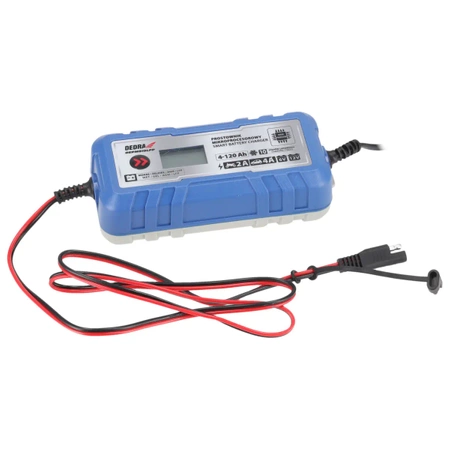

Microprocessor rectifier, battery charging, DEDRA DEPM019LFP

DEPM019LFP charger is a device designed to charge lead-acid (wet), gel, AGM, LFP batteries with voltage of 6/12V and capacity of 4-120 Ah, which are used in motorcycles, cars, etc.

This compact device with advanced technology is designed for use in both households and professional repair shops. Thanks to a microprocessor, the charger carries out battery charging cycles by itself, adjusting the stages of operation according to the condition of the battery. Diagnostics and analysis of the battery, allows you to accurately monitor its condition, and this allows you to adjust the charging process to its needs.

Unlike traditional chargers, the microprocessor charger is not only compact, but also lightweight and easy to carry, making it more convenient to use and easier to transport and store. In addition, there is no need to remove the battery from the vehicle during charging, which is a significant advantage over traditional models.

Another advantage of the microprocessor-based charger is the LCD display, which will inform the user of the charging progress, as well as indicate the battery's non-voltage. The device operates in a wide temperature range, from -20˚C to +40˚C, making it a reliable tool regardless of the operating conditions.

In addition, the DEPM019LFP charger is equipped with a number of safety features, such as anti-spark, reverse polarity, battery overcharge, short circuit and overload protection, which protects both the battery and the device from damage.


Features of the DEPM019LFP microprocessor-based charger:

• Compact housing and size, increasing ease and comfort of use

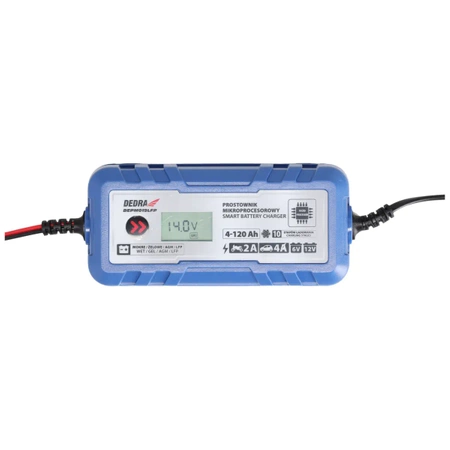

• Electronic indicator of battery voltage and charge progress
• Wide operating temperature range: -20˚C/ + 40˚C
• Ten charging stages:

  • Diagnostics
  • Desulfurization
  • Stimulation
  • Pulse charging
  • Basic charging
  • Slow charging
  • Maintenance charging
  • Final charging
  • Battery analysis
  • Voltage support
• A range of protections:

  • anti-spark
  • against reverse polarity
  • against overcharging the battery
  • short-circuit
  • overload

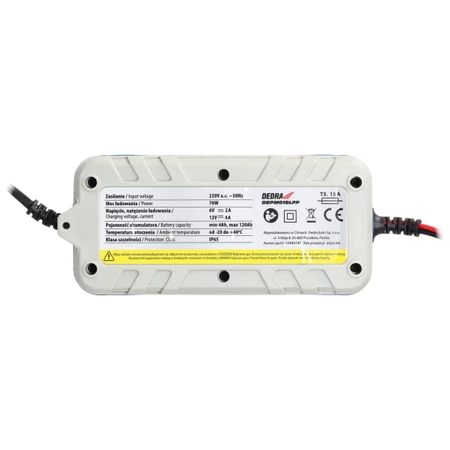

Technical data of the DEPM019LFP microprocessor rectifier:

• Supply voltage: 230 V
• Frequency: 50kHz
• Charging power: 70 W
• Charging voltage and amperage level: 6V = 2A, 12V = 4A
• Minimum battery capacity: 4 Ah
• Maximum battery capacity: 120 Ah
• IP 65 protection class

Included:

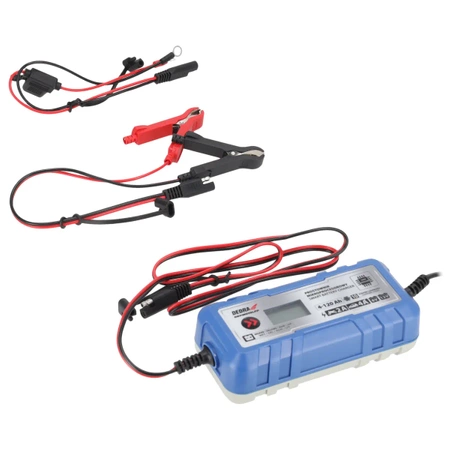

• Microprocessor rectifier

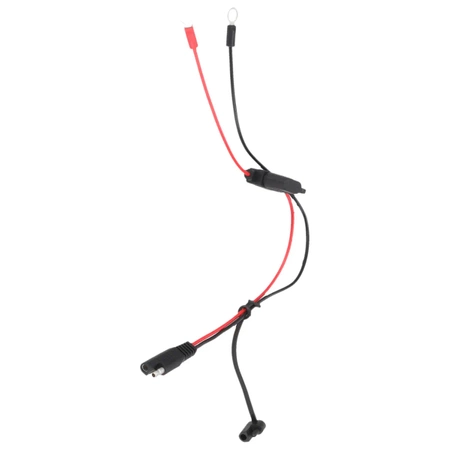

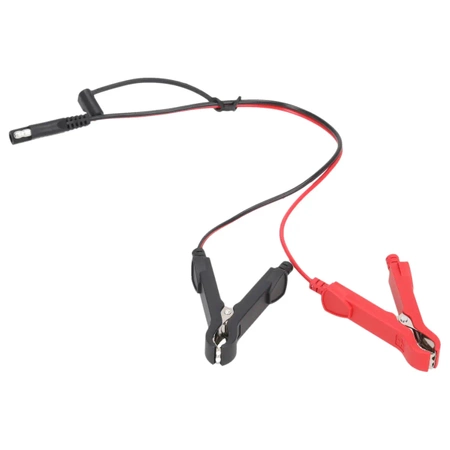

• Set of cables (1 piece)
