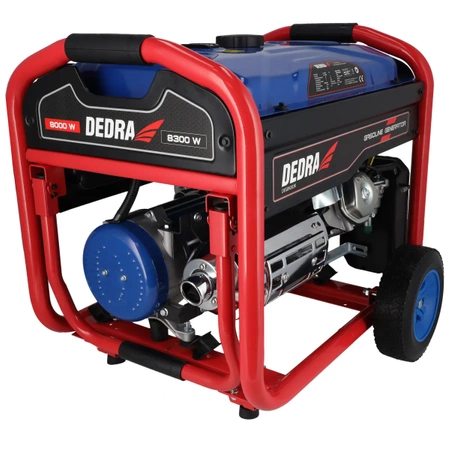

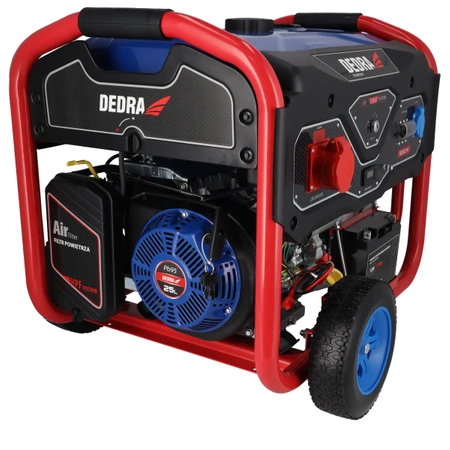

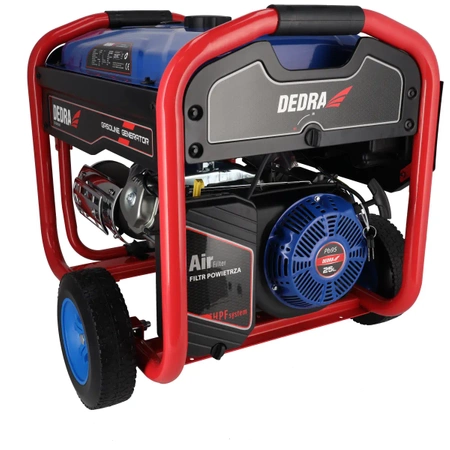

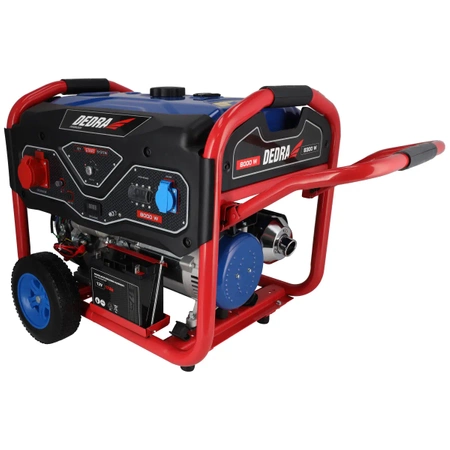

Generator set DEDRA DEGB9203K max. power 8,3kW, 8000W, copper motor winding, 1x400V, 1x230V

The DEGB9203K generator set with a power rating of 8000W is used as an emergency power supply in case of a power outage.

It can also be used as an additional power source used in households, garden slots, camping sites or areas where repair and construction work takes place. Electric start of the four-stroke engine increases the comfort of the device.
The generator set is equipped with one 400V(AC) outlet, one 230V(AC) outlet and one 12V(DC) outlet. The unit has a 25l fuel tank.

The product features high efficiency and long operation time with low fuel consumption. Large transport wheels provide greater mobility of the device and greater comfort during transportation.

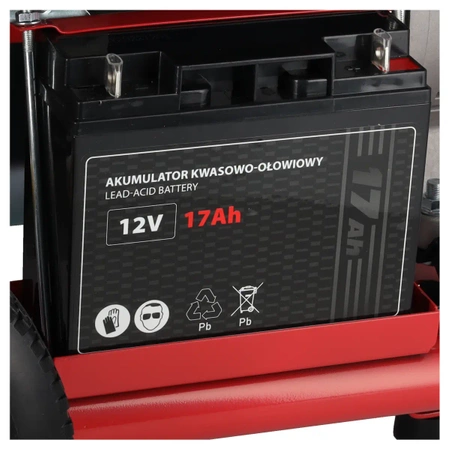

NOTE: For safety reasons, the starter battery is disconnected from the unit for transportation - so it must be connected before starting. The generator set is also not filled with oil - so before starting work, the unit must be filled with oil.

Power stations and generator sets are made in accordance with EU Directives and standards, which specify that the products are made as separated systems. Such execution of the product ensures adequate protection against electric shock for the user and is commonly used in devices for emergency power supply.

Some consumer devices, due to their design and protection of electronics (e.g., some gas boilers), require the use of a power supply system grounded in the same way as it is for "power from the socket", i.e., from the power grid. In this case, it will be necessary to make individual power connection by an authorized installe.

Features of the DEGB9203K generator set:

• One 400V alternating current (AC) outlet
• One 230V alternating current (AC) outlet
• One 12V direct current (DC) outlet
• Voltage stabilization system (AVR)
• Low sound level of 97dB
• Fuel consumption indicator

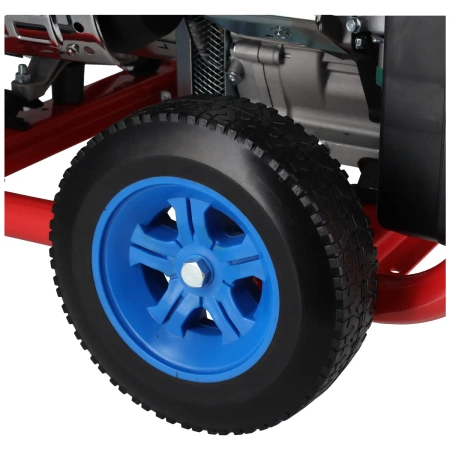

• Large transport wheels
• Additional transport handles

Technical specifications of the DEGB9203K generator set:

• Voltage 400V/230V/12V
• Frequency :50kHz

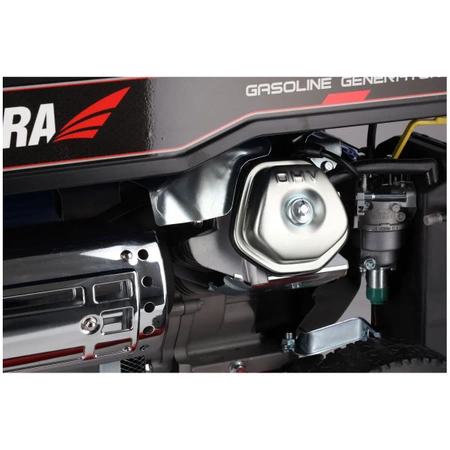

• Four-stroke OHV, single-cylinder engine
• Maximum power: 8300W
• Power for continuous operation: 8000W
• Engine power [kW]: 10.3 kW
• Motor speed [min-1]: 3000
• Engine displacement [ccm]: 459
• Engine winding: copper
• Starting: electric

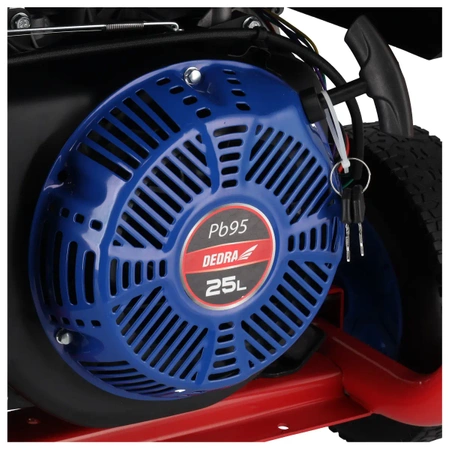

• Fuel type: 95

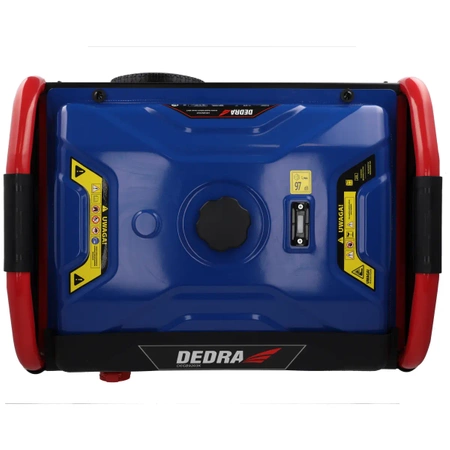

• Fuel tank: 25 l
• Guaranteed sound power level [dB(A)]: 97
• Weight without fuel [kg]: 95
• Performance requirement class: G1
• Power compliance class: A

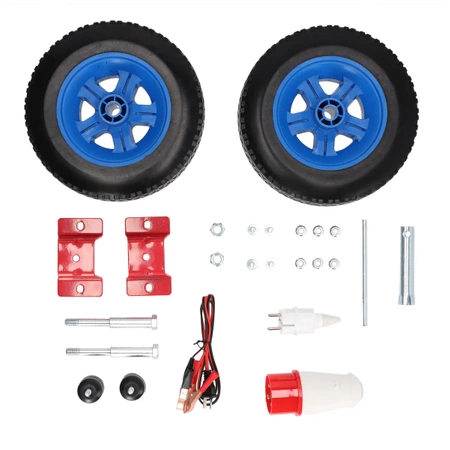

Completion:

• Generator set
• Operating instructions (1 pc)
• Candle wrench (1 pc)
• 12V DC cable (1 pc)
• Plug (1 pc)
