DED7838
5902628783806

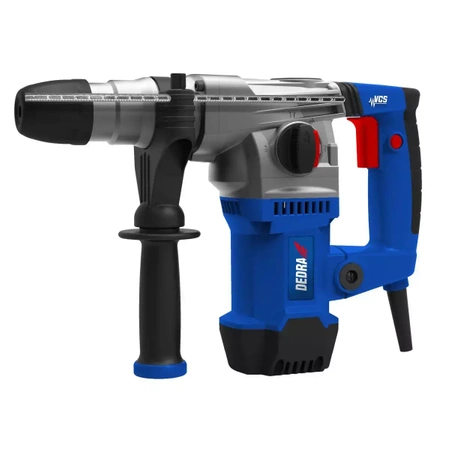

Rotary hammer SDS PLUS 1250W DED7838
The DED7838 rotary impact hammer is used for impact drilling in concrete, reinforced concrete and other building materials. It is also suitable for medium-heavy blocking work in concrete. The 4 operating modes also allow it to be used for drilling in materials such as wood and metal. For improved comfort, the VCS system, a vibration damping system, has been incorporated, which significantly absorbs vibrations during operation.
The whole set is packaged in a functional case with accessories for working immediately after unpacking.
Features:
- SDS+ chuck
- 4 working modes: drilling, hammer drilling, superficial blocking, concrete blocking
- Rubberised handle
- Vibration damping system VCS
- Depth limiter
- Auxiliary 360° handle
- Convenient start button
Technical data:
- Voltage: 230 V / 50Hz
- Power: 1250 W
- Impact energy: 4,5 J
- Rotational speed: 870 RPM
- Stroke count: 4100 BPM
- Type of chuck: SDS +
- Maximum drilling diameter in wood : 40 mm
- Maximum drilling diameter in metal: 13 mm
- Maximum drilling diameter in concrete: 32 mm
- Weight: 4.5 Kg
Completion:
- Pointer tool
- Flat chisel
- 3 concrete drill bits
- Grease container
- Grease hole cap wrench
- Spare grease hole cap
- Auxiliary handle

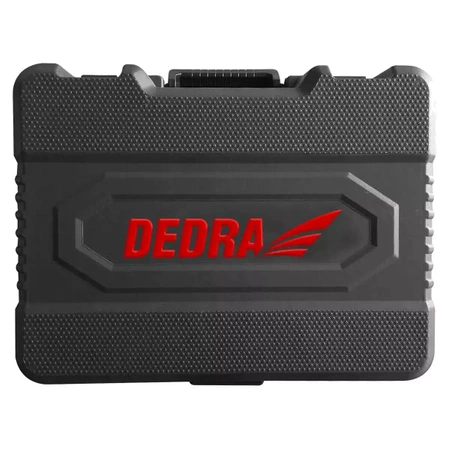

- Transport case
- Spare electrographite brushes
Brand
Symbol
DED7838
Producer code
5902628783806
Warranty
LED
No
Impact energy [J].
4,5
Number of speeds
1
Number of functions
4
Number of impact strokes [BPM].
4100
Maximum speed [rpm]
870
Maximum drilling diameter in concrete [mm].
32
Maximum drilling diameter in wood [mm].
40
Maximum drilling diameter in metal [mm]
13
Power [W].
1250
Voltage [V].
230
Right-left rotation
YES
Type
Rotary hammer
Series
DEDRA
Motor type
Brush engine
Handle type
SDS+
Impactor type
Electro-pneumatic
Weight [kg].
4,5
Power supply
Mains
