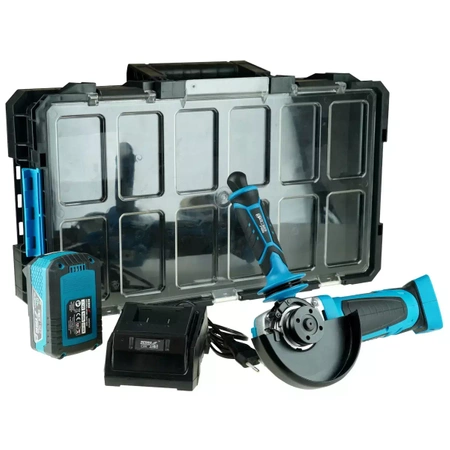

Battery toolkit

DEDRA SAS+ALL power tool set in a convenient sponge case

The DEDRA SAS+ALL DED7050 cordless angle grinder is a tool designed for cutting and grinding. The grinder's motor reaches a rotational speed of 9,500 rpm and is compatible with discs with a diameter of 125 mm and 115 mm. The grinder is equipped with a safety on/off switch that cuts the power supply when the pressure on the workpiece becomes too big. The quick disc clamping system, three-position side handle and rubberized grip all contribute to the sander's comfort of use. The disc changing key is located in the side handle, so that it is always within easy reach for the user. The casing is made of nylon with fiberglass admixture, which makes it more resistant to mechanical damage and UV radiation. Ergonomics and comfort are improved by the low weight of the unit and the integrated handle. The recommended rechargeable battery for this cordless angle grinder is a 4.0Ah DED7034.

Features:

• Disc diameter - 125 mm
• Disc bore - 22.2 mm
• Quick, tool-free adjustment of blade guard position
• Rubberised handle
• 3 side handle mounting positions
• Safety switch
• Disc changing key located on the side handle

Technical data:

• Voltage - 18V
• Rotational speed - 9500 RPM
• Disc mounting - M14 thread
• Disc/bore diameter - 125mm/22.2mm
• Weight - 2.1 kg
• Operating time using the 2. 0Ah DED7032 battery: 20 cuts of a 12 mm diameter steel rod, with a 1 mm thick disc

• Operating time using the 4. 0Ah DED7034 battery: 48 cuts of a 12 mm diameter steel rod, with a 1 mm thick disc

The DED7034 battery with a capacity of 4.0Ah is the basic product for powering rechargeable tools from the SAS+ALL family. The battery is made using Li-Ion technology, which allows the battery to be recharged any time without memory effect. Three LEDs on the battery casing indicate the current state of charge (100%/50%/charging needed). The bottom part of the housing is rubberised for greater comfort and safety against accidental damage.

Features:

• Bottom part of housing covered with rubber protects the battery from damage
• Battery charge indicator
• Li-Ion technology- no memory effect

Technical data:

• Voltage - 18V
• Weight - 0.7 kg
• Capacity - 4Ah
• Charging time with:


•  DED6939: 50 min

•  DED7038A: 140 min

•  DED7038: 120 min

•  DED7038V: 120 min

•  DED7039: 60 min
•  DED7039V: 60 min

The DED7038 charger is a dedicated product for charging batteries from the SAS+ALL line (DED7032, DED7034, DED7035). A 2.0Ah battery can be charged in 1 hour, a 4.0 Ah battery in 2 hours, a 5 Ah battery in 2.5 hours. The charger is equipped with two LEDs: one to indicate when the battery is connected to the mains, the other when the charging process is complete.

Features:

• LED indicating total battery charge
• Charging times: 2.0 Ah - 1h, 4.0 Ah - 2h , 5.0Ah - 2.5h

Technical data:

• Voltage- 20V
• Power- 60W
• Weight- 0.5kg

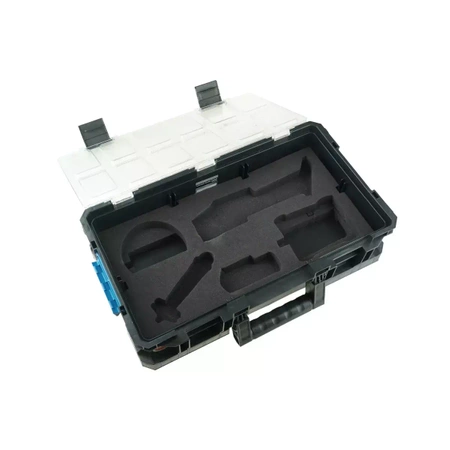

One of the modular boxes of the DEDRA SAS+ transport system. The box measures 526x307x126mm and has a capacity of 14.3L. The toolbox is finished with 25 and 40 mm thick sponge with pre-cut recesses for storing elements. The lid of the toolbox is made of transparent polycarbonate, giving a view of the items stored in the box. The box has a sturdy, comfortable handle made of high-quality plastic and the polyamide hooks guarantee a solid and durable fastening. The dense ribbing of the toolbox ensures high hardness and resistance to deformation.

Features:

• Convenient sponges to protect your tools
• Transparent lid
• Durable polyamide fastenings
• Convenient handle
• Modular toolbox for building customised DEDRA SAS+ kits

Technical data:

• Dimensions: 526x307x126mm
• Interior dimensions: 470x237x114mm (without sponges)
• Diagonal of the toolbox: 548 mm
• Capacity: 14.3l (without sponges)
