Wire and rolled section detector DEDRA MC0961

Wire and rolled section detector DEDRA MC0961 is a useful tool for both DIY enthusiasts and professional renovation teams. It is especially useful for those who are to renovate and are not familiar with the location of wires, pipes or rolled sections in the wall. Drilling through a plumbing pipe causes a lot of stress and the wall has to be broken down to remove the leakage. Drilling through a live wire, on the other hand, damages the electrical system, but also exposes the worker to higher risk of electrocution and loss of health or life. With the wire and rolled section detector, you can speed up your work and ensure your safety at the same time.

The DEDRA MC0961 wire and rolled section detector allows the detection of metal elements, rolled sections and live and neutral wires and wood. This helps to complete the technical documentation of the building. The easy-to-read backlit LED display allows easy interpretation of the detected elements, while a light indicator (in three colours: green, yellow and red) indicates when the element is found. In addition, the external detector has a beeper so you don't miss an alert.

A carrying case, belt clip, 9V battery and instruction manual are included.

Features:

• Clear, backlit white 2.4" LED screen
• Light indication of detection of the searched material in 3 colours: green/yellow/red
• Sound signal
• Automatic turn-off after 5 min of inactivity
• Detection of rolled sections, pipes and live and neutral wires

• Rubberised case elements improve grip
• Convenient pouch and belt clip
• Approximate depth of the detected element

Technical data:

• Power supply no: 9V DC (6F22)
• Display: LED 2.4"
• Display backlighting: yes
• Light indicator: yes (green, yellow, red)
• Audio alarm: yes
• Type of materials detected: wood/ metal/ ferromagnetic metal/ live wires
• Max. depth of detection:

  • live wires: 50 mm
  • non-ferrous metals e.g. copper tubes: 80 mm
  • ferromagnetic metals: 100 mm
  • wooden sections: 20 mm
• Leak-proof class P54
• Dimensions: 150x75x30 mm
• Weight: 215 g
• Operating temperature: -10℃ - 50℃
• Storage temperature:  -20℃ - 70℃

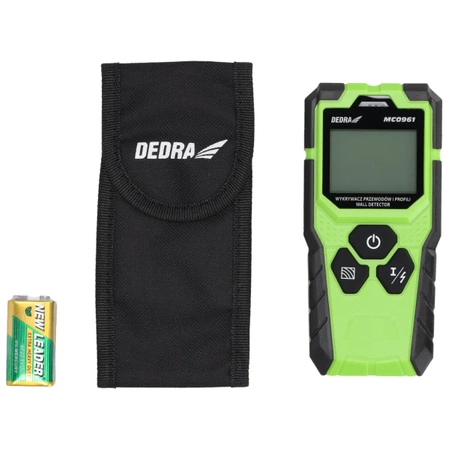

Included:

• Wire and rolled sections detector
• Belt clip (1 pc)
• Case (1 pc)
• 9V DC battery (1 pc)
