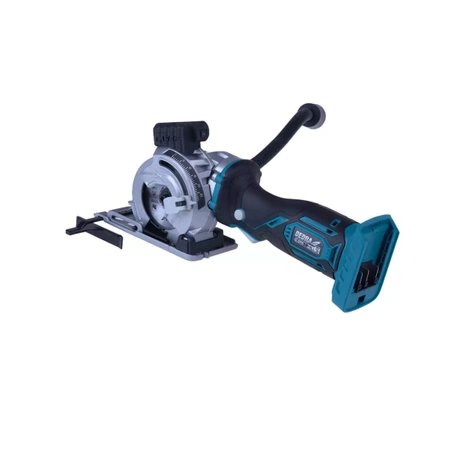

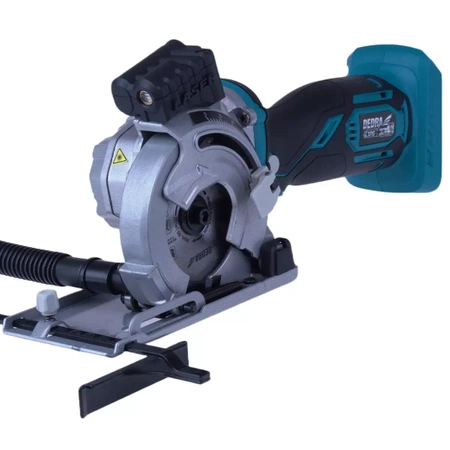

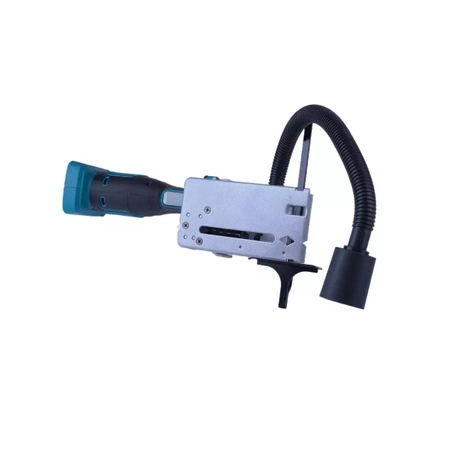

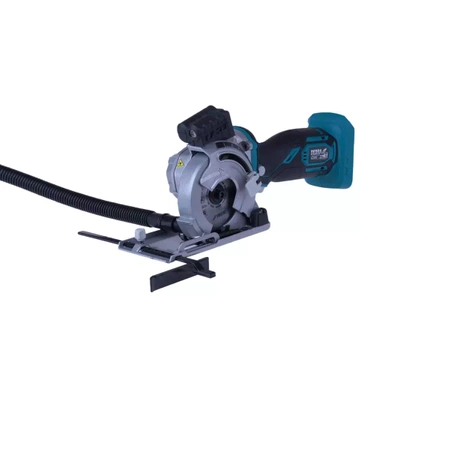

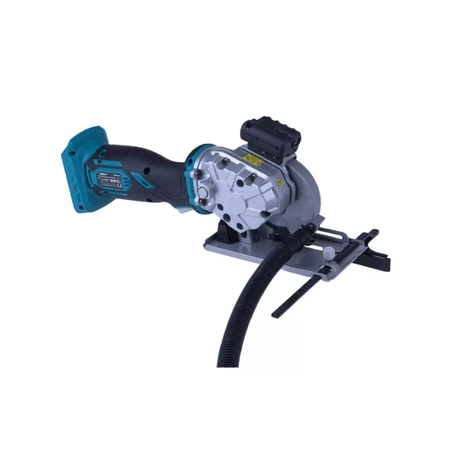

Cordless mini plunge saw 18V

Mini hand saw, DEDRA SAS+ALL DED7049

This tool is designed for cutting various materials. By using different discs, such as the DED70491, which is available as a separate set, we can cut stone elements, ceramic tiles, etc. The DED70492 and DED70493 can be used as a hand saw. Using toothed discs such as the DED70492 and DED70493, the hand-held saw can easily cut wooden elements up to a depth of 28 mm, while the 44-tooth version can cut aluminium up to a thickness of 3 mm. This is rounded off by the DED70494 multi-blade tungsten carbide blade for cutting materials such as wood, plastic and other plastics. The saw has a motor speed of 2950 rpm and is compatible with discs 89 mm in size with a disc opening of 10 mm. The machine is equipped with a foot and guide bar for flush cutting. A laser pointer on the upper part of the body also assists in guiding the cuttingline. The ergonomic shape of the handle reduces hand fatigue, while the rubberised parts improve user comfort and safety. Thanks to its low weight, the tool is highly mobile and extremely user-friendly. The casing is made of fiberglass nylon, which makes it more resistant to mechanical damage and UV radiation. Recommended batteries are 4. 0Ah DED7034 or 5Ah DED7035.

Features of the DEDRASAS+ALL DED7049 cordless mini hand saw :

• Disc diameter 89mm
• Disc bore diameter 10 mm
• Parallel cutting guide
• Aluminium guide foot
• Laser pointer
• Cutting of different materials: ceramic, wood, aluminium, plastic
• Low weight of the device

Technical data:

• Voltage-18V
• RPM-2950RPM
• Disc diameter-89/10 mm
• Maximum thickness of wood cut-28mm
• Maximum thickness of aluminium cut-3mm
• Maximum cutting thickness of ceramic tiles-8 mm
• Approximate operating time:
•  2Ah - DED7032: 15 mb (OSB cut 18mm; disc 89 mm/10 mm)

•  4Ah - DED7034: 35 mb (OSB cut 18mm; disc 89 mm/10 mm)

•  5Ah - DED7035: 43 mb (OSB cut 18mm; disc 89 mm/10 mm)

•  6Ah - DED6936: 52 mb (OSB cut 18mm; disc 89 mm/10 mm)
•  7Ah - DED6937: 70 mb (OSB cut 18mm; disc 89 mm/10 mm)

Completion:

• Mini-saw
• Wood blade 89x10 24 teeth (1pc)
• Disc for wood and aluminium 89 x10 44 teeth (1pc)
• Allen spanner for changing discs (1pc)
• Parallel guide (1pc)

 Product does not include battery and charger
