Hyfrophore 800W DED8875

Hydrofor DEDRA DED8875

A hydrofor is a crucial component of an effective and efficient water system powered by a domestic water pump.

What is a Hydrofor?
A hydrofor is essentially a pressure tank that, along with other hydraulic system components such as a pump, pressure switch, and valves, maintains the proper pressure in water pipes. Using a hydrofor prevents the pump from turning on too frequently every time a tap is opened. If you notice a pulsating flow of water when opening a tap, it indicates that the hydraulic system does not have a consistent water pressure. What you're seeing is the pump repeatedly turning on and off. To avoid this situation, well-designed hydraulic systems use a hydrofor with a pressure tank containing compressed air and a water "bladder" to ensure a steady water pressure.

The water pump only activates when the system's water pressure drops, significantly extending its lifespan. Additionally, you benefit from constant water pressure and reduced noise from the pump, which operates less frequently.

The DEDRA DED8875 hydrofor is powered by an 800W pump operating on 230V, the standard household voltage. It features an integrated water pump with a flow rate of 3700 l/h, ensuring consistent and stable water pressure. The hydrofor has a 19-liter steel tank, and the pressure switch maintains the water pressure in the system (1.5-3 bar), activating the pump when needed. A built-in manometer allows for pressure monitoring. The hydrofor and water pump are connected via a 1.2m power cable.

The base of the hydrofor includes feet with mounting holes for secure attachment to surfaces.

Features of the DED8875 Hydrofor:

• Hydrofor with integrated water pump for hydraulic system installation
• High-quality garden pump

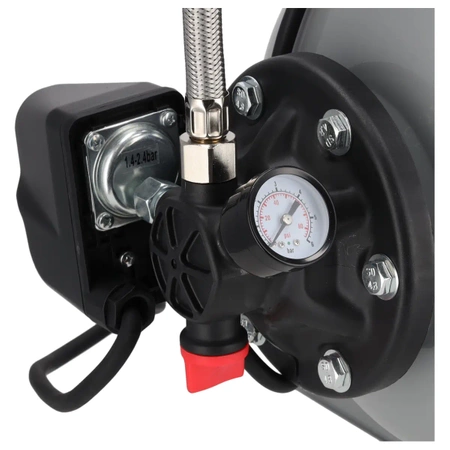

• Built-in pressure switch and manometer
• Durable and robust construction
• 19-liter steel tank
• Hermetically sealed housing and switch
• IPX4 protection class for user safety
• Excellent performance parameters - up to 40m water lifting

Technical Data for the DED8875 Hydrofor:

• Power Supply: 230V
• Material: Pump - aluminum + plastic; Hydrofor body - steel
• Power: 800W
• Power Cable Length: 1.2m
• Flow Rate: 3700 l/h
• Maximum Suction Depth: 8m
• Maximum Water Lifting Height: 40m
• Pressure Switch Range: 1.5-3 bar
• Connection Diameter: 1"
• Protection Class: IPX4

Included in the Package:

• Hydrofor
