Winter is coming, and with it a lot of nervous moments. To avoid these, it is worth getting the right tool. One of our rectifiers will be just the thing. Watch the video showing the full range of chargers.
Guide
DEPM022LFP
5902628711045

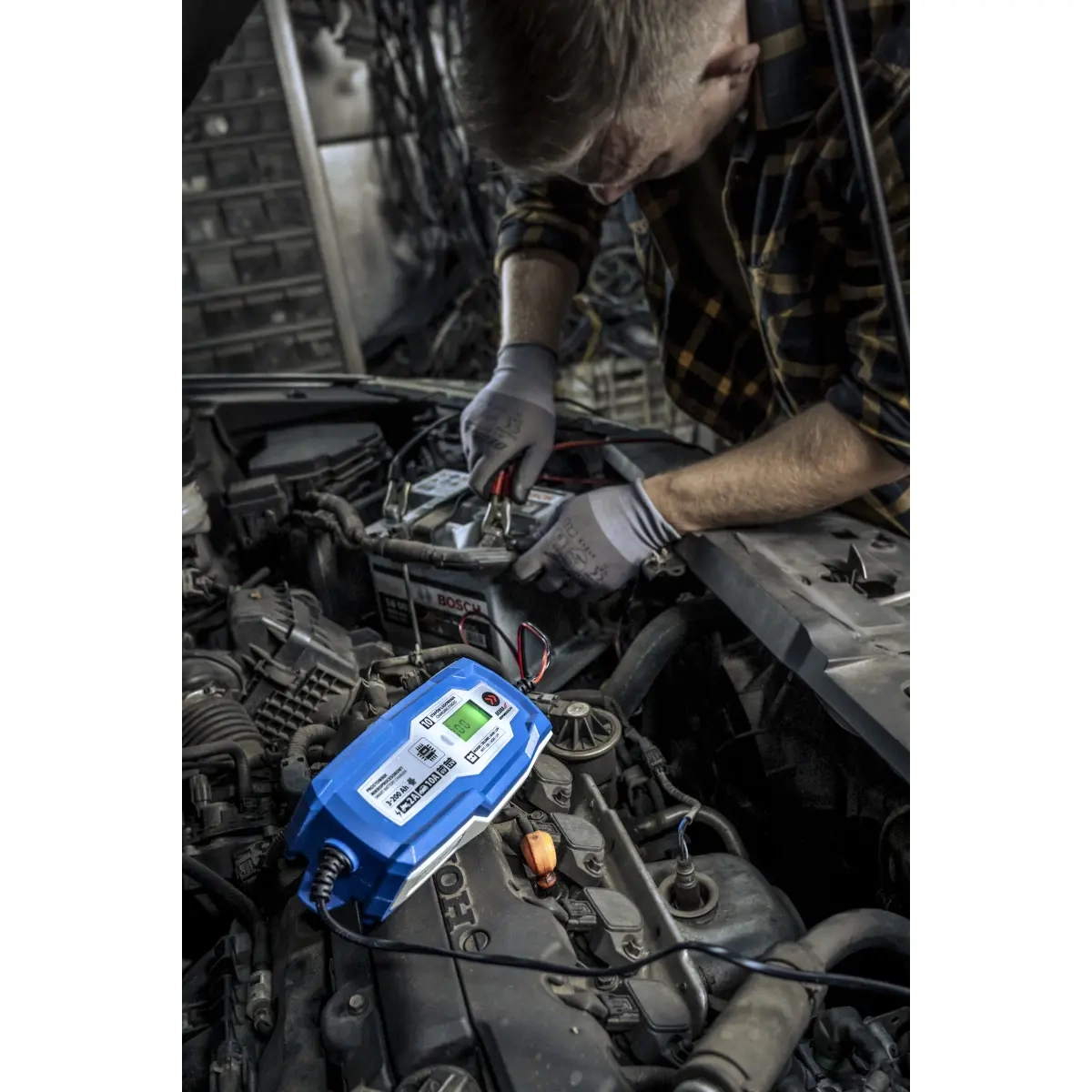

Battery rectifier 10A LCD, 6V/12V, 3-200Ah, LFP, O-ring
The DEPM022LFP rectifier is a device designed for charging lead-acid (wet), gel, AGM and LFP batteries with a voltage of 6/12V and a capacity of 3-200 Ah, which are used in motorbikes, cars, etc. The rectifier is designed for use in households, service workshops and amateur work. The device has a compact casing. Thanks to a microprocessor, the rectifier cycles the battery itself, adapting the stages of operation to the condition of the battery.
Features:
- Compact housing
- 10 charging stages:
- Diagnosis
- Desulfurization
- Stimulation
- Pulse charging
- Basic charging
- Slow charging
- Maintenance charging
- Final charging
- Battery analysis
- Voltage support
- Safety measures:
- Anti-spark
- Reverse polarity protection
- Battery overload protection
- Short-circuit protection
- Pregnancy protection
Technical data:
- Power supply voltage [V]: 230 V
- Frequency: 50kHz
- Charging power: 160 W
- Charging voltage and current level: 6V = 2A, 12V = 10A
- Minimum battery capacity: 3 Ah
- Maximum battery capacity: 200 Ah
- Protection class: IP 65
Included:
- Rectifier
- Clamping tip (1pc)
- Ring tip (1pc)
Brand
Symbol
DEPM022LFP
Producer code
5902628711045
Warranty
Symbol
DEPM022LFP
Charging power [W].
160
Voltage [V].
230
Charging voltage/voltage [V/A].
6/2; 12/10
Battery capacity [Ah]
3-200
Type
Microprocessor rectifier
Series
DEDRA
Overload protection
YES
Overcharge protection
YES
Spark protection
YES
Short-circuit protection
YES
Reverse polarity protection
YES
Power supply
Mains
