A532062
5902628003348

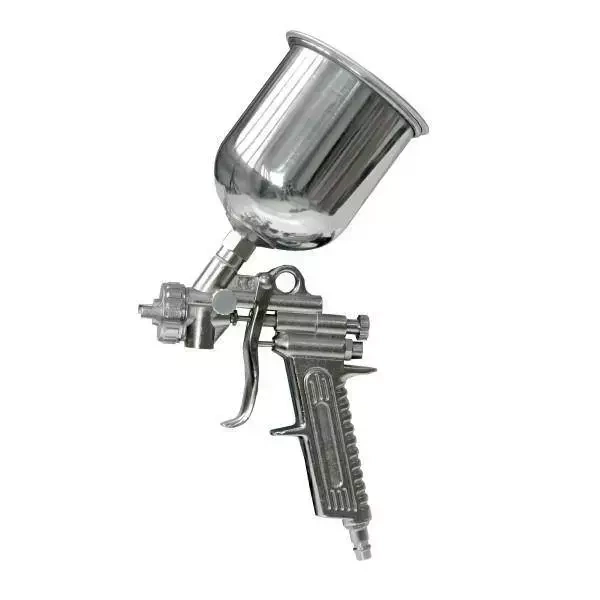

Spray gun alu cup
The A532062 spray gun with a top tank is designed for painting with solvent-based and water-based paints, such as latex paints, acrylics, stains, and metal primers.
The gun features a 500 ml top-mounted tank. It includes a rear dial for adjusting the amount of paint supplied to the gun, and a pattern adjustment dial at the front for controlling the spray pattern.
Features:
- Easy-to-clean aluminum tank
- Sturdy construction
- Adjustable paint flow
- Adjustable spray pattern
Technical data:
- Connector diameter: 1/4''
- Nozzle diameter: 1.5 mm
- Recommended working pressure: 3 - 5 bar (43.5 - 72.5 psi)
- Maximum allowable pressure: 7 bar (100 psi)
- Cup capacity: 500 ml
- Air consumption: 118-200 l/min
- Spray width: 180 - 250 mm
- Weight: 0.70 kg
Brand
Symbol
A532062
Producer code
5902628003348
Warranty
Symbol
A532062
Maximum working pressure [bar]
7
Tank capacity [ml]
500
Air flow [l/min]
118-200
Type
Air guns
Nozzle size [mm]
1,5
Series
PANSAM
Painting width [mm]
180-250
Recommended working pressure [bar]
3-5
