DED7812
5902628781208

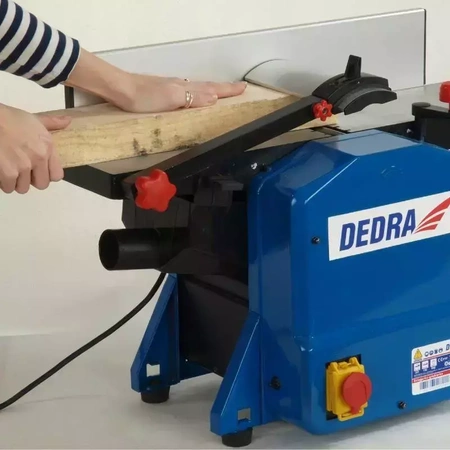

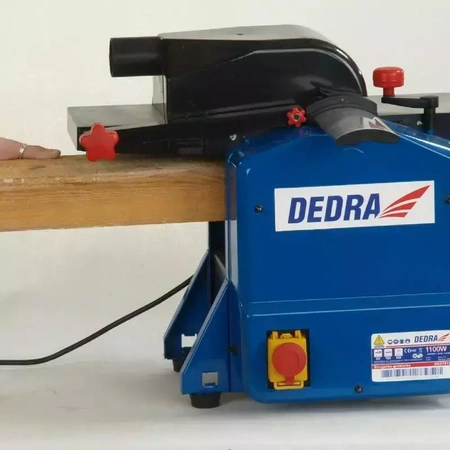

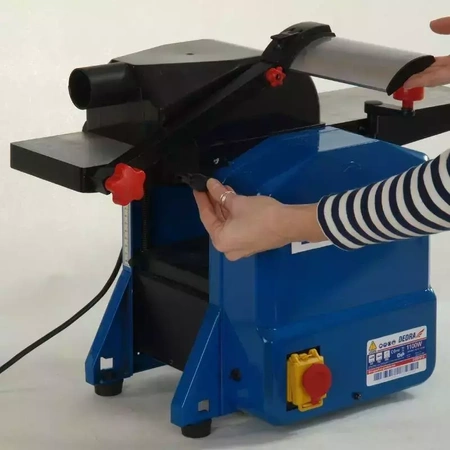

Jointer/planer 1100W
Features
- Regulation of shoe thickness

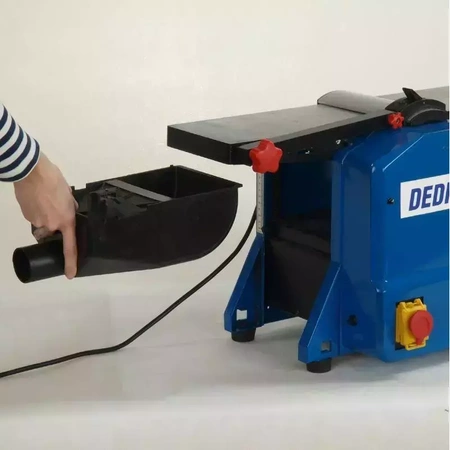

- Possibility to connect chip extractor
- Overload switch
- Solid running
- Impossible to adjust the guide
Technical data
- Voltage: 230V
- Frequency: 50 Hz
- Power: 1100 W
- Rotational speed: 8500 rpm
- Number of blades: 2
- Weight: 23 kg
Technical data of the planer:
- Maximum planning width: 152 mm
- Maximumt a k e - u p : 2 mm
- Dimension oft h e slide: 470 x80 mm
- Range of tilt of the guide days: 90°-135°
- Table size: 660 x152 mm
Technical data of the thicknesser:
- Maximum planning width: 152 mm
- Maximum material height: 120 mm
- Maximumt a k e - u p : 2 mm
Completion
- Thicknessing machine
- Longitudinal guide
- Blade guard with chip extraction nozzle
Brand
Symbol
DED7812
Producer code
5902628781208
Warranty
Symbol
DED7812
Number of blades
2
Maximum thickness of thicknesser trim [mm]
2
Maximum thickness of planer trim [mm]
2
Maximum speed [rpm]
8500
Maximum planing width of thicknesser [mm]
152
Maximum planer planning width [mm]
152
Maximum height of thicknesser material [mm]
120
Power [W].
1100
Voltage [V].
230
Type
Thickness planer
Series
DEDRA
Tabletop dimensions [mm]
660x152
Dimension of guide bar [mm]
470x80
Range of guide bar inclination [°]
90-135
Power supply
Mains
