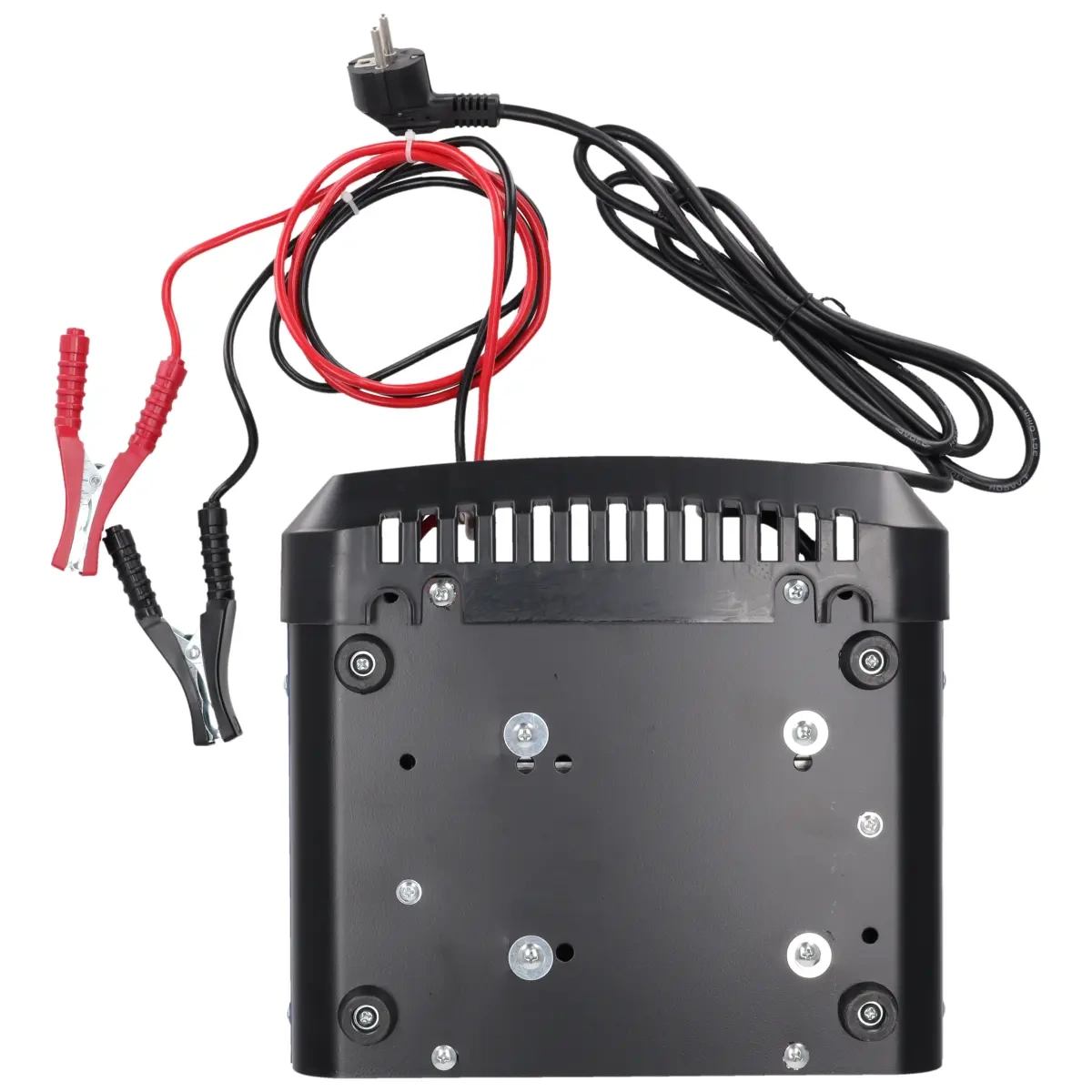

Rectifier START function 12/24V 30-300Ah DEP030
Rectifier START function 12/24V 30-300Ah DEP030
The DEP030 rectifier is designed for charging lead-acid batteries with a voltage of 12/24 V and a capacity of 20-350 Ah, with free electrolyte flow, that are installed in motorbikes, cars, vans, yachts, etc. The DEP030 recitifier has the "BOOST" fast charging mode, which is recommended if a quick recharge of the battery is required.
The "START" function is used to start a fully discharged battery.
In order o use the START function:
- Turn the device on
- Set an appropriate battery voltage with a voltage switch
- Charge using the BOOST function for about 10 minutes accordingly to the mode described on the panel (3 sec. of charging, around 120 sec. of a break, 5 cycles)
- Turn the key in the car's ignition switch
The START should be carried out exactly as written above.
Before the using the START function, the user needs to read the instruction and recommendations of the car.
Features:
- BOOST function - fast charging
- START function for starting fully discharged batteries
- Current intensity indicator
- Cable pocket
- Compact housing
- Sturdy transport handle
Technical data:
- Power supply voltage [V]: 230 V
- Frequency: 50kHz
- Charging power: 950 W
- Output voltage: 12/24V
- Output current: 25/30A
- Minimum battery capacity: 20 Ah
- Maximum battery capacity : 350 Ah
- Current protection: 10 A
- BOOST mode: YES
- START mode: YES.
Included:
- Rectifier
- Spare fuse
Brand
Symbol
DEP030
Producer code
5902628701022
Warranty
Symbol
DEP030
Charging power [W].
950
Voltage [V].
230
Charging voltage/voltage [V/A].
12/25; 24/30
Battery capacity [Ah]
20-350
Type
Rectifier
Series
DEDRA
Short-circuit protection
YES
Reverse polarity protection
YES
Power supply
Mains
