DED7831
5902628783103
Tilecutting machine 800W

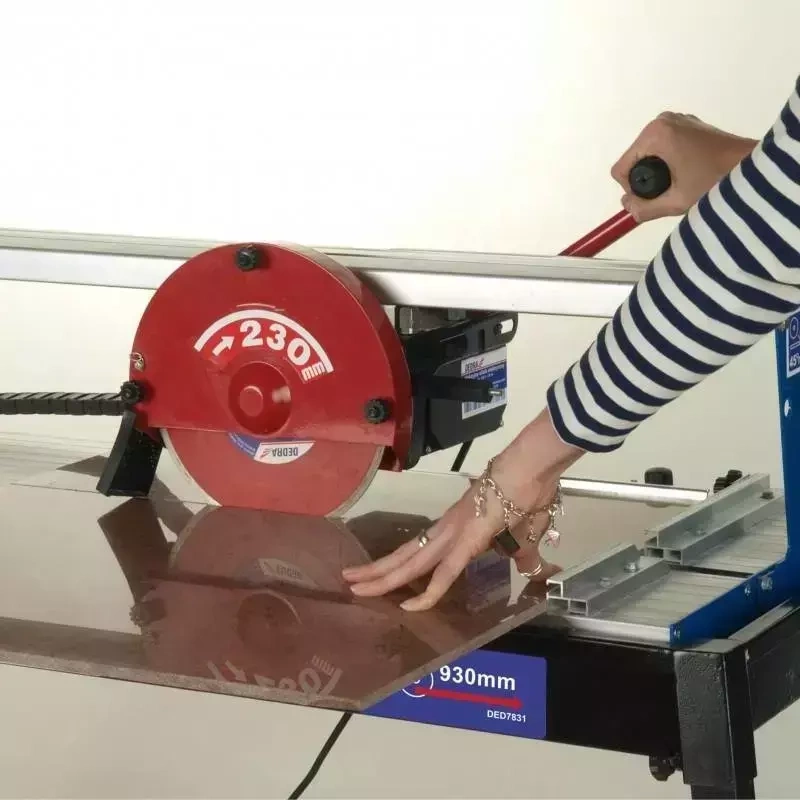

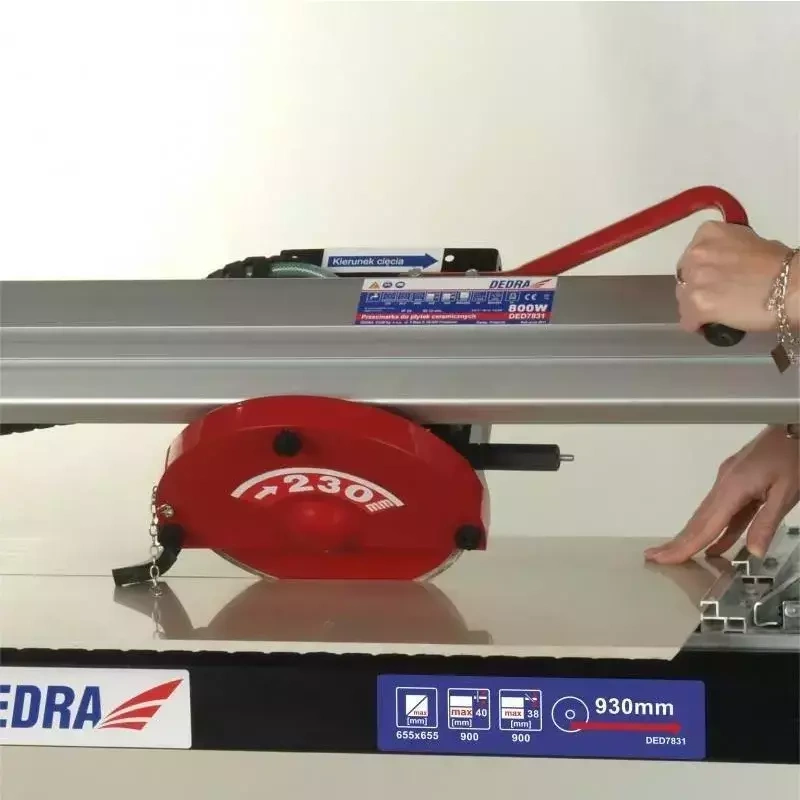

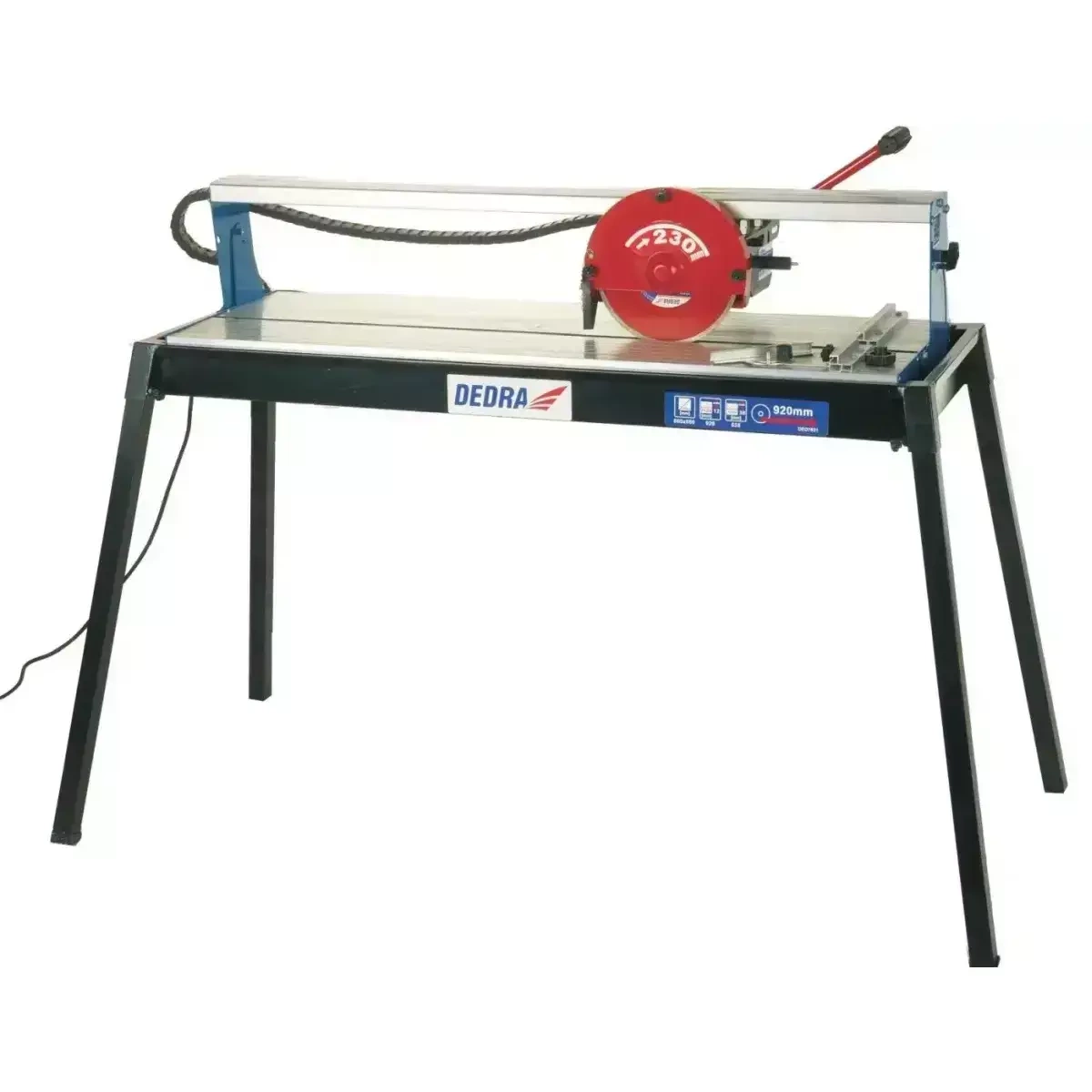

The DEDRA DED7831 tile cutter is a device designed for cutting and processing ceramic materials, featuring a sliding head. It comes with a worktable measuring 1170x394 mm and a maximum cutting length of 930 mm, supported by an 800-watt motor and a highly efficient blade cooling system.
The cutter employs a wet processing system using water as both a cooling and dust-suppressing agent, applied directly to the diamond blade. This system significantly reduces debris spread during operation.
Together, these features make it a highly versatile and practical tool.
Features:
- Work surface 1170 x394mm
- Max. cutting length 930 mm at 12 mm material thickness
- Max. cutting length at 45-degree angle 900mm at 38mm material thickness
- Max material thickness 40 mm
Technical data:
- Motor power 800W
- Power supply 230v/50 Hz
- Disc diameter 230/25, 4 mm
- Rotational speed 2950 rpm
- Weight 32 kg
Brand
Symbol
DED7831
Producer code
5902628783103
Warranty
Symbol
DED7831
Water cooling
YES
Maximum cutting length at an angle of 45° [mm]
900
Maximum cutting length at an angle of 90° [mm]
930
Maximum cutting thickness [mm]
40
Maximum thickness of cutting at an angle of 45° [mm]
12
Maximum thickness of cutting at an angle of 90° [mm].
38
Maximum speed [rpm]
2950
Power [W].
800
Voltage [V].
230
Application
Tiling, stoneware
Type
Electric tile machine
Series
DEDRA
Disc bore diameter [mm]
25,4
Disc diameter [mm]
230
Tabletop dimensions [mm]
1170x394
Power supply
Mains
