DED7824
5902628782403

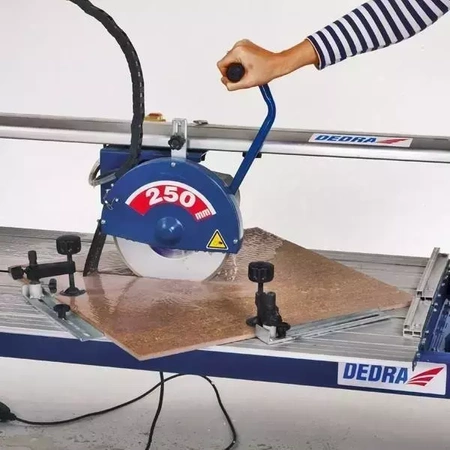

Tilecutting machine 1,1kW
Features:
- Work surface 1060 x630mm
- Max. cutting length 1020 mm at 38 mm material thickness
- Max. cutting length at 45 degrees: 1020 mm with a material thickness of 25 mm
- Maxthickness of cut material 60 mm
Technical data:
- Motor power 1100W
- Power supply 230v/50 Hz
- Disc diameter 250/25, 4 mm
- Rotational speed 2950 rpm
- Working height 1260mm
- Weight 55kg
- Cutting machine with workbench
- Diamond blade 250mm
Brand
Symbol
DED7824
Producer code
5902628782403
Warranty
Symbol
DED7824
Water cooling
YES
Maximum cutting length at an angle of 45° [mm]
1020
Maximum cutting length at an angle of 90° [mm]
1020
Maximum cutting thickness [mm]
60
Maximum thickness of cutting at an angle of 45° [mm]
25
Maximum thickness of cutting at an angle of 90° [mm].
38
Maximum speed [rpm]
2950
Power [W].
1100
Voltage [V].
230
Application
Tiling, stoneware
Type
Electric tile machine
Series
DEDRA
Disc bore diameter [mm]
25,4
Disc diameter [mm]
250
Tabletop dimensions [mm]
1060x630
Power supply
Mains
