DED7707
5902628770707
Drill press 350W,

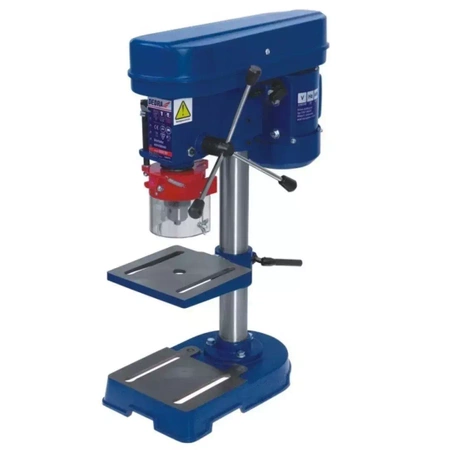

The DED7707 bench drill press is designed for drilling holes in materials such as wood, wood-based materials, plastics, and metals. The drill press is equipped with two work tables. The height of one of the tables can be adjusted using a knob, and it can also be tilted within a 0-90˚ range. The drill press features a five-speed transmission, allowing you to select the appropriate rotational speed for drilling.
Features of the DED7707 bench drill press:
- Five-speed settings
- Sturdy steel construction
- Two work tables
- Adjustable table tilt 0-45˚
- Drill spindle guard
Technical data of the DED7707 bench drill press:
- Voltage: 230V / 50 Hz
- Power: 350W
- Rotational speed range: 580-2650 RPM
- Spindle travel: 50 mm
- Chuck diameter range: 3-13 mm
- Movable table dimensions: 160x160 mm
- Lower table dimensions: 290x190 mm
- Clearance to the table: 250 mm
- Drive belt length: 690 mm (K-690)
- Weight: 20 kg
Set includes:
- Drill chuck (1 piece)
- M10 x 25 screw (3 pieces)
- Allen key s=3 (1 piece)
- Washer 10 (3 pieces)
- Allen key s=5 (1 piece)
- Lever (3 pieces)
Brand
Symbol
DED7707
Producer code
5902628770707
Warranty
Symbol
DED7707
Number of speeds
5
Maximum speed [rpm]
2650
Power [W].
350
Voltage [V].
230
Clearance [mm]
250
Type
Table drill
Series
DEDRA
Spindle stroke [mm]
50
Handle type
MORSE
Weight [kg].
19
Dimensions of lower table [mm]
290x190
Dimensions of moving table [mm]
160x160
