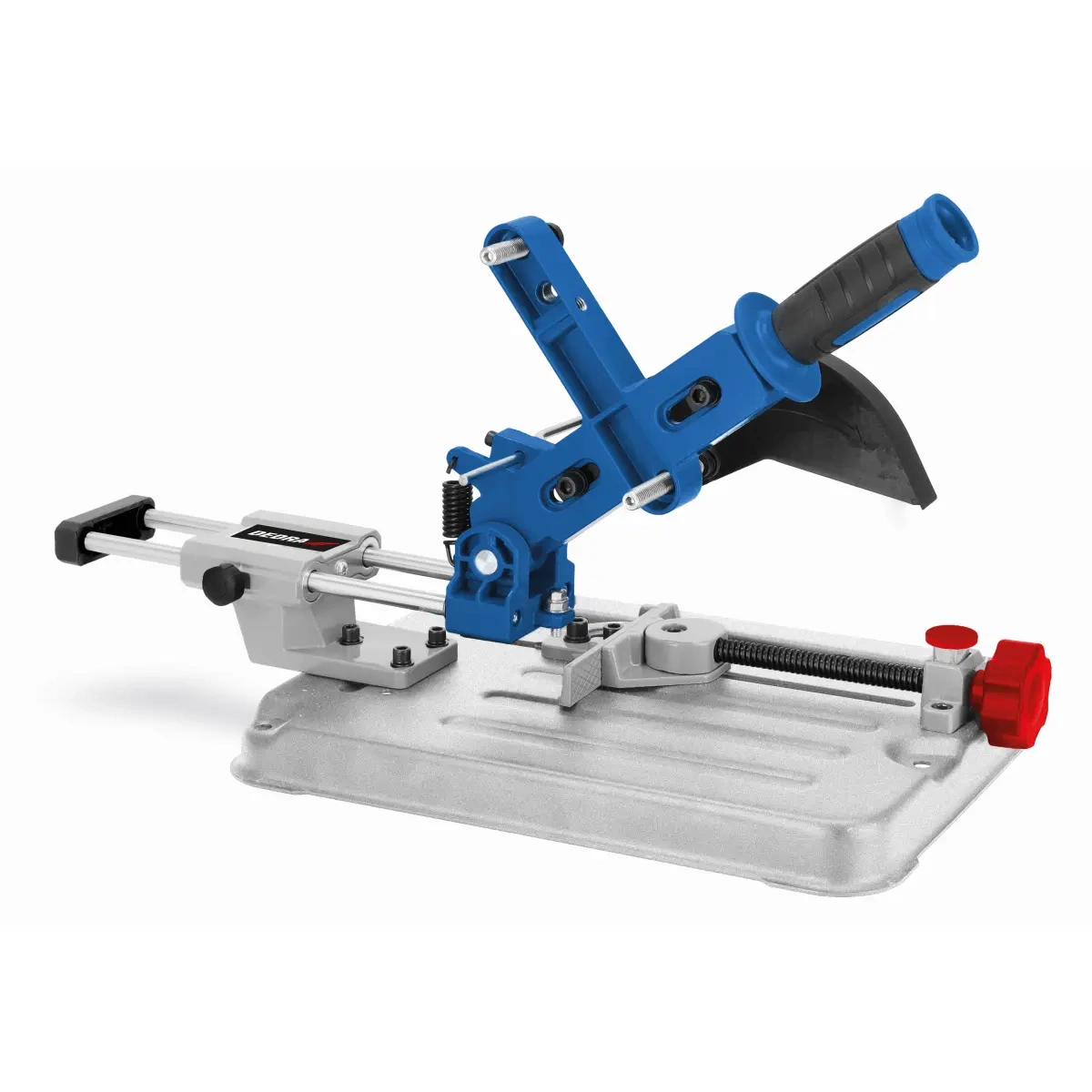

Stand for angle grinder with feed (115-125 mm) DEDRA YKS039

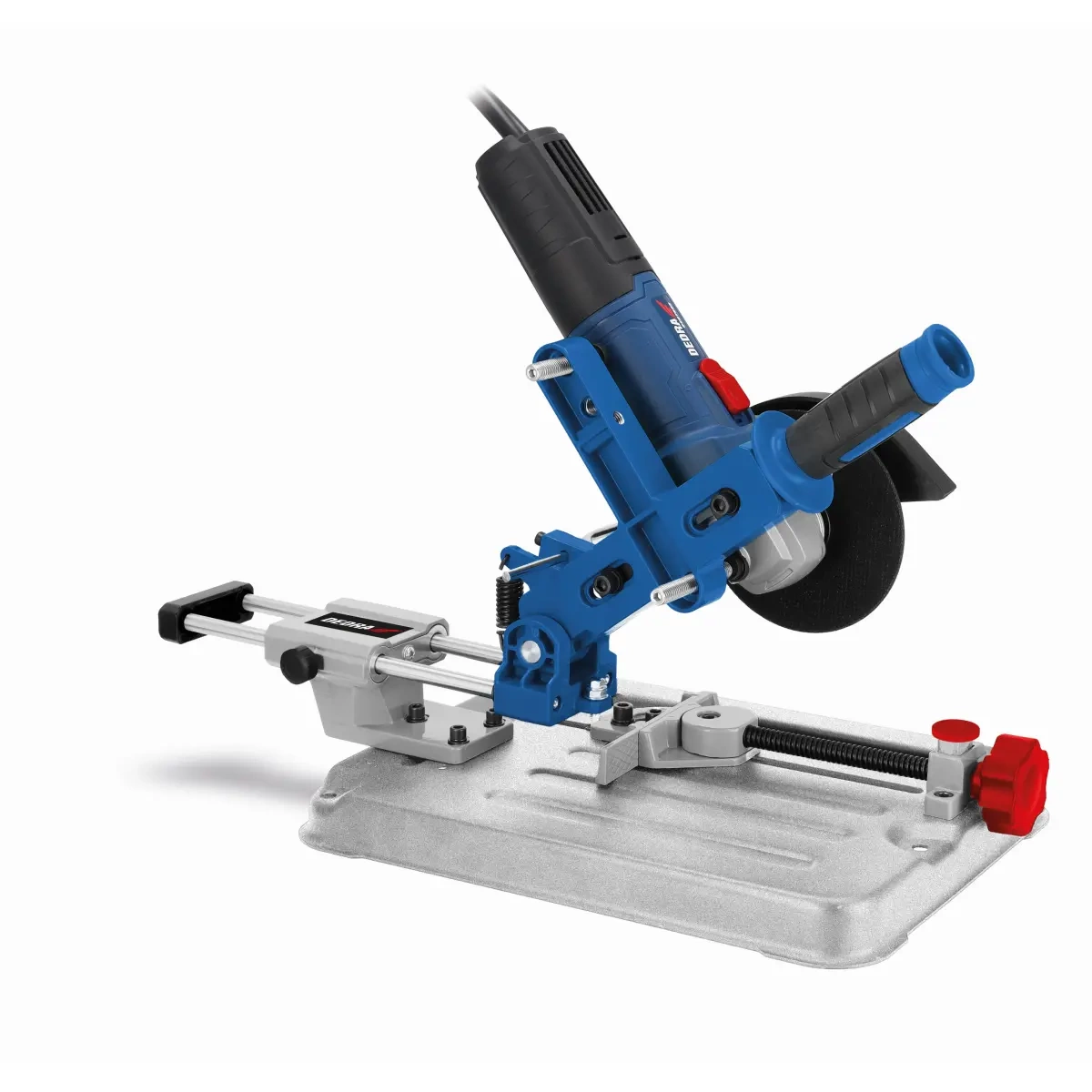

Illustrative photo. The angle grinder is not included in the set.

The DEDRA YKS039 angle grinder stand with feed is a useful accessory for users of grinders with a disc diameter between 115 and 125 mm.

It allows stable mounting of the tool and precise guidance of the cut while maintaining repeatable settings. Using the stand increases accuracy and safety of work, especially when cutting at an angle or to a specified depth.

The stand body is made of lightweight yet durable aluminum. The steel base ensures stability during operation. Compact dimensions and matched spacing of the mounting elements make the stand suitable for both workshop and field use.

The stand is equipped with a feed locking mechanism that allows the guide to be fixed in a specific position. This enables the user to precisely position the grinder over the material before starting the cut, increasing accuracy and eliminating the risk of accidental tool movement. This lock is especially useful for serial cuts where repeatable settings are important.

Another important element is the cutting depth limiter. It allows setting the maximum immersion of the disc into the material, protecting against cutting too deeply into the workpiece. The grinder guide moves along two rods using sliding bearings. This solution provides smooth, linear motion without jerks or play.

An integrated spring mounted in the guide mechanism is responsible for the automatic return of the grinder to the starting position after the cut is completed. When the user releases pressure, the spring lifts the guide upwards, eliminating the need for manual tool retraction.

Features of the DEDRA YKS039 angle grinder stand with feed:

• Feed lock
• Cutting depth lock
• Spring enabling automatic return of the grinder to the starting position
• Sliding bearings on the guide
• Adjustable disc guard
• Button releasing the rotary movement of the screw for quick material clamping
• Sliding bearings on the guide

Technical specifications of the DEDRA YKS039 angle grinder stand with feed:

• Material:
  • body: aluminum
  • base: steel
• Base dimensions: 34.5 x 25.8 x 3 cm
• Range:
  • disc diameter: 115-125 mm
  • guide feed: 145 mm
• Cutting parameters:
  • length (at 90°): 145 mm
  • depth (at 90°): 30 mm
  • angle: 0-45°
• Guide rod diameter: 150 mm
• Spacing of material clamping clamps: 150 mm
• Compatibility: angle grinders (115/125 mm)
• Weight: 3.9 kg

Package contents:

• Angle grinder stand with feed [1 pc]
