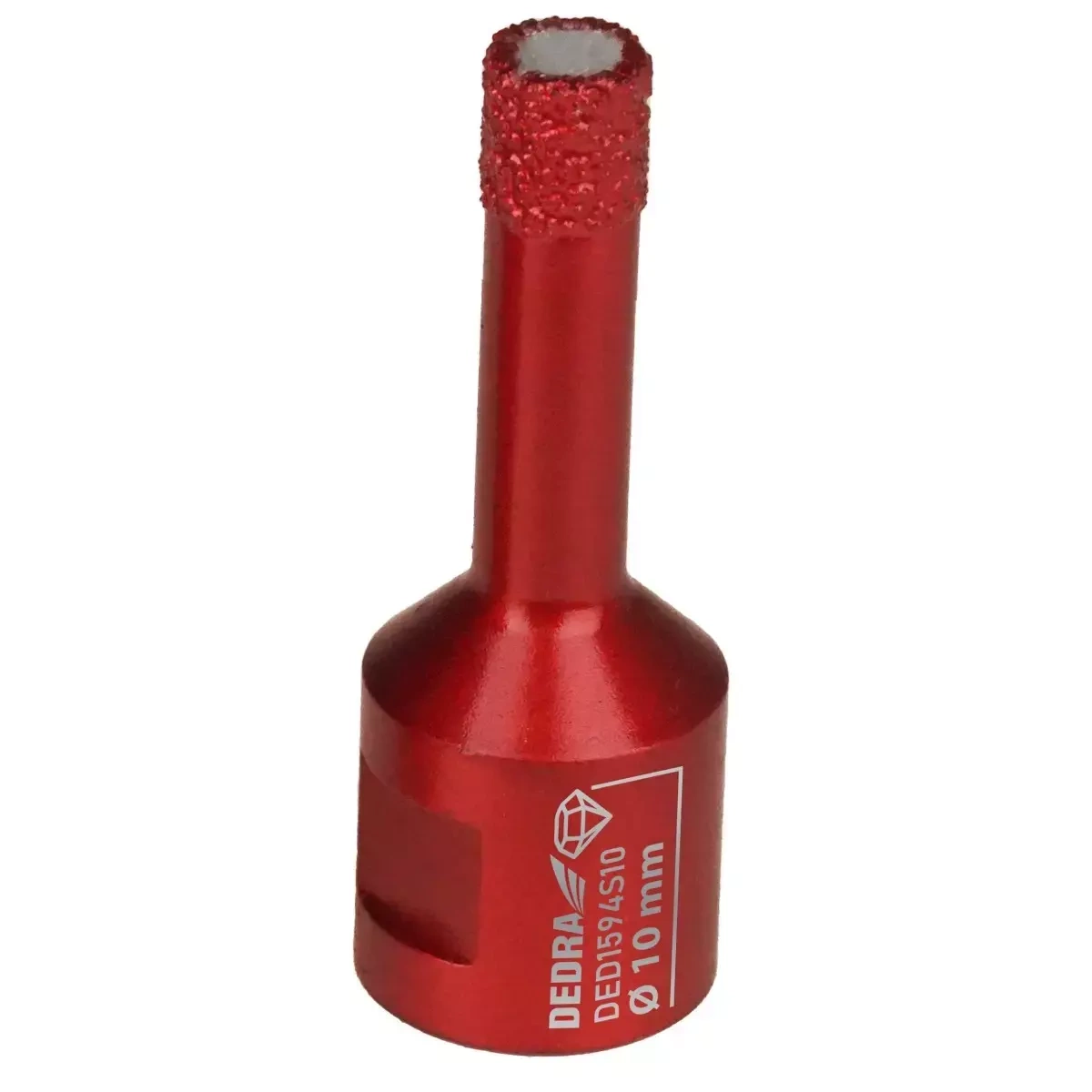

Vacuum brazed diamond crown M14 10mm

The Vacuum Brazed diamond core bit is designed for drilling holes in various materials including ceramic tiles, porcelain stoneware, concrete, brick, glass, asphalt, laminates, PVC, steel, non-ferrous metals, and wood. The Vacuum Brazed technology ensures a high level of cleanliness and durability in the bond between the diamond grains and the core. The absence of welded or laser-welded diamond segments, which could detach from the core during operation, ensures the tool's safety. The M14 thread allows the core bit to be mounted on any angle grinder. VB core bits are suitable for both dry and wet drilling.

The VB DED1594S series offers even higher cutting speed and enhanced durability. Core bits with a diameter of 20 mm and above feature ventilation holes that improve heat dissipation, significantly impacting work comfort. Cooling is crucial during drilling with Vacuum Brazed core bits, which are typically used without water. These core bits are ideal for professional drilling of holes for water installations, drains, electrical boxes, and more.

Technical Data:

• Core Bit Diameter: 10 mm
• Core Bit Length: 60 mm
• Grit Type: Diamond
• Mounting Type: M14

Learn about the advantages of DEDRA vacuum brazed diamond crowns
