Bi-metal hole saws set
Set of 2 chucks and 11 bi-metal hole saws for making holes inmaterials such as metal, stainless steel, non-ferrous metals, aluminium, wood, plastic. The holes are made of high-quality HSS high-speed steel. The appropriate rake angle and tooth spacing ensure efficient and fast drilling. When using the hole saw, it is important to use the correct coolant and adjust the cutting speed to the material in which the hole is to be drilled.

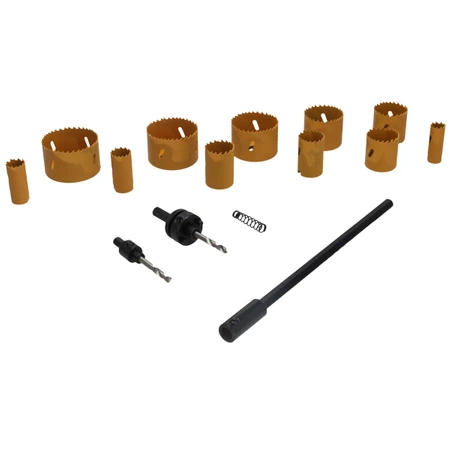

The 08 WZ04 set contains 15 elements:
- 08W019-1 x bi-metal hole saw diam.19 mm/3/ 4", depth 37 mm
- 08W022-1 x bi-metal hole saw diameter 22 mm/1", depth 37 mm
- 08W025-1 x bi-metal hole saw diam.25 mm/1", depth 37 mm
- 08W032-1 x Bi-metal hole saw diameter 32 mm/1-1/4 ", depth 34 mm
- 08W035-1 x bi-metal hole saw diameter 35 mm/1-3/8 ", depth 34 mm
- 08W040-1 x bi-metal hole saw diameter 40 mm/1-9/16", depth 34 mm
- 08W044-1 x bi-metal hole saw diameter 44 mm/1-3/4 ", depth 34 mm
- 08W051-1 x bi-metal hole saw diameter 51 mm/2", depth 34 mm
- 08W060-1 x bi-metal hole saw diameter 60 mm/2-3/8 ", depth 34 mm
- 08W064-1 x bi-metal hole saw diameter 64 mm/2-1/2 ", depth 34 mm
- 08W068-1 x bi-metal hole saw diam.68 mm/2-11/ 16", depth 34 mm
- 08W001-1 x HEX 3/ 8" chuck for 14-30 mm diameter holes
- 08W002-1 x HEX 7/ 16" chuck for apertures with an average of 32-210 mm
- -1 x Spring (ejection)
- -1 x Extension piece 12'' (for 7/16" Hex handle)
Brand
Symbol
08WZ04
Producer code
5902628084927
Symbol
08WZ04
Material
Bi-Metal
Application
Metal, stainless steel, non-ferrous metals, aluminum, wood, plastic
Type
BiMetal hole saw
Series
DEDRA
Diameter [mm]
19, 22, 25, 32, 35, 40, 44, 51, 60, 64, 68
Height [mm]
37 (diameters 19-25mm); 34 (diameters 32-68mm)
