07F201B
5902628070425
Holder
The wavy edge wood router bit with bearing is made from high-speed steel (HSS). It features a two-blade cutter crafted from cemented carbide. This router bit is designed for machining solid wood as well as plywood, particle board, and MDF. It includes a guide bearing and has a head coated with heat-resistant hammer paint. The shank diameter is 8 mm.
Features:
- Made from HSS steel
- Suitable for wood and wood-based materials
- Cutter made from tungsten carbide
- Includes a guide bearing
- Head coated with hammer paint
- Cylindrical shank

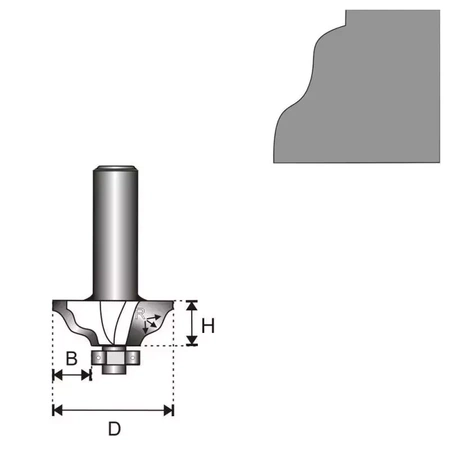

Technical data:
- Cutting Diameter (D): 28.8 mm
- Cutting Height (H): 15.9 mm
- Cutting Depth (B): 7.92 mm
- Cutter Head Radius (R): 3.96 mm
- Shank Diameter: 8 mm
- Number of Cutting Edges: 2
- Cutter Material: Tungsten carbide
Brand
Symbol
07F201B
Producer code
5902628070425
Symbol
07F201B
Material
HSS high speed steel
Application
For wood
Type
Wavy edge end mill
Series
DEDRA
Working diameter [mm]
28,8
Shank diameter [mm].
8
Working height [mm]
15,9
