07F191A
5902628070395
Holder
The Roman esoteric wood router bit with bearing is made from high-speed steel (HSS). It features a two-blade cutter made from cemented carbide. This bit is designed for machining solid wood as well as plywood, particle board, and MDF. It is equipped with a guide bearing and has a head coated with heat-resistant hammer paint. The shank diameter is 6 mm.
Features:
- Made from HSS steel
- Suitable for wood and wood-based materials
- Cutter made from tungsten carbide
- Includes a guide bearing
- Head coated with hammer paint
- Cylindrical shank
Technical data:

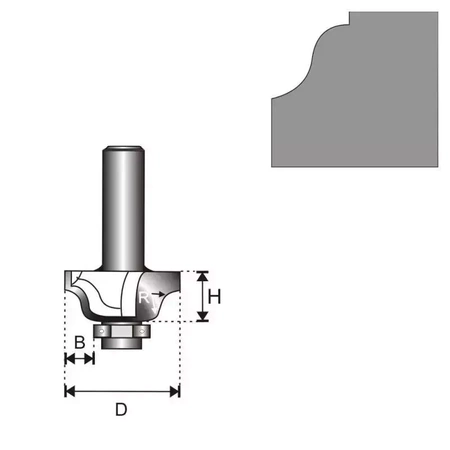

- Cutting Diameter (D): 25.7 mm
- Cutting Height (H): 9.7 mm
- Cutting Depth (B): 6.35 mm
- Cutter Head Radius (R): 3.17 mm
- Shank Diameter: 6 mm
- Number of Cutting Edges: 2
- Cutter Material: Tungsten carbide
Brand
Symbol
07F191A
Producer code
5902628070395
Symbol
07F191A
Material
HSS high speed steel
Application
For wood
Type
Double round end mill
Series
DEDRA
Working diameter [mm]
25,7
Shank diameter [mm].
6
Working height [mm]
9,7
