07F183C
5902628070388
Holder 12 D 38,4 H 17,5 R 6,35 B 12,7 mm
The Classic II wood router bit with bearing is made from high-speed steel (HSS). It features a two-blade cutter made of cemented carbide. This bit is designed for machining solid wood, as well as plywood, particle board, and MDF. It is equipped with a guide bearing and has a head coated with heat-resistant hammer paint. The shank diameter is 12 mm.
Features:
- Made from HSS steel
- Suitable for wood and wood-based materials
- Cutter made of tungsten carbide
- Includes a guide bearing
- Head coated with hammer paint
- Cylindrical shank

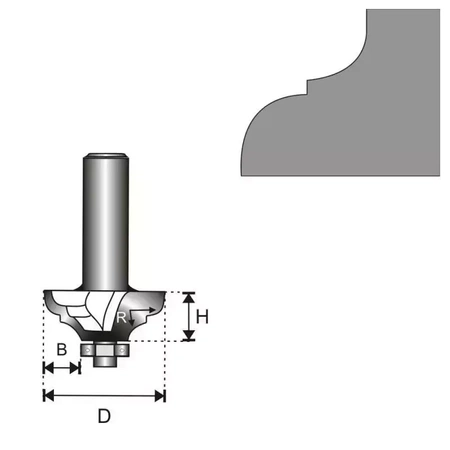

Technical data:
- Cutting Diameter (D): 38.4 mm
- Cutting Height (H): 17.5 mm
- Cutting Depth (B): 12.7 mm
- Cutter Head Radius (R): 6.35 mm
- Shank Diameter: 12 mm
- Number of Cutting Edges: 2
- Cutter Material: Tungsten carbide
Brand
Symbol
07F183C
Producer code
5902628070388
Symbol
07F183C
Material
S2
Application
For wood
Type
Classic bearing mill
Series
DEDRA
Working diameter [mm]
38,4
Shank diameter [mm].
12
Working height [mm]
17,5
