07F182B
5902628070371
Holder
The Classic II wood router bit with bearing is made from high-speed steel (HSS). It features a two-blade cutter made of cemented carbide. This bit is suitable for machining solid wood as well as plywood, particle board, and MDF. It includes a guide bearing, and the head is coated with heat-resistant hammer paint. The shank diameter is 8 mm.
Features:
- Made from HSS steel
- Designed for wood and wood-based materials
- Cutter made of tungsten carbide
- Guide bearing included
- Head coated with hammer paint
- Cylindrical shank

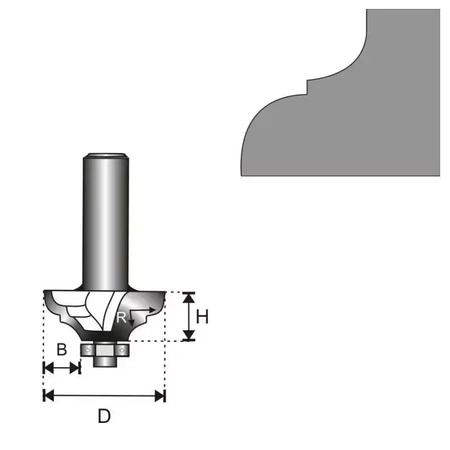

Technical data:
- Cutting Diameter (D): 35.2 mm
- Cutting Height (H): 15.9 mm
- Cutting Depth (B): 11.1 mm
- Cutter Head Radius (R): 5.55 mm
- Shank Diameter: 8 mm
- Number of Cutting Edges: 2
- Cutter Material: Tungsten carbide
Brand
Symbol
07F182B
Producer code
5902628070371
Symbol
07F182B
Material
S2
Application
For wood
Type
Classic bearing mill
Series
DEDRA
Working diameter [mm]
35,2
Shank diameter [mm].
8
Working height [mm]
15,9
