07F172B
5902628070340

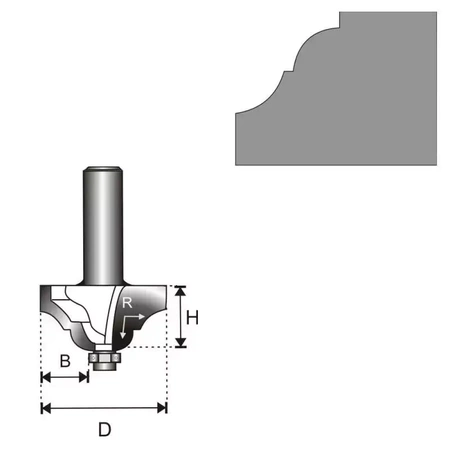

Holder 8 D 34,9 H 15 R 5,6 B 12,9 mm
The wood router bit with a double Roman profile and bearing is made from high-speed steel (HSS). It features a two-blade cutter made of cemented carbide. This router bit is designed for machining solid wood as well as plywood, particle board, and MDF. The bit is equipped with a guide bearing and the head is coated with heat-resistant hammer paint. The shank diameter of the bit is 8 mm.
Features:
- Made from HSS steel
- Designed for wood and wood-based materials
- Cutter made of tungsten carbide
- Guide bearing included
- Head coated with hammer paint
- Cylindrical shank
Technical data:
- Cutting Diameter (D): 34.9 mm
- Cutting Height (H): 15 mm
- Cutting Depth (B): 12.9 mm
- Cutter Head Radius (R): 5.6 mm
- Shank Diameter: 8 mm
- Number of Cutting Edges: 2
- Cutter Material: Tungsten carbide
Brand
Symbol
07F172B
Producer code
5902628070340
Symbol
07F172B
Material
HSS high speed steel
Application
For wood
Type
Double round radius end mill
Series
DEDRA
Working diameter [mm]
34,9
Shank diameter [mm].
8
Working height [mm]
15
