Double Roman Esoteric Router Bit with Bearing
This double Roman esoteric router bit is made from high-speed steel (HSS) with a double-edged blade crafted from carbide. It is designed for working with solid wood, plywood, chipboard, and MDF. The bit includes a guide bearing and features a heat-resistant hammer paint coating. The shank diameter is 6 mm.
Features:
- Material: High-speed steel (HSS)
- Blade Material: Tungsten carbide
- Guide Bearing: Included
- Coating: Hammer paint resistant to high temperatures
- Shank Type: Cylindrical

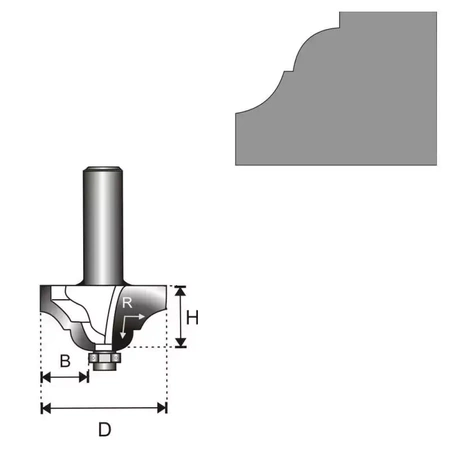

Technical Specifications:
- Cutting Diameter (D): 28.6 mm
- Cutting Height (H): 11.7 mm
- Cutting Depth (B): 9.8 mm
- Cutting Radius (R): 4.1 mm
- Shank Diameter: 6 mm
- Number of Cutting Edges: 2
- Blade Material: Tungsten carbide
Brand
Symbol
07F171A
Producer code
5902628070333
Symbol
07F171A
Material
HSS high speed steel
Application
For wood
Type
Double round radius end mill
Series
DEDRA
Working diameter [mm]
28,6
Shank diameter [mm].
6
Working height [mm]
11,7
