07F162B
5902628070326
Holder
Classic Wood Router Bit with Bearing
This classic wood router bit is crafted from high-speed steel (HSS) with a double-edged blade made from carbide. It is suitable for machining solid wood, plywood, chipboard, and MDF. The bit includes a guide bearing and features a heat-resistant hammer paint coating. The shank diameter is 8 mm.
Features:
- Material: High-speed steel (HSS)
- Blade Material: Tungsten carbide
- Guide Bearing: Included
- Coating: Hammer paint resistant to high temperatures
- Shank Type: Cylindrical

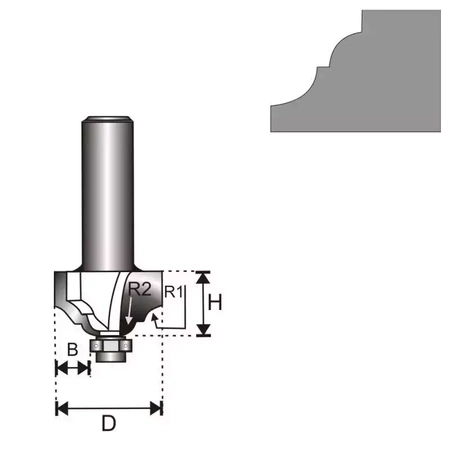

Technical Specifications:
- Cutting Diameter (D): 39.3 mm
- Cutting Height (H): 15.9 mm
- Cutting Depth (B): 13.1 mm
- Cutting Radius (R1/R2): 4.79 mm / 6.35 mm
- Shank Diameter: 8 mm
- Number of Cutting Edges: 2
- Blade Material: Tungsten carbide
Brand
Symbol
07F162B
Producer code
5902628070326
Symbol
07F162B
Material
HSS high speed steel
Application
For wood
Type
Classic bearing mill
Series
DEDRA
Working diameter [mm]
39,3
Shank diameter [mm].
8
Working height [mm]
15,9
