07F151B
5902628070296
Holder
Double Round-Over Wood Router Bit with Bearing
This double round-over router bit is crafted from high-speed steel (HSS) with a double-edged blade made of carbide. It is suitable for working with solid wood, plywood, chipboard, and MDF. The bit features a guide bearing and is coated with heat-resistant hammer paint. The shank diameter is 8 mm.
Features:
- Made from HSS steel
- Designed for wood and wood-based materials
- Blade material: Tungsten carbide
- Includes a guide bearing
- Head coated with hammer paint
- Cylindrical shank

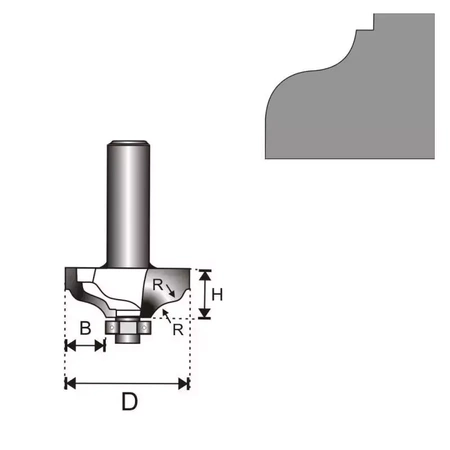

Technical Specifications:
- Cutting Diameter (D): 32 mm
- Cutting Height (H): 12.9 mm
- Cutting Radius (R): 3.96 mm
- Cutting Depth (B): 9.52 mm
- Shank Diameter: 8 mm
- Number of Cutting Edges: 2
- Blade Material: Tungsten carbide
Brand
Symbol
07F151B
Producer code
5902628070296
Symbol
07F151B
Material
HSS high speed steel
Application
For wood
Type
Double rounding shoulder mill, bearing-mounted
Series
DEDRA
Working diameter [mm]
32
Shank diameter [mm].
8
Working height [mm]
12,9
