07F143B
5902628070265
Holder 8 D 34,9 H 15,5 R 11,1 mm
Ornamental Wood Router Bit with Bearing
This ornamental router bit is made from high-speed steel (HSS) and features a double-edged blade constructed from carbide. It is designed for working with solid wood, plywood, chipboard, and MDF. The bit is equipped with a guide bearing and has a head coated with heat-resistant hammer paint. The shank diameter is 8 mm.
Features:
- Made from HSS steel
- Suitable for wood and wood-based materials
- Blade material: Tungsten carbide
- Equipped with a guide bearing
- Head coated with hammer paint
- Cylindrical shank

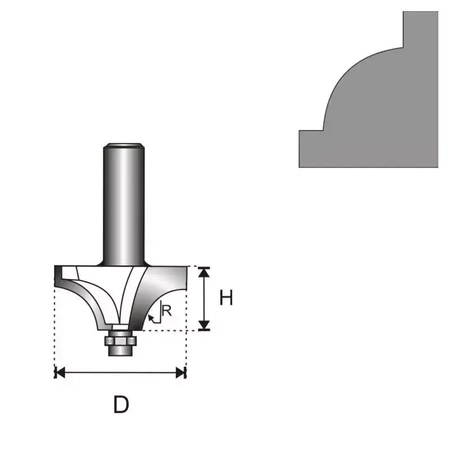

Technical Specifications:
- Cutting Diameter (D): 34.9 mm
- Cutting Height (H): 15.5 mm
- Cutting Radius (R): 11.1 mm
- Shank Diameter: 8 mm
- Number of Cutting Edges: 2
- Blade Material: Tungsten carbide
Brand
Symbol
07F143B
Producer code
5902628070265
Symbol
07F143B
Material
HSS high speed steel
Application
For wood
Type
Ornamental end mill with bearing
Series
DEDRA
Working diameter [mm]
34,9
Shank diameter [mm].
8
Working height [mm]
15,5
