Wood Router Bit for Radius Edges with Bearing
This router bit is designed for creating concave rounded edges in wood. It is made from high-speed steel (HSS) and features a double-edged blade crafted from carbide. The bit is suitable for use with solid wood, plywood, chipboard, and MDF. It includes a guide bearing and has a head coated with heat-resistant hammer paint. The shank diameter is 6 mm.
Features:
- Made from HSS steel
- Designed for wood and wood-based materials
- Blade material: Tungsten carbide
- Equipped with a guide bearing
- Head coated with hammer paint
- Cylindrical shank

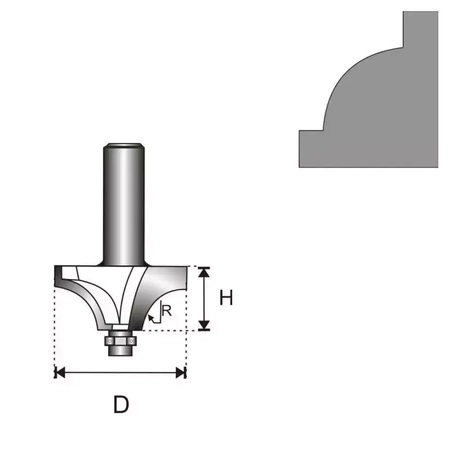

Technical Specifications:
- Cutting Diameter (D): 22.5 mm
- Cutting Height (H): 9 mm
- Cutting Radius (R): 4.76 mm
- Shank Diameter: 6 mm
- Number of Cutting Edges: 2
- Blade Material: Tungsten carbide
Brand
Symbol
07F131A
Producer code
5902628070234
Symbol
07F131A
Material
HSS high speed steel
Application
For wood
Type
Rounding mill concave bearing mill
Series
DEDRA
Working diameter [mm]
22,5
Shank diameter [mm].
6
Working height [mm]
9
