07F122C
5902628070227
Holder 12 D 32 H 6,35 B 9,4 mm
Wood Router Bit "I"
This wood router bit is crafted from high-speed steel (HSS) and features a double-edged blade made of carbide. It is intended for use with solid wood, as well as plywood, chipboard, and MDF. The bit includes a guide bearing and has a head coated with heat-resistant hammer paint. It comes with a 12 mm shank diameter.
Features:
- Made from HSS steel
- Designed for wood and wood-based materials
- Blade material: Tungsten carbide
- Equipped with a guide bearing
- Head coated with hammer paint
- Cylindrical shank

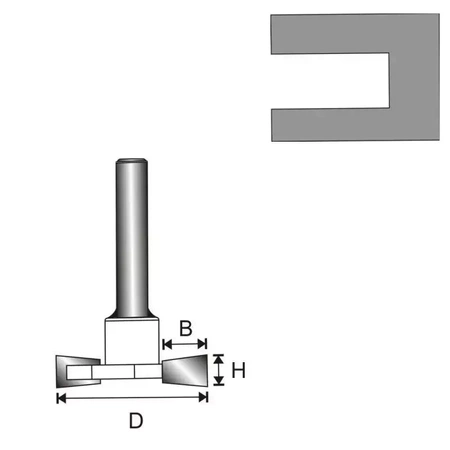

Technical Specifications:
- Cutting Diameter (D): 32 mm
- Cutting Height (H): 6.35 mm
- Cutting Depth (B): 9.4 mm
- Shank Diameter: 12 mm
- Number of Cutting Edges: 2
- Blade Material: Tungsten carbide
Brand
Symbol
07F122C
Producer code
5902628070227
Symbol
07F122C
Material
HSS high speed steel
Application
For wood
Type
Shaped T-groove mill
Series
DEDRA
Working diameter [mm]
32
Shank diameter [mm].
12
Working height [mm]
6,35
