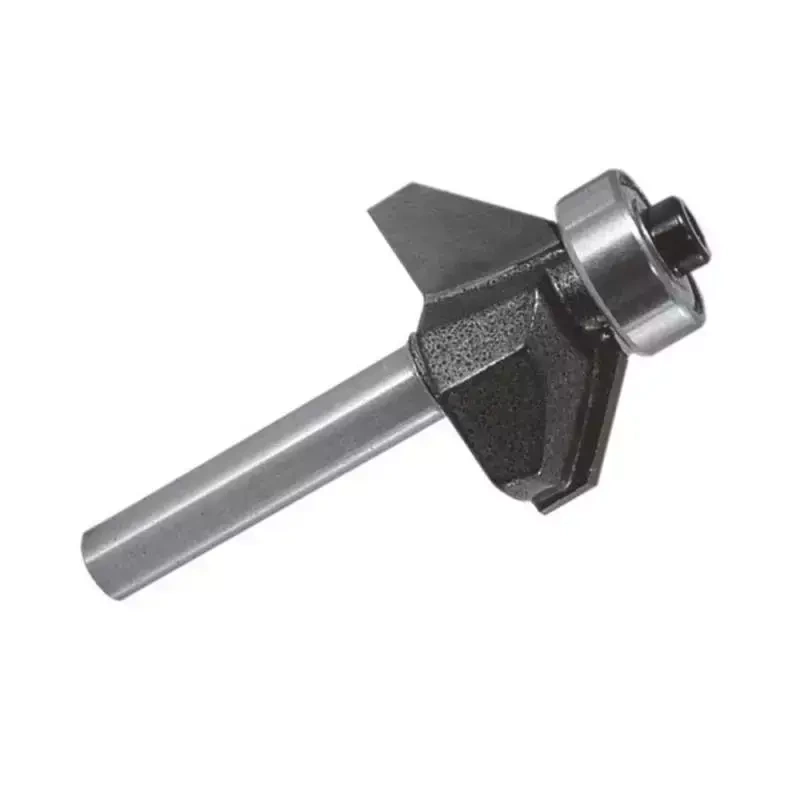

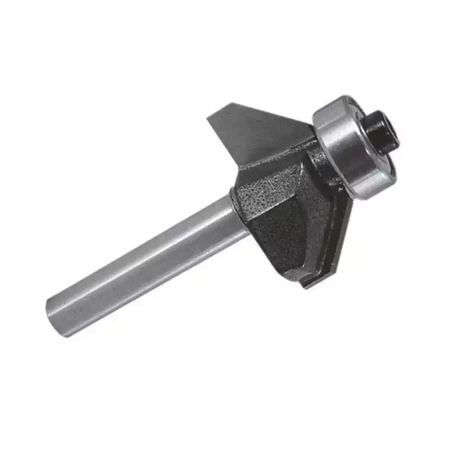

Holder 45°

Chamfer Router Bit with Bearing

This chamfer router bit is made from high-speed steel (HSS) and features a double-edged blade made from carbide. It is designed for machining solid wood as well as plywood, chipboard, and MDF. The bit is equipped with a guide bearing and has a cutting height of 9.52 mm. The head of the bit is coated with hammer paint, which is resistant to high temperatures. The bit has a 6 mm shank diameter.

Features:

• Made from HSS steel
• Designed for wood and wood-based materials
• Blade material: Tungsten carbide
• Equipped with a guide bearing
• Head coated with hammer paint
• Cylindrical shank

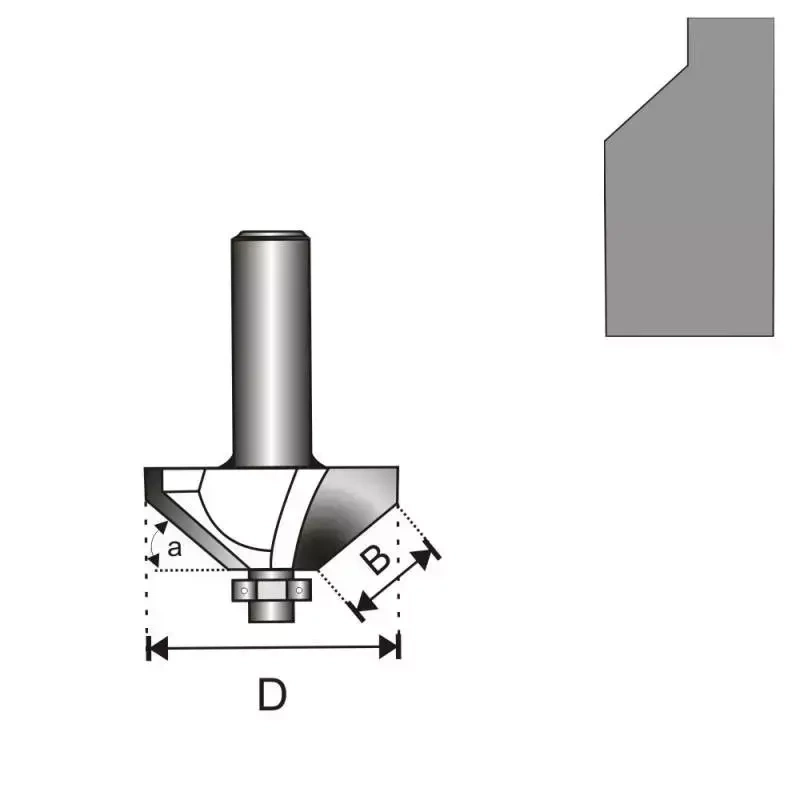

Technical Specifications:

• Cutting Diameter (D): 26.6 mm
• Cutting Height (H): 9.52 mm
• Bevel Angle (a): 45°
• Shank Diameter: 6 mm
• Number of Cutting Edges: 2
• Blade Material: Tungsten carbide
