WPQ16T00
5902628982995

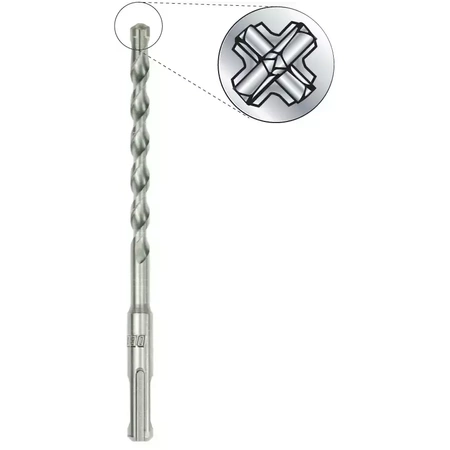

Concrete drill SDS PLUS QUATRO 16,0x1000/940
The size shown in the photo is an example. For the actual size, please refer to the product description.
Quatro concrete drill bit with SDS PLUS (SDS+) chuck. Designed for use with all hammer drills with SDS PLUS (SDS+) chuck for drilling concrete, brick and other building materials. The drill is characterised by a double widia insert, which is embedded deeply and soldered into the drill body. The use of a double insert gives the drill bit the ability to pass through encountered reinforcement more efficiently when drilling in concrete, simultaneously minimizing the risk of jamming. The SDS Plus type chuck used improves and speeds up the work and replacement of the drill bit.
Technical data:
- Diameter of drill bit: 16 mm
- Total drill length: 1000 mm
- Drill workinglength: 940 mm
- Drill holder type: SDS PLUS (SDS+)
- Drill type: Quatro
Brand
Symbol
WPQ16T00
Producer code
5902628982995
Symbol
WPQ16T00
Drill bit length [mm]
1000/940
Drill tip angle [°].
135
Number included
1
Material
Tool steel + HM
Application
Concrete, brick, stone, cellular concrete
Type
Drill Bit for Concrete Quatro SDS+
Series
DEDRA
Drill bit diameter [mm].
16
Handle type
SDS+
Drill type
Drill for concrete
